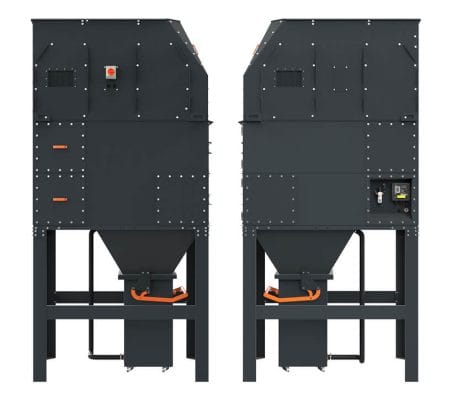

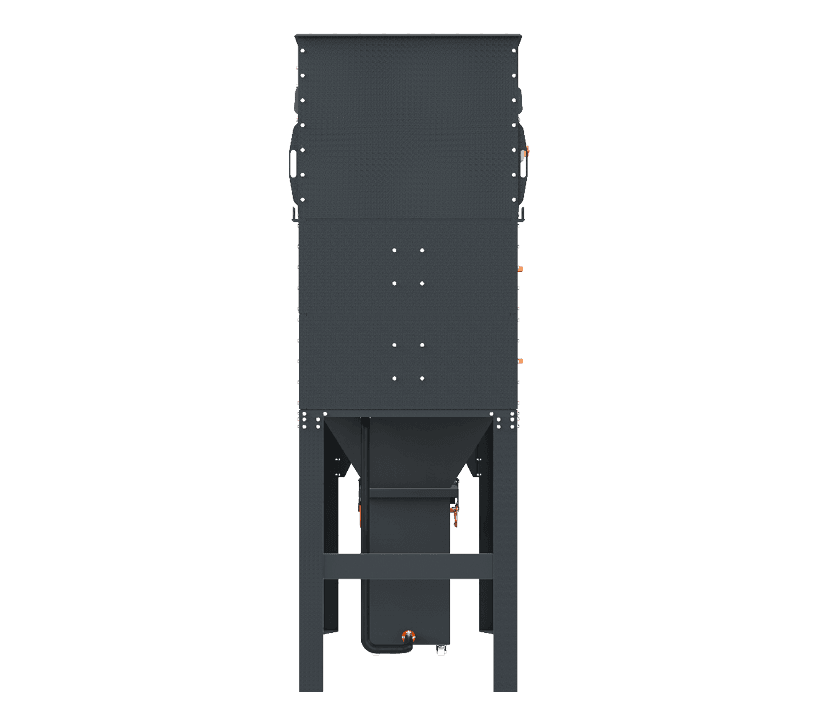

Reverse Pulse Filter – Large Capacity with Integrated Top Mounted Fan – Horizontal
The clean on demand, particulate matter filtration unit.
Our range of reverse pulse filters are air filtration systems designed to remove dust and particulate matter from industrial air streams. It employs a reverse pulse cleaning mechanism, firing pulses of compressed air down the filter cartridges to dislodge and collect accumulated contaminants – with the addition of the built in top loaded fan and extended legs creates a convenient all-in-one solution with extra capacity for waste.
Model
Want to know more?
Request PricingJump to:
Jump to:
Built in Fan
Integrating our F-series Fans with our Reverse Pulse Filters creates an all in one dust and fume filtration solution that is ready to go.
Extended legs
We have modified our original reverse pulse filter model to be supplied with extended legs - meaning more waste can be collected - saving time on multiple trips.
Continuous Operation
iXtract Horizontal Reverse Pulse Filters are designed for continuous operation, ensuring that production processes can run without interruption. The reverse pulse cleaning system helps maintain filter performance by periodically dislodging and removing accumulated dust, extending the filter's lifespan and reducing downtime.
High Filtration Efficiency
Our range of filters offer excellent filtration efficiency, and are particularly effective at removing submicron particles, ensuring a clean and safe working environment. This high efficiency results in improved indoor air quality and reduced environmental impact.
Collection Bin
Heavy duty collection bin with castors for easy waste disposal.
Control Panel
Recessed panel which provides easy, safe and convenient access to the pneumatic cleaning controls.
Filters
Easily replaceable filter cartridges – multiple filters available for an array of processes.
Lifting Eyes
Built-in lifting eyes to assist with installation and positioning.
Powder Coated Durable Paint
All of our units are powder coated making it incredibly durable and long lasting.
Filter Access Door
Easy access doors for regular filter replacement and maintenance.
Integrated Fan
Integrated iXtract F-Series centrifugal fan.
Technical Specifications
Model
O&M Manual
Access the O&M Manual for this product in our customer area – iXtract hub.
Accessories
Explore our range of accessories available for the horizontal reverse pulse filters
Nano Fibre Celulose Filter – Horizontal
Showing 6 of 16 products
Reverse Pulse Filter
How Does a Reverse Pulse Filter Work
Our Horizontal Reverse Pulse Filter units consist of a series of filter cartridges arranged horizontally within the main housing. Contaminated air is drawn through the filters where particles are captured on the outer surface. As dust accumulates, the filter unit measures the pressure differential between the clean side of the filter and the dirty side. Once a programmed set point is reached, the filter unit then initiates a controlled blast of pneumatic airflow down the centre of each filter individually and sequentially. This sudden burst of air dislodges the accumulated dust, causing it to fall downwards into the collection bin below. All this is carried out automatically without operator interaction.
Discover More About the RPF-H-2-EXT-FAN-3-T
Model
Request Pricing

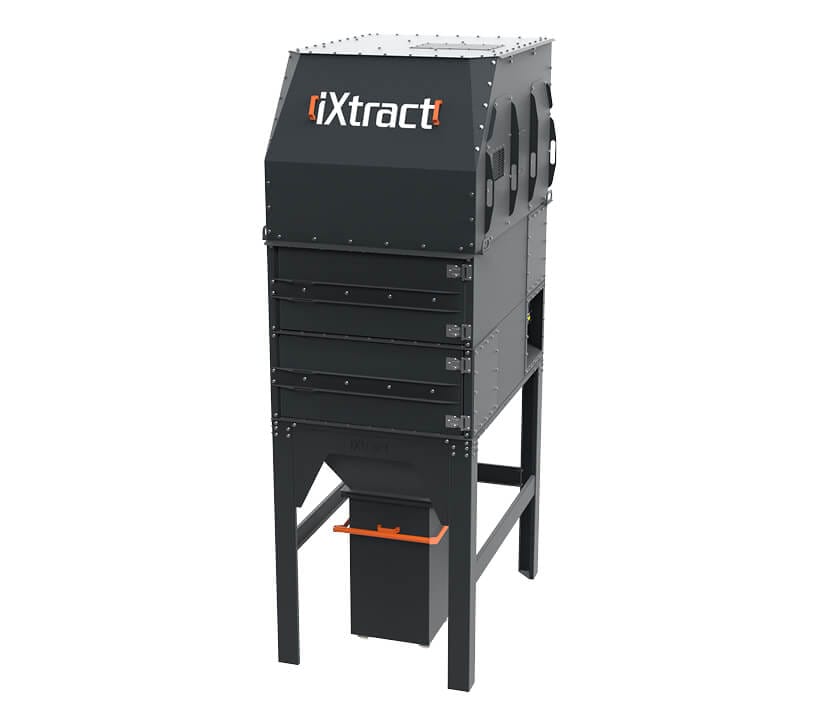

Large Capacity Reverse Pulse Filter with Integrated Top Mounted Fan
All units are designed to be modular and have the ability to fix together easily. iXtract Reverse Pulse Filters come with one top module as standard. This top module can be made available with an integrated top fan dependent on explosion relief requirements. The middle module of the iXtract reverse pulse filters is made up from cartridge filters and can be multiplied from 2–6 filters per unit in total. The unit always comes with a hopper assembly. This assembly can feature an integrated fan and includes an extended collection bin for large volumes.
