Reverse Pulse Filter – Horizontal

Solution for the filtration of dry particles such as welding fumes and grinding dust.

The iXtract reverse pulse filter is an air filtration system designed to remove dust and particulate matter from industrial processes. It employs a reverse pulse cleaning mechanism, firing pulses of compressed air down the filter cartridges to dislodge and collect accumulated contaminants, ensuring continuous and efficient operation.

Model

Want to know more?

Request Pricing
Modular

Modular Configuration

The reverse pulse filters can be fully customized and scalable to meet specific application requirements. We can also offer integrated fans and a variety of collection bins including options like rotary valves for larger volumes.

Continually Operating

Continuous Operation

iXtract Horizontal Reverse Pulse Filters are designed for continuous operation, ensuring that production processes can run without interruption. The reverse pulse cleaning system helps maintain filter performance by periodically dislodging and removing accumulated dust, extending the filter's lifespan and reducing downtime.

High Filtration Efficiency

High Filtration Efficiency

Our range of filters offer excellent filtration efficiency, and are particularly effective at removing submicron particles, ensuring a clean and safe working environment. This high efficiency results in improved indoor air quality and reduced environmental impact.

Compact Footprint

Compact Footprint

Horizontal Reverse Pulse Filters are designed with a compact and space-efficient configuration. Their horizontal orientation allows for installation in limited space, making them suitable for industries where space is at a premium. This space-saving design can also reduce installation times.

Collection Bin

Collection Bin

Heavy duty collection bin with castors for easy waste disposal.

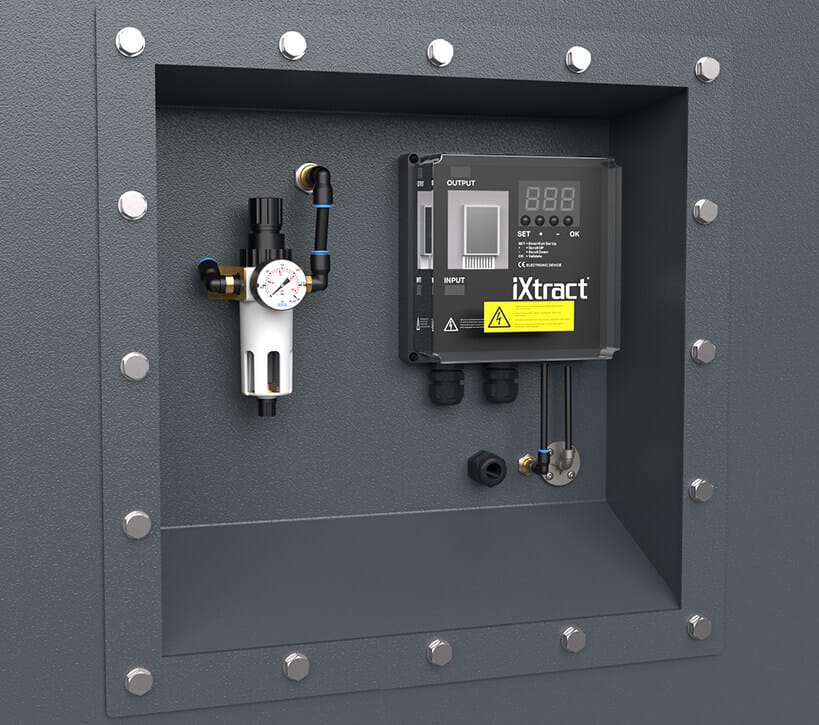

Recessed Control Panel

Control Panel

Recessed panel which provides easy, safe and convenient access to the pneumatic cleaning controls.

Filters

Filters

Easily replaceable filter cartridges.

Filter Modules

Filter Modules

Lifting Brackets

Lifting Eyes

Built-in lifting eyes to assist with installation positioning.

Hopper

Hopper

XXXXXXXXX

Powder Coated Durable Paint

Powder Coated Durable Paint

All of our units are powder coated making it incredibly durable and long lasting.

3mm Steel

3mm Steel

XXXXXXXXX

Time-Controlled Diaphragm Valve

Time-Controlled Diaphragm Valve

XXXXXXXX

Filter Access Door

Easy access doors for regular filter replacement and maintenance.

Bin Bag

Bin Bag Add-on Accessory

XXXXXX

Technical Specifications

Model

O&M Manual

Access the O&M Manual for this product in our customer area – iXtract hub.

Accessories

Explore our range of accessories available for the horizontal reverse pulse filters

Rotary Valve

Easily separate larger dust particles

Polyester Filter

Polyester high quality filter for reverse pulse filters

Polyester Antistatic Filter

High Quality Dust Filter

Nano Fibre Celulose Filter

Nano Fibre Celulose Filter for reverse pulse filters

PTFE Filter

Teflon coated filter for reverse pulse filters

Inlet/Outlet Connection

Easy connect to a circular ducting system

Explosion Flame Catcher Interior

Reverse Pulse Filter - Accessory - RPF-H-EXS
Internal Explosion flame catcher for reverse pulse filters

Explosion Panel – 2-4 Bank

Explosion relief panel for 2 to 4 bank reverse pulse filter

Explosion Panel – 6-10 bank

Explosion relief panel for a 6-10 bank reverse pulse filter

Bin Packers

Packers for bin - 3 mm

Main Unit Packers

Main Unit Packers

200L Extended Bin

Reverse Pulse Filter - Horizontal - Accessory - RPF-BIN
Large capacity bin - must be used with extended leg version of the reverse pulse filters

90° Square to Square

Reverse Pulse Filter - Horizontal - Accessory - RPF-H-90DEG-STR
90 degree bend to square flange for changing direction of airflow for a reverse pulse filter system

Showing 6 of 13 products

Reverse Pulse Filter

How Does a Reverse Pulse Filter Work

Reverse Pulse Filter units consist of a series of filter cartridges arranged horizontally within the main housing. Contaminated air is drawn on to the external of the filter elements where particles are captured on the external surface. As dust accumulates, the filter unit measures the pressure resistance between the clean side of the filter and the dirty side. The filter unit then periodically initiates a controlled blast of pneumatic airflow down the centre of each filter individually and sequentially. This sudden burst of air dislodges the accumulated dust, causing it to fall downwards into a collection hopper below. All this is carried out automatically without operator interaction
