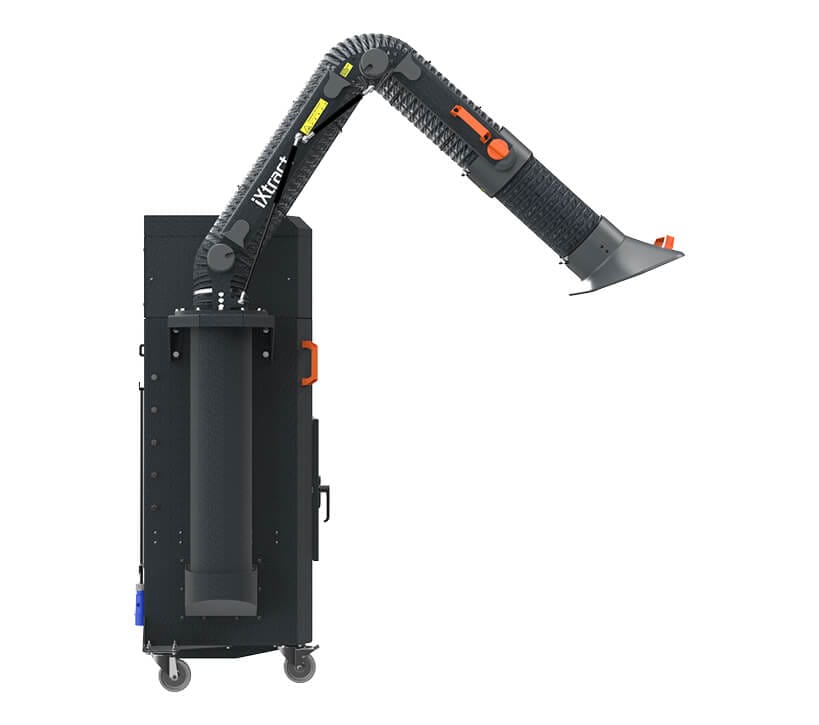

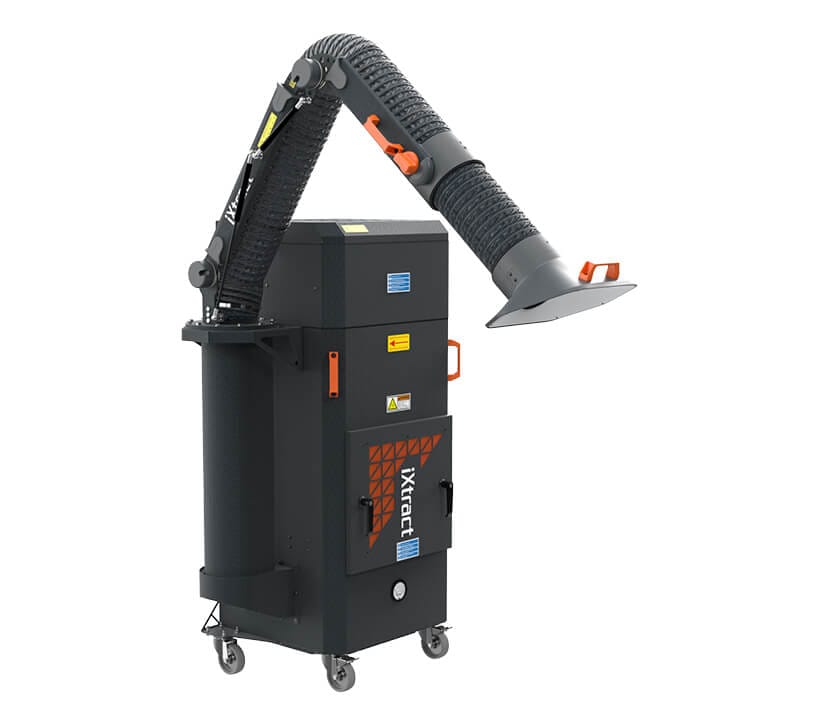

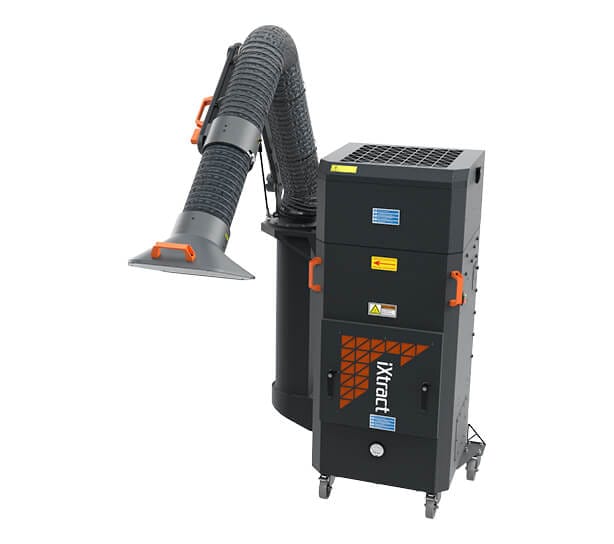

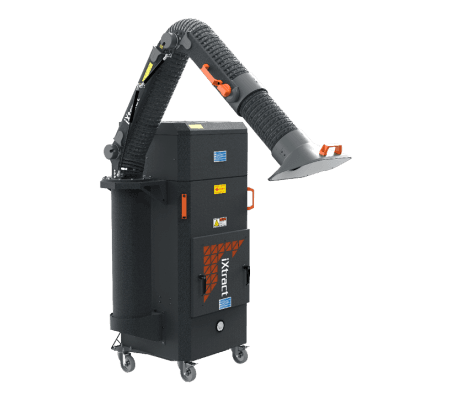

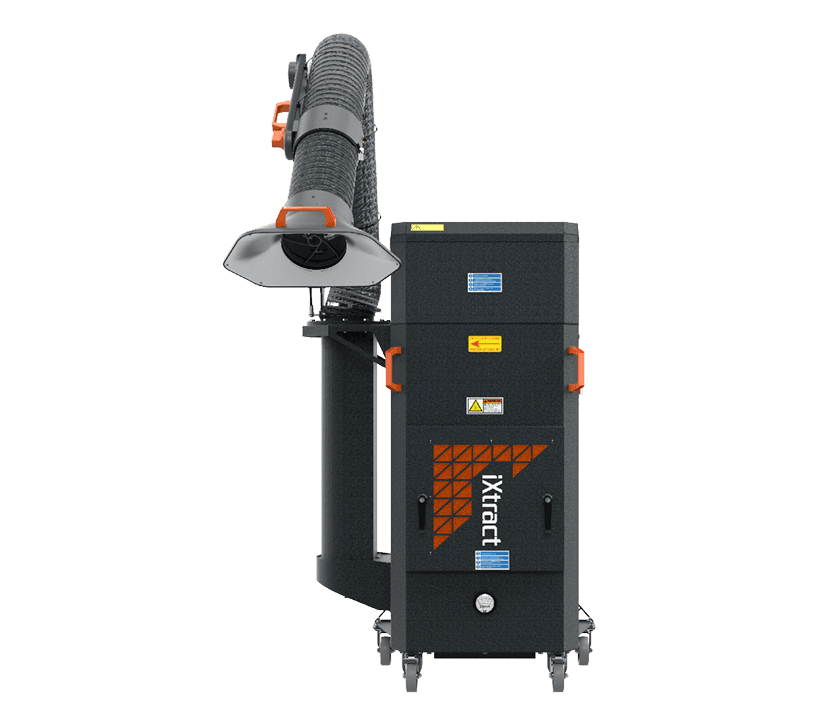

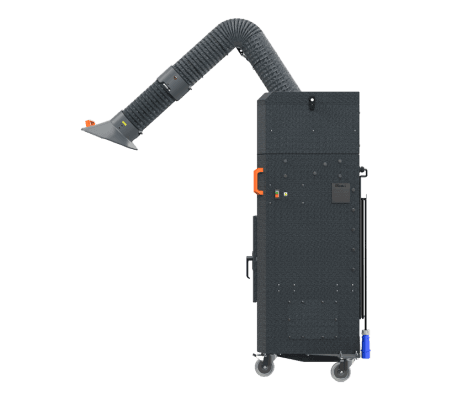

Compact Mobile Oil Mist Filter Unit With Extraction Arm
Designed to contain metalworking fluids and mist.
iXtract’s range of Compact Oil Mist Filters are the perfect LEV solution for those looking to filter hazardous mists and fumes that can often be found in metal working processes.
The integrated HEPA filter has a 99.97% efficiency in filtering 0.3 microns particles.
The integrated extraction arm adds extra flexibility for tasks.
Model
Want to know more?
Request PricingJump to:
Jump to:
Easy to Fit Filter
We have designed our Compact Oil Mist Filter systems so that our long lasting and effective HEPA and M6 grade filters can be easily and safely replaced.

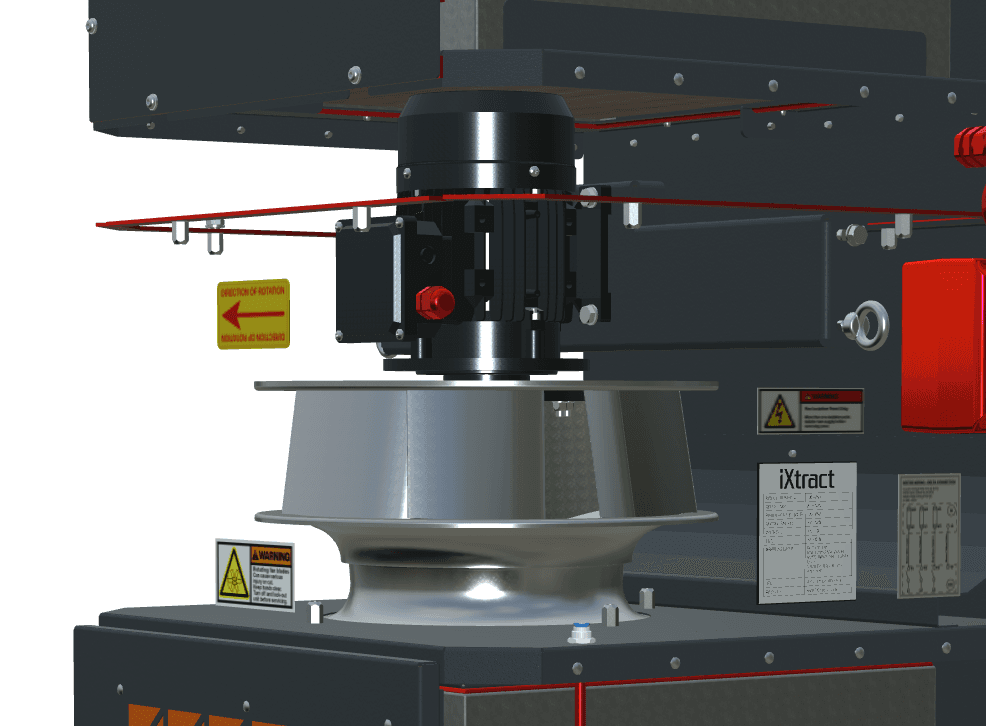

Built in Fan
A 0.75kW F-series Fan is integrated with these Compact Mobile Oil Mist Filter units, this creates an all-in-one mist and fumes capture solution that is ready to go.
Easy to Position
Our Compact Mobile Oil Mist Filter units features built in castors for effortless manoeuvring around busy workshops.
Compact Unit
Their slim dimensions allows for installation in confined spaces, making them suitable for industries where space is limited.

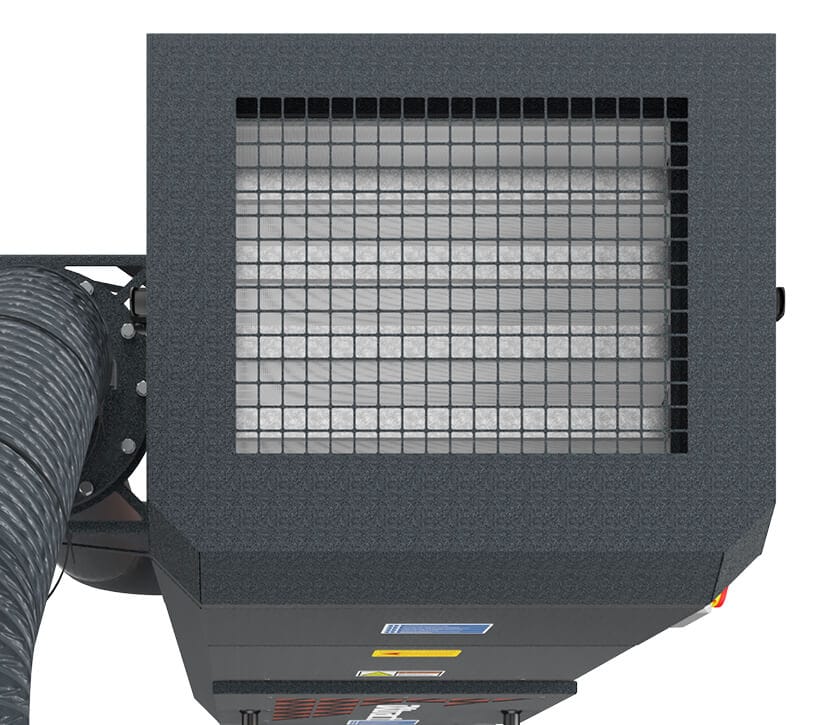

Outlet
Clean air outlet.

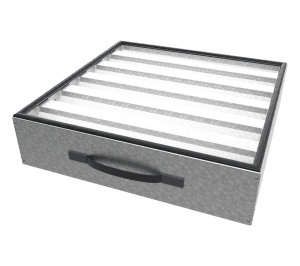

HEPA Filter
99.97% efficiency in filtering particles as small as 0.3 microns.

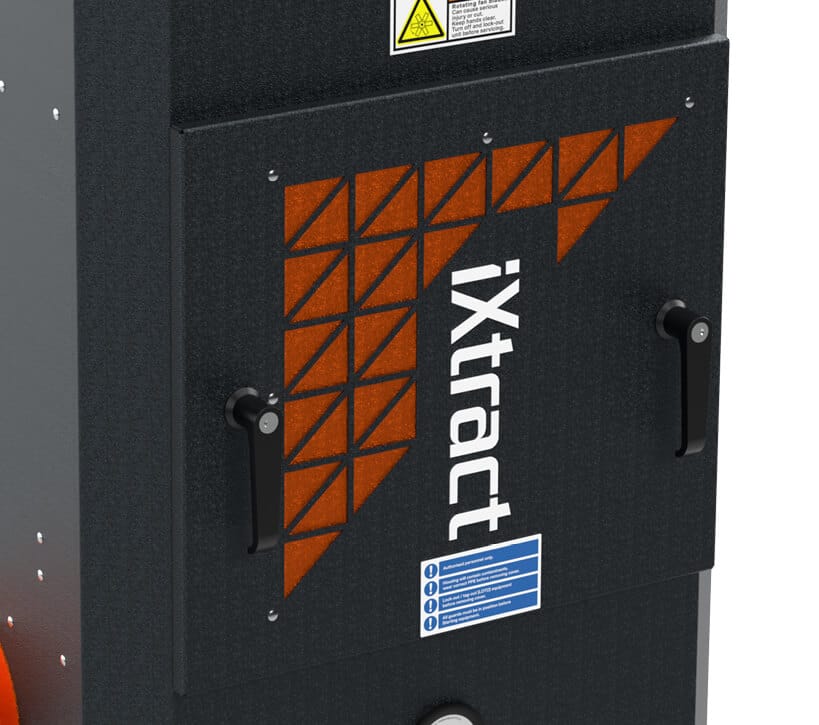

Filter Access Door
Easy access doors for easy filter replacement and general maintenance.
5L Oil Collection Tank
Two hole oil tank to store waste oil collected from the Mobile Oil Mist Filter units.
Pressure Indicators
Pressure differential gauge to monitor filter condition.
Mesh Pre Filter
Washable mesh filter to separate larger particles from the air stream.
Built in Fan
A 0.75kW F-series Fan is integrated with these Compact Mobile Oil Mist Filter units, this creates an all-in-one mist and fumes capture solution that is ready to go.

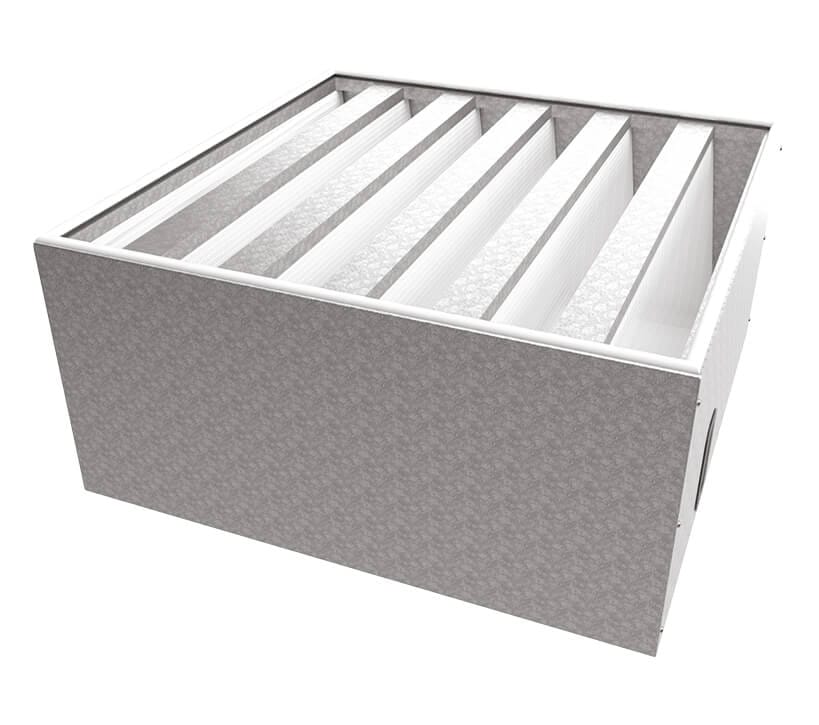

Primary Filter
Features an M6 coalescing cassette filter.

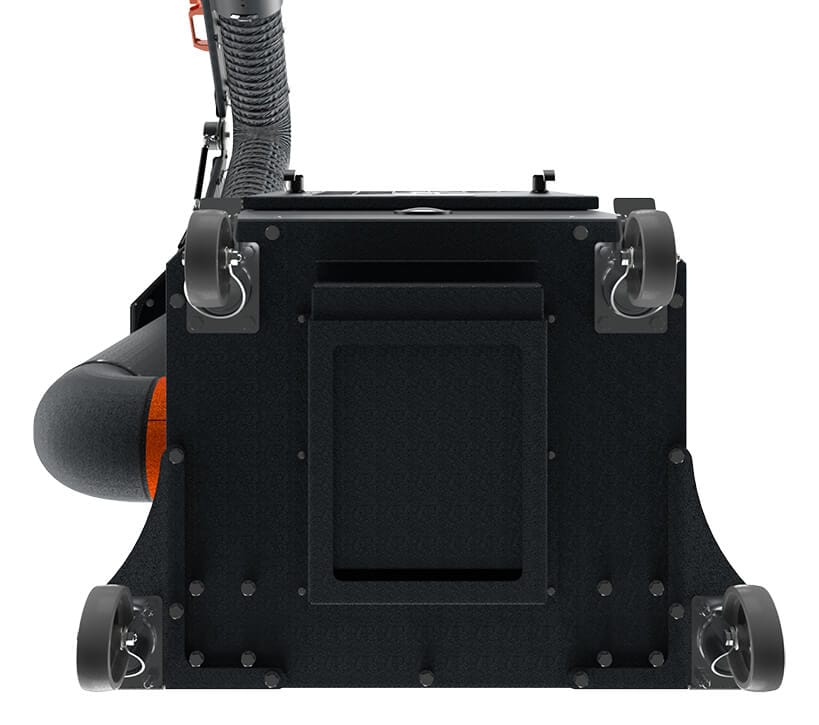

Mobile
Heavy duty castors with brakes available so the filter can be easily moved around a busy working environment.

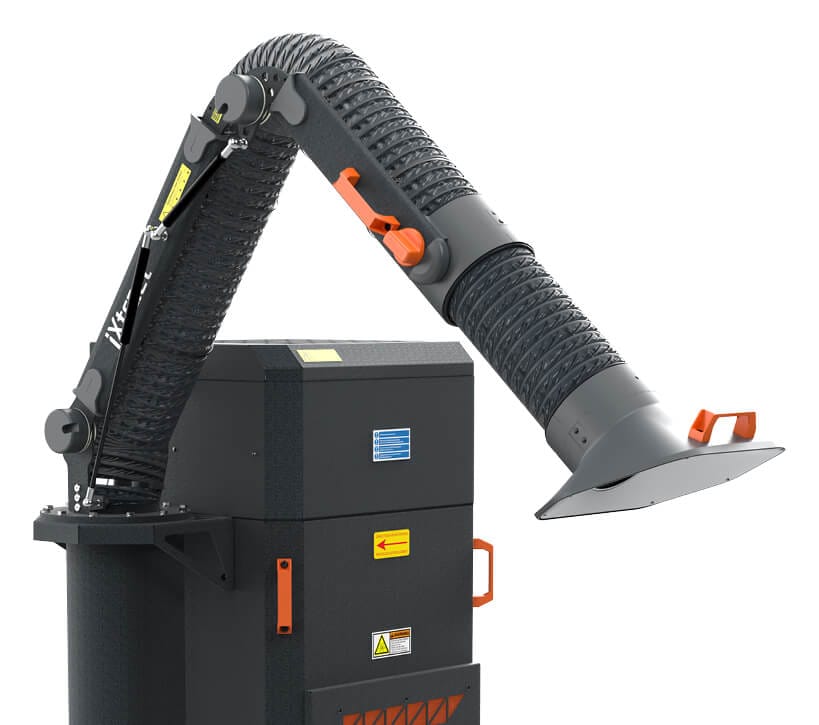

Lightweight & Flexible Arm
Lightweight extraction arm with a durable aluminium frame. The flexibility of the arm ensures the hood can be positioned at the source, enhancing safety.

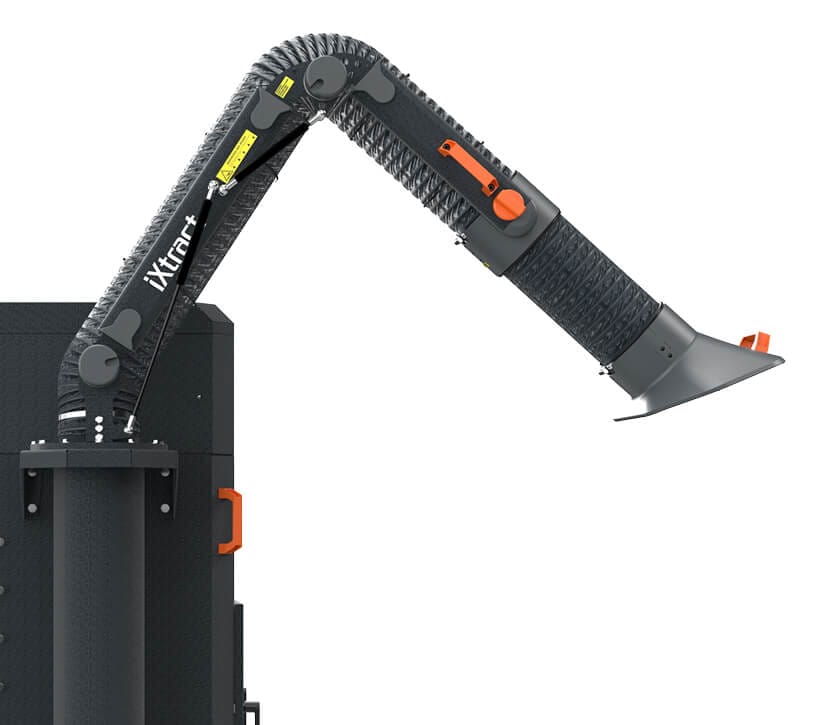

External Support Arm
External supporting joints provide better airflow efficiency, easier maintenance, enhanced durability, and improved flexibility.
Damper
Airflow shut off damper to isolate when not in use, with 10 degree increments for increased accuracy.
Extraction Hood
Our aluminium and plastic hoods are designed for optimal extraction efficiency. These are interchangeable between hood types, see accessories.
Technical Specifications
Model
O&M Manual
Access the O&M Manual for this product in our customer area – iXtract hub.
Accessories
Explore our range of accessories available for our Compact Mobile Oil Mist Filter Unit With Extraction Arm.
Showing 6 of 9 products
Overview
Our range of Compact Oil Mist Filters have been designed to effectively capture and remove oil mists and other metalworking fluids from industrial environments, helping to keep work places and employees safe from the dangers of airborne oil mist.
The integrated fan eliminates the need for an external fan, making it a truly all-in-one solution for removing oil mist.
Operation
Dirty contaminated air enters the unit via the extraction arm.
The base consists of an integrated primary baffle, removable washable mesh filter, all of which disperse the air and prevent larger oil particles from advancing.
The coalesced, condensed oil droplets collect in the base and are either discharged through a connected drain or collected in the optional oil canister.
The air then passes through a series of filters, each removing and decreasing particle sizes of contaminant, in an upward direction with the clean air being expelled from the top of the unit.
