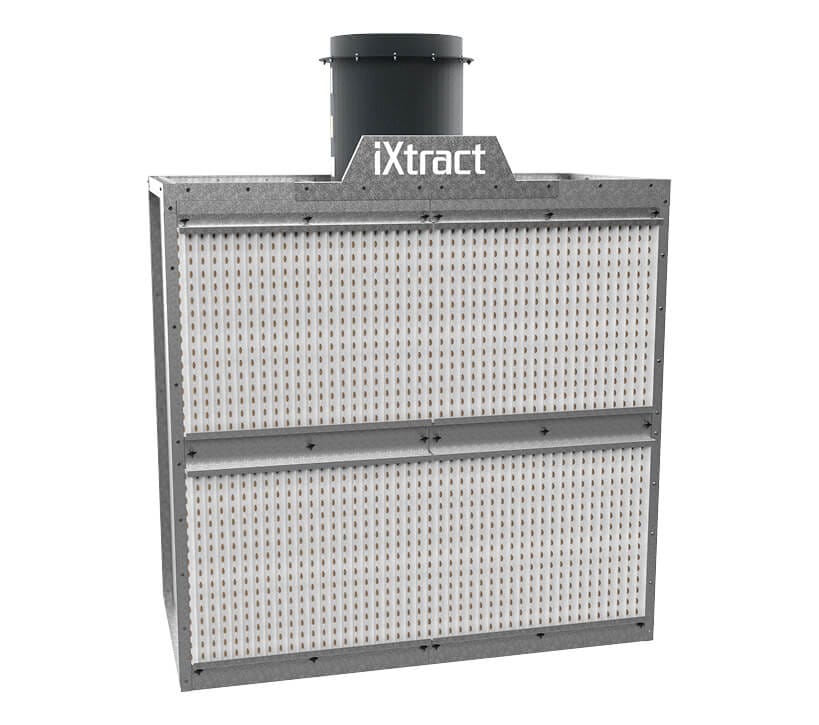

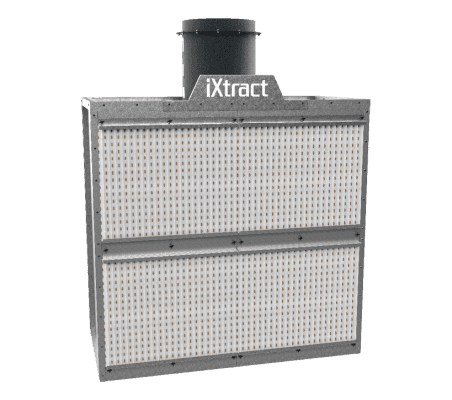

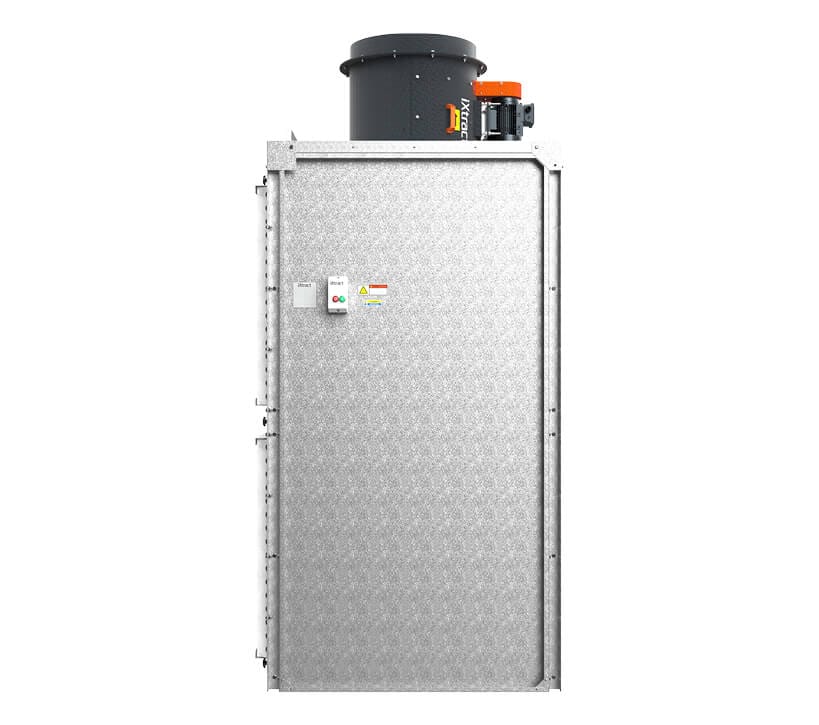

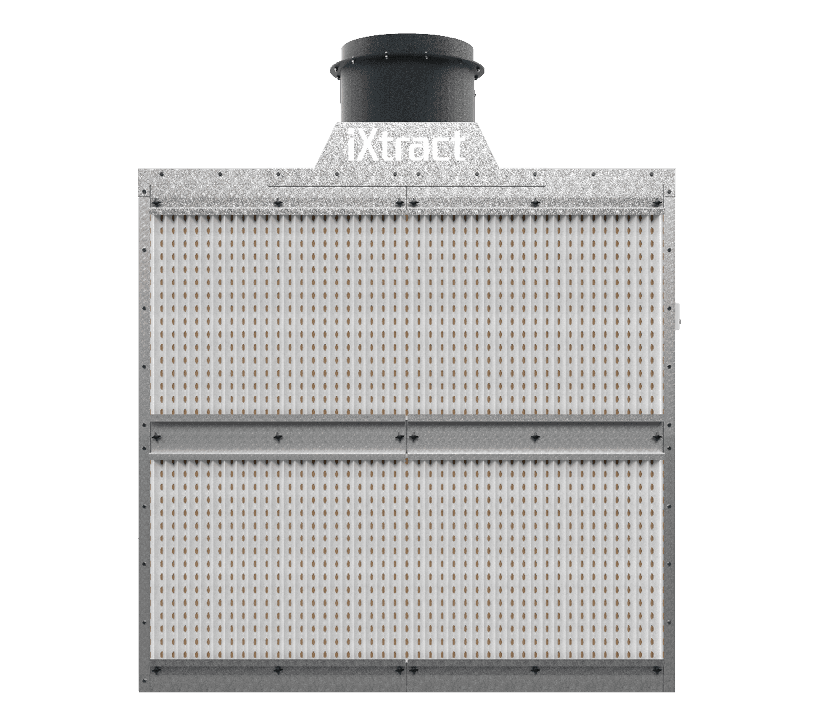

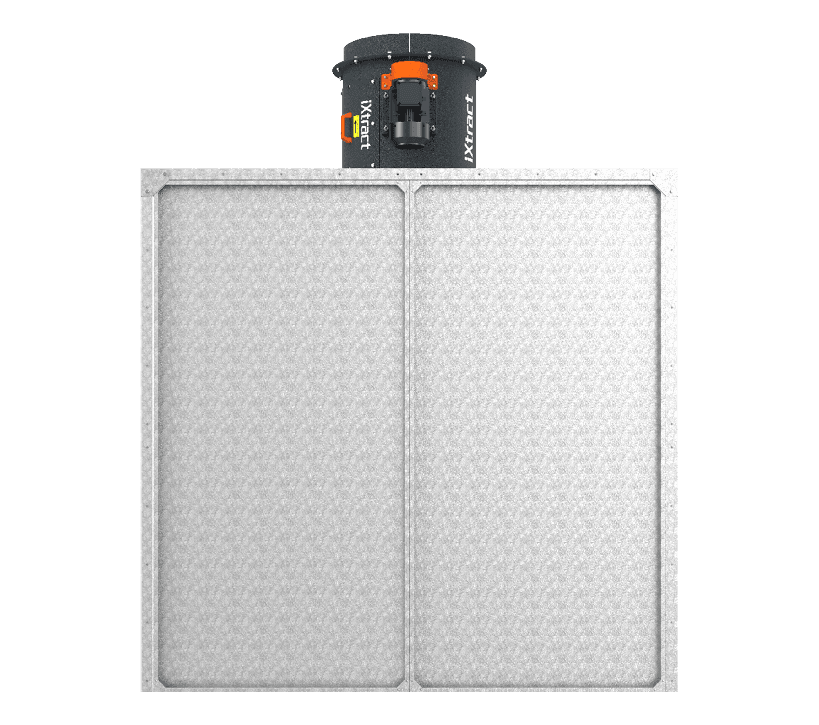

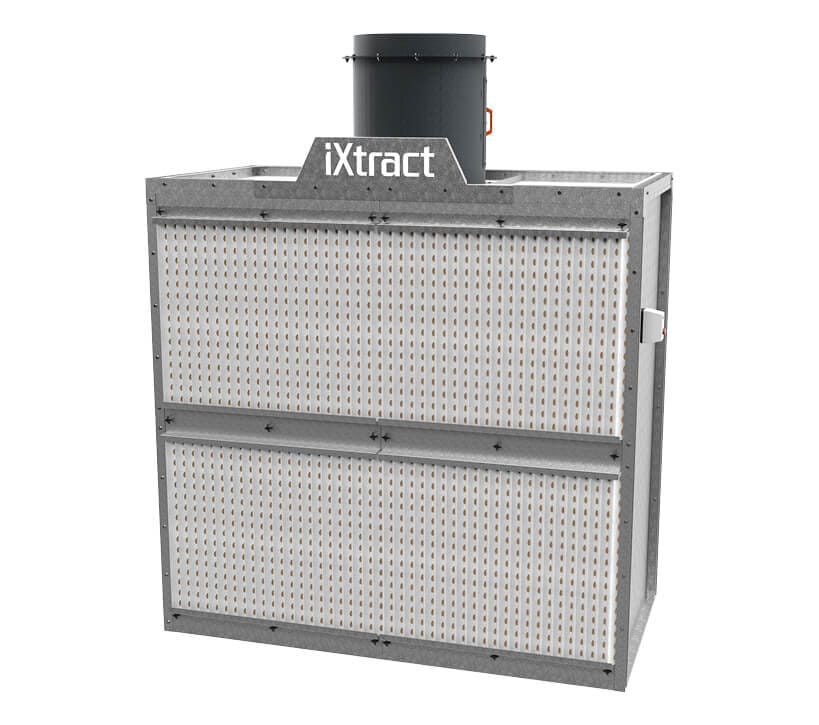

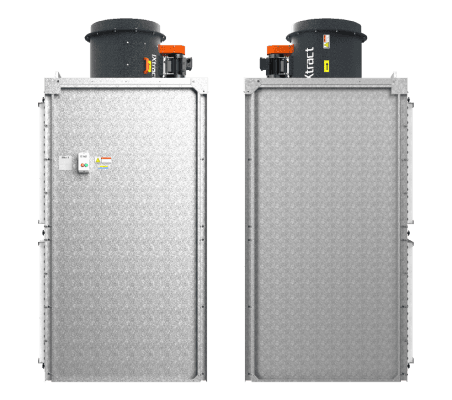

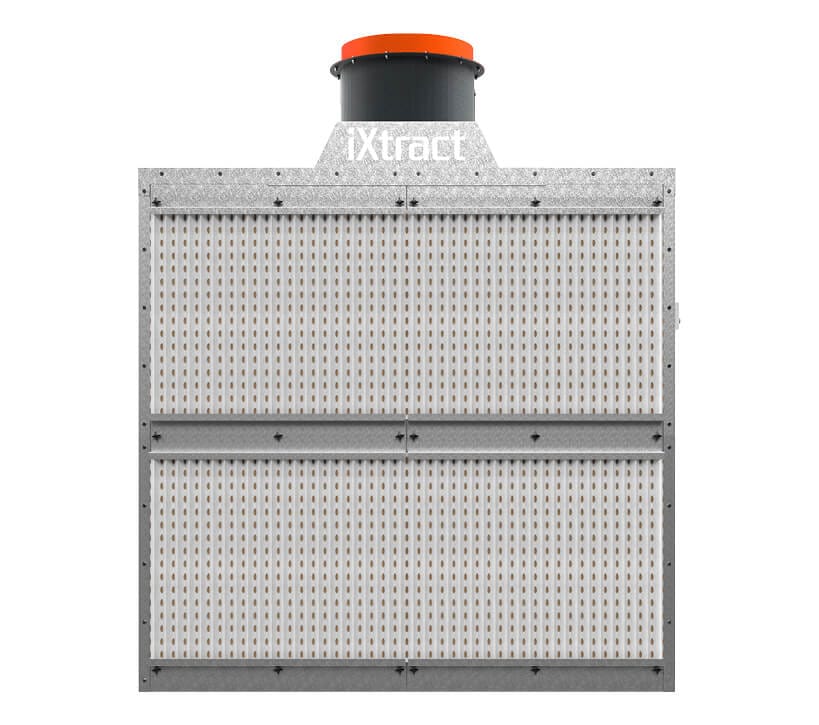

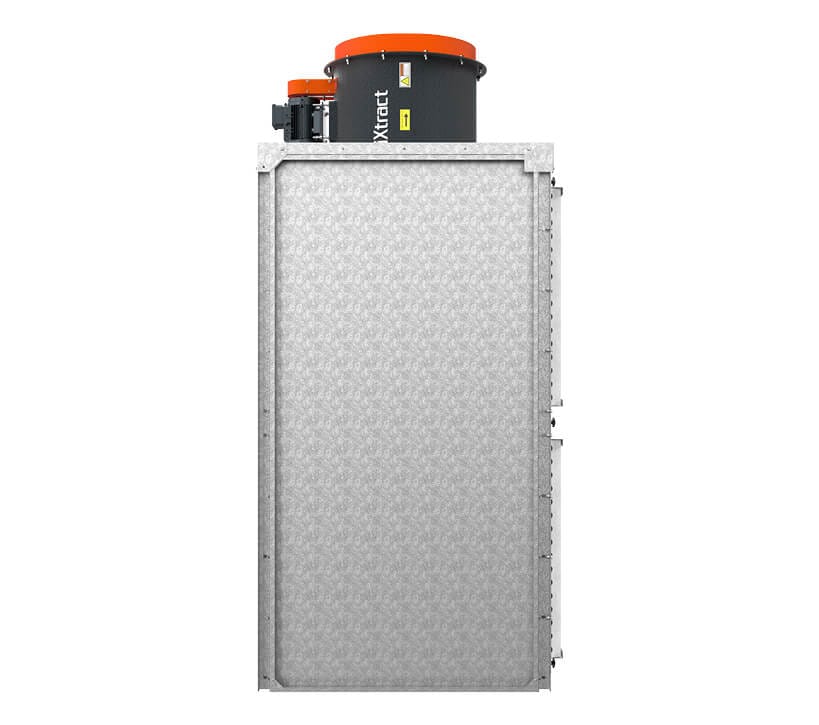

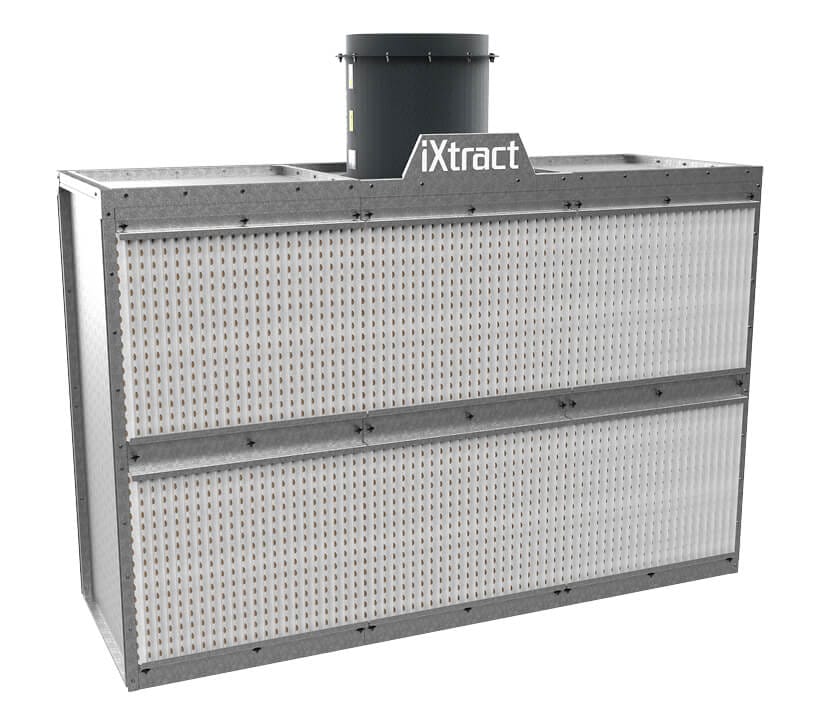

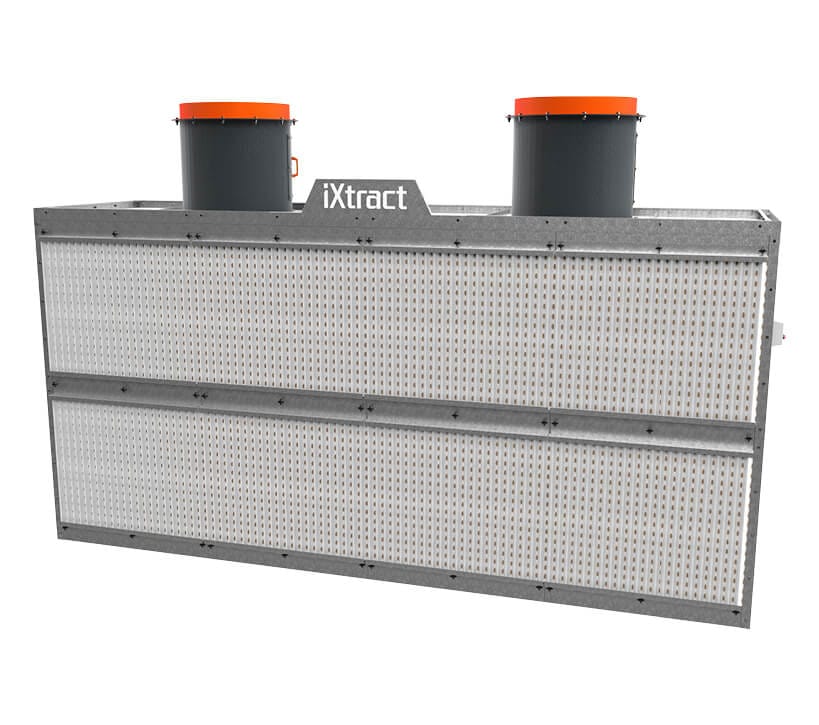

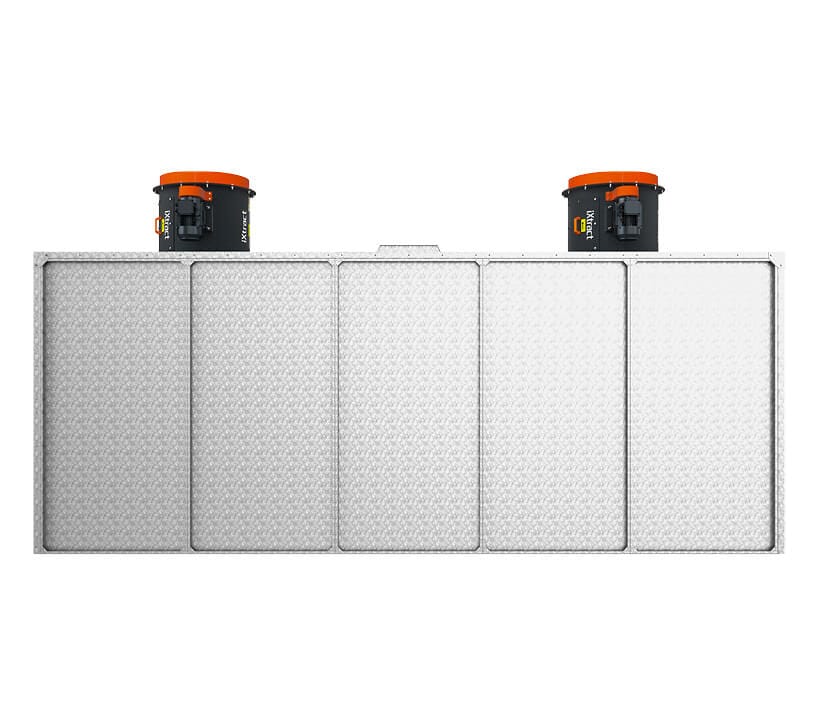

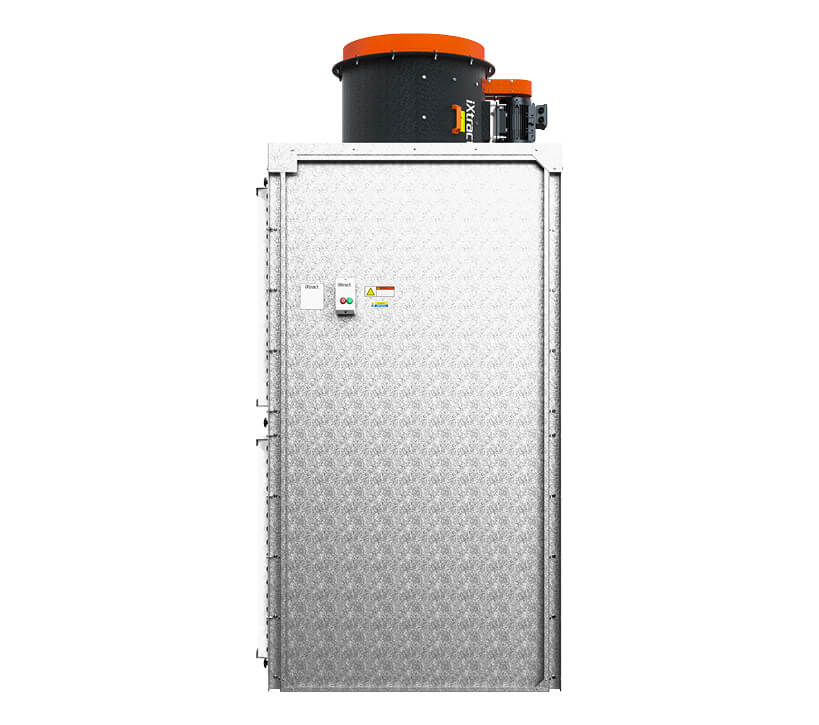

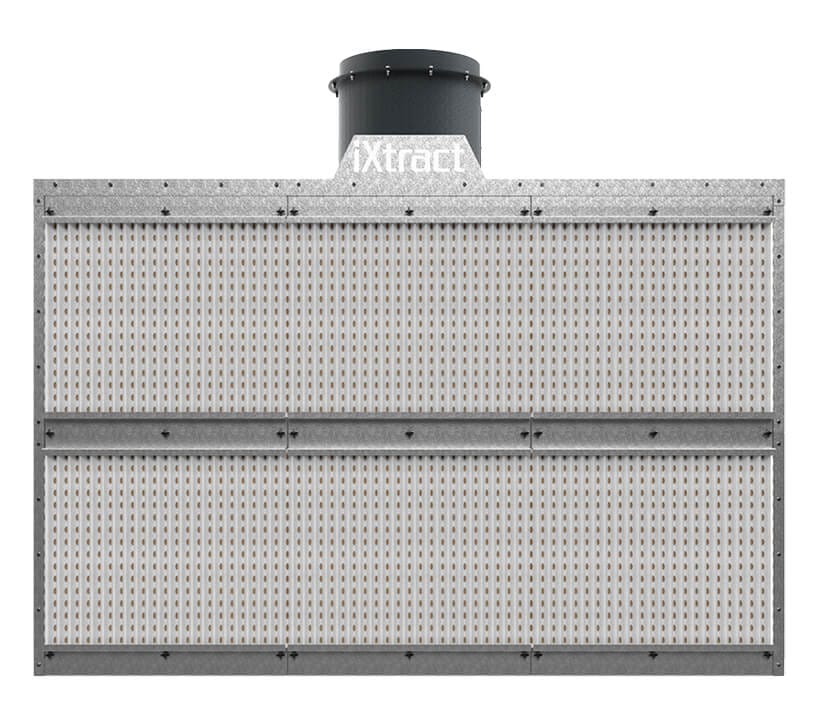

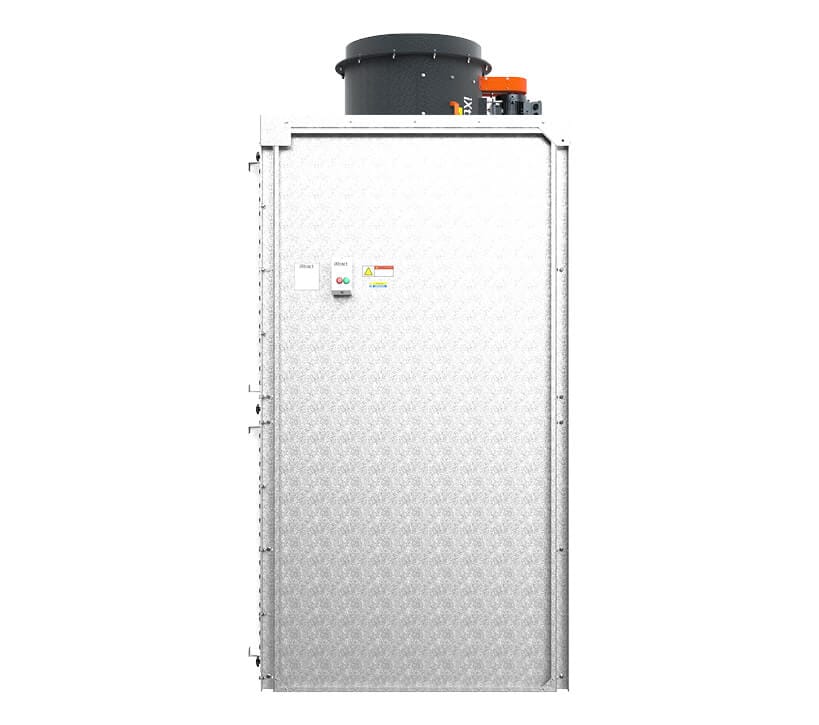

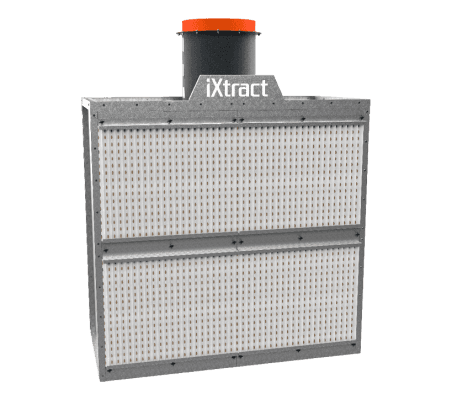

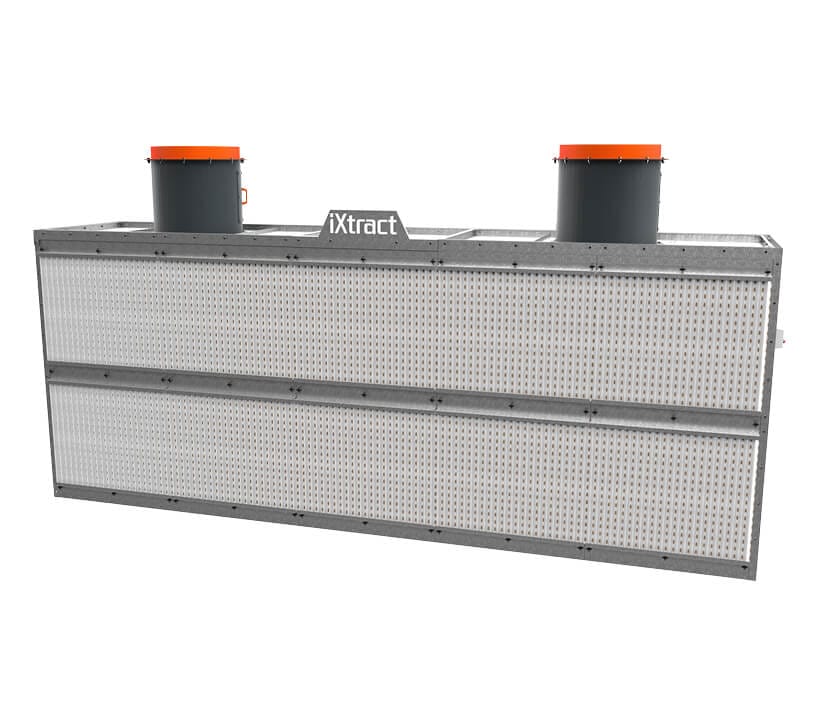

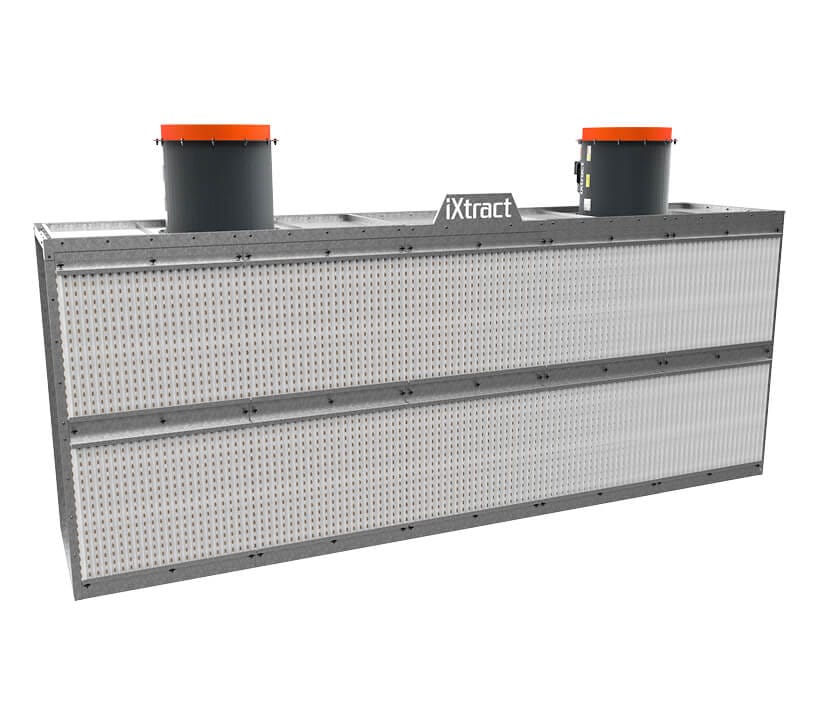

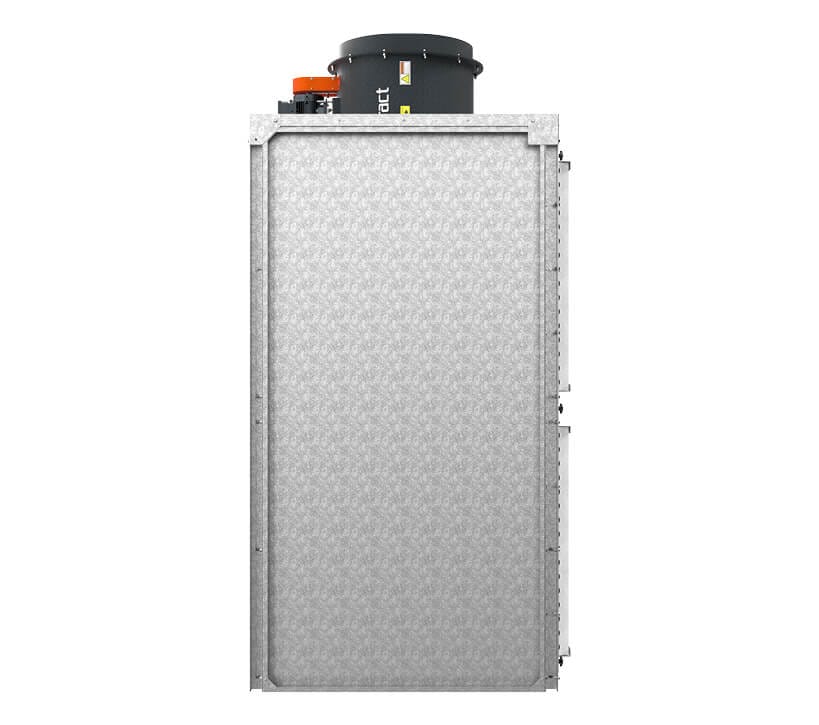

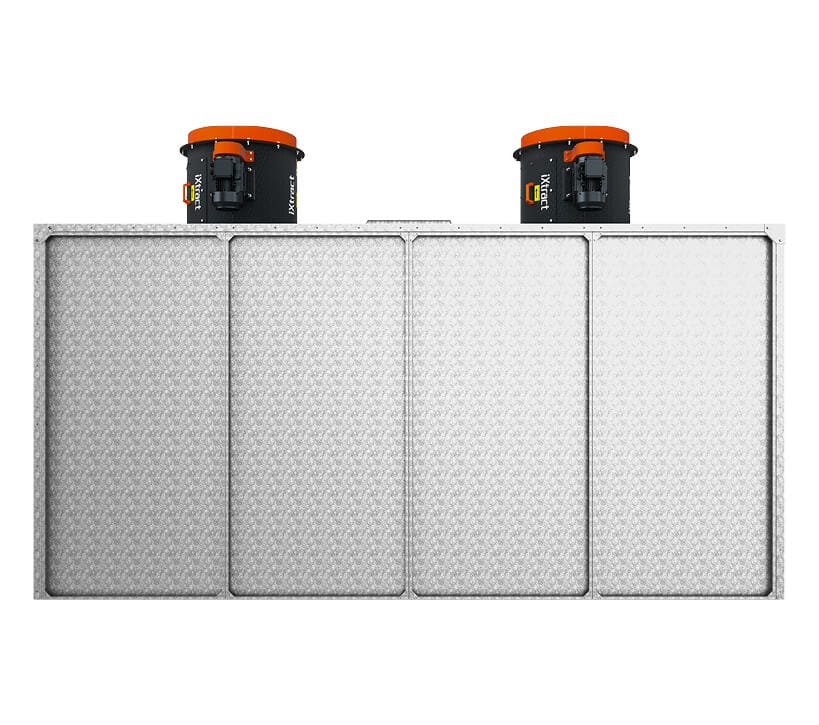

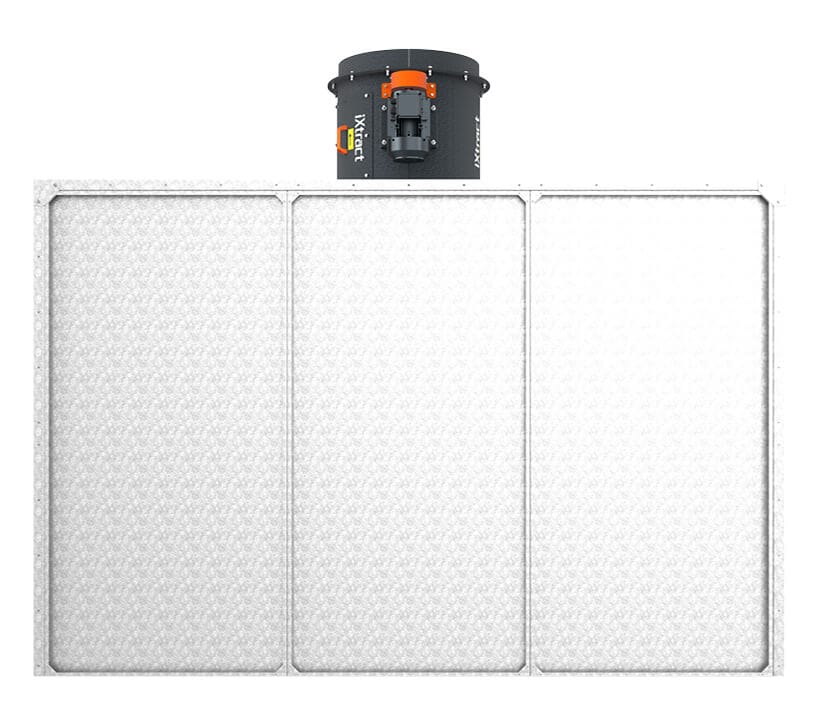

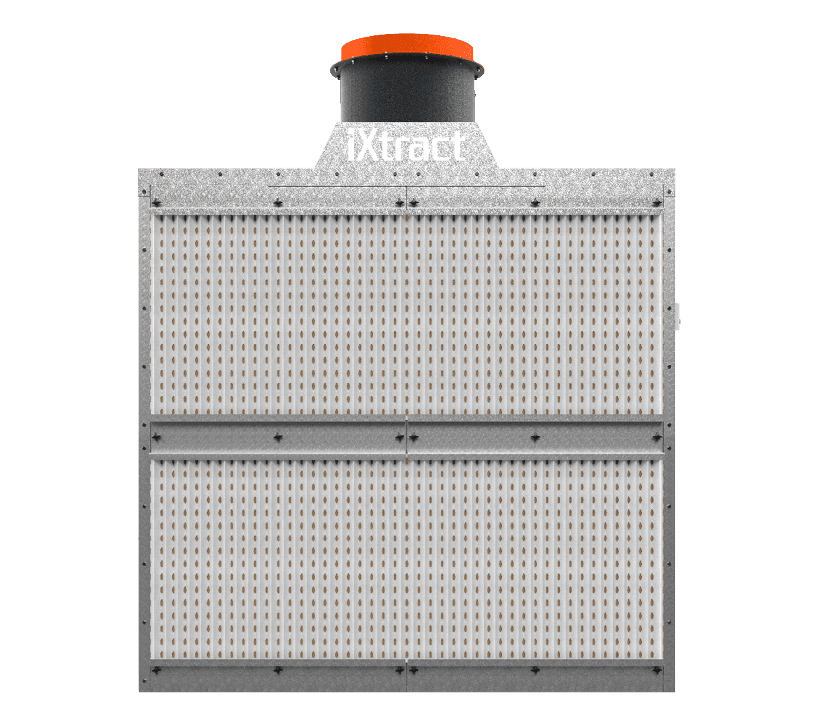

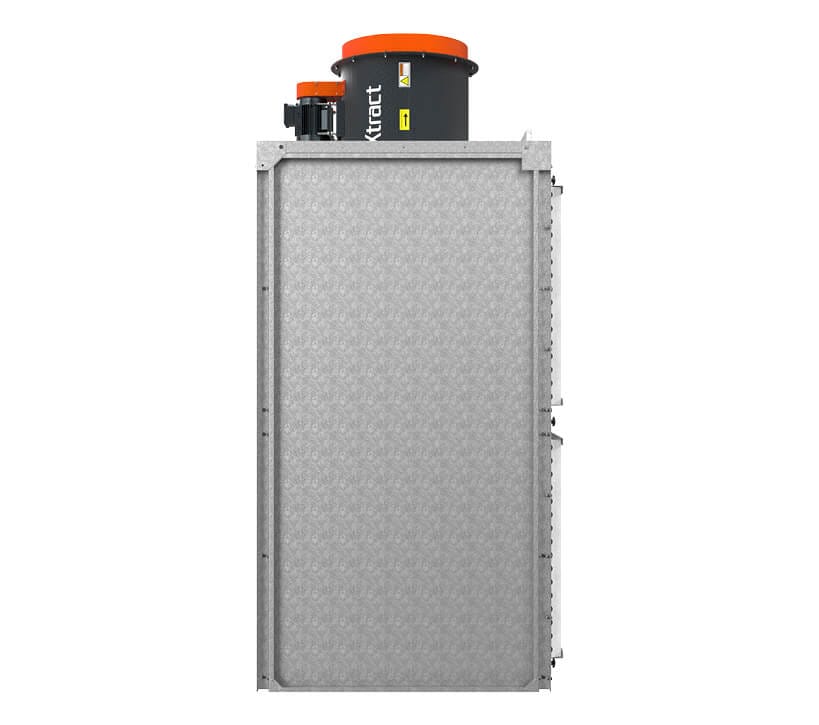

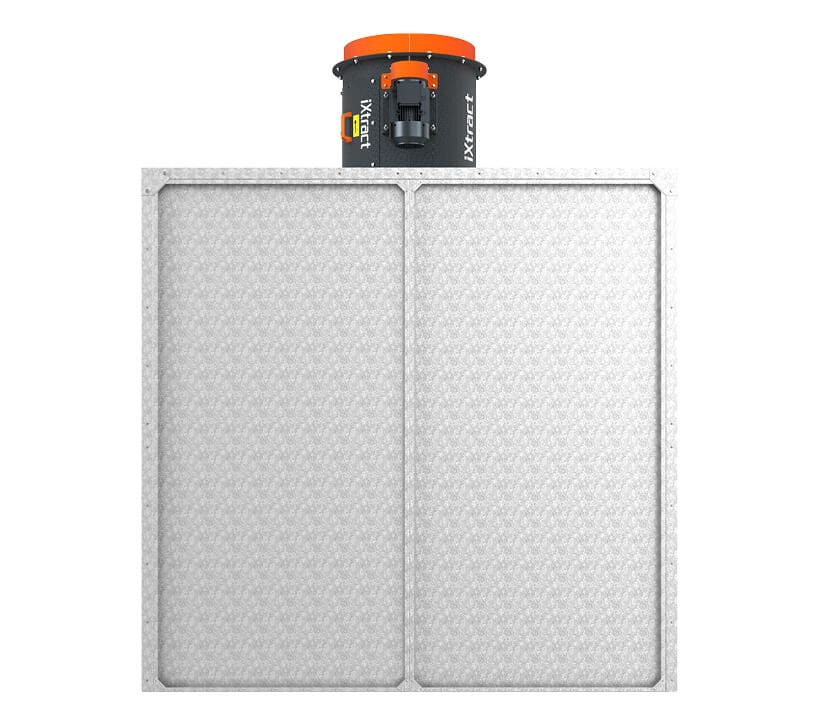

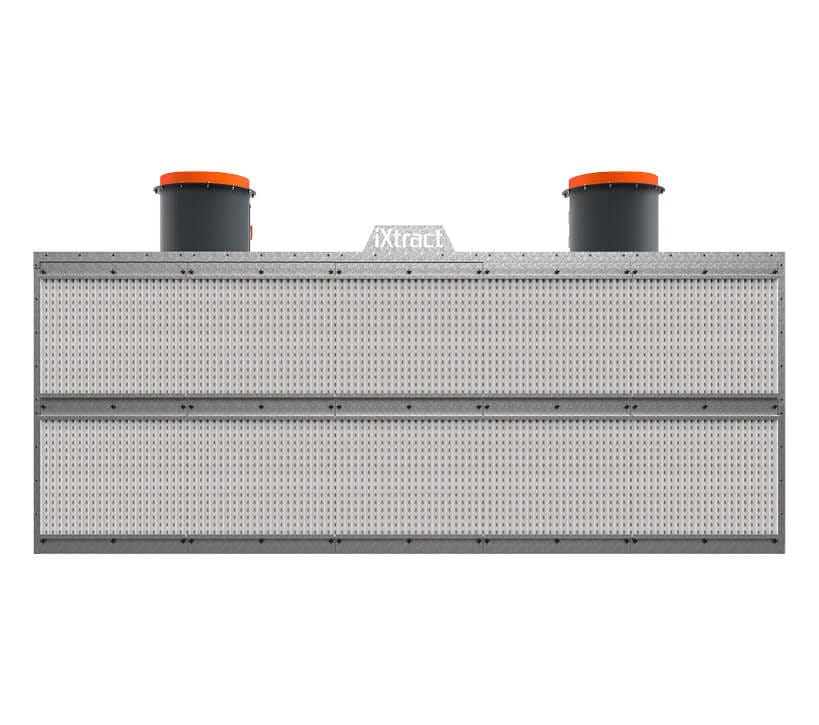

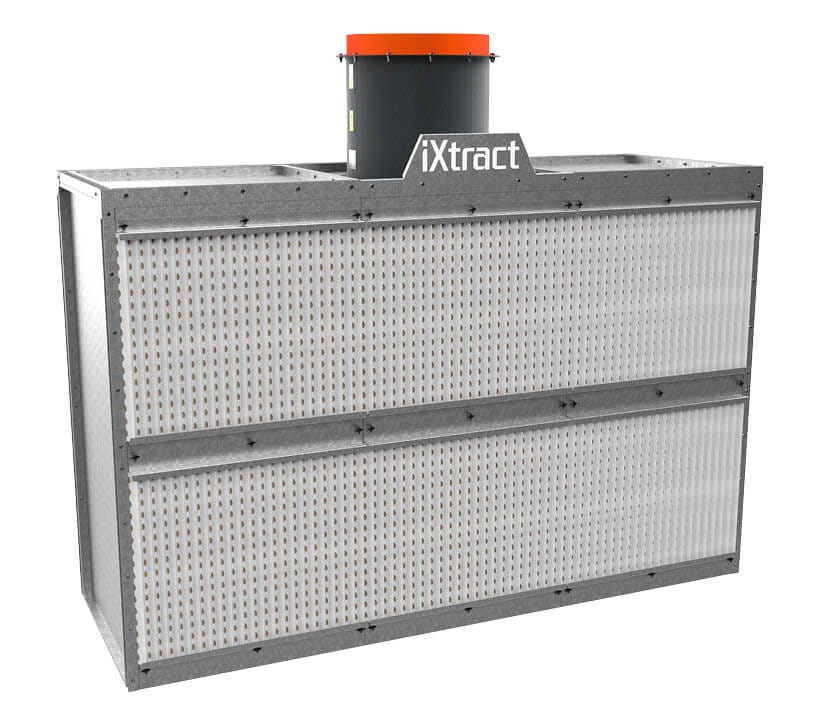

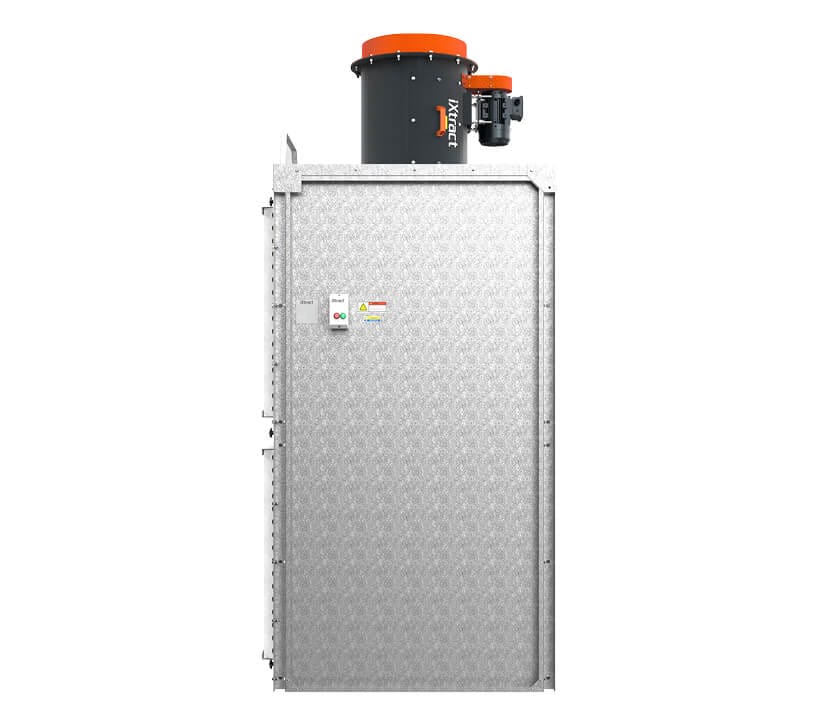

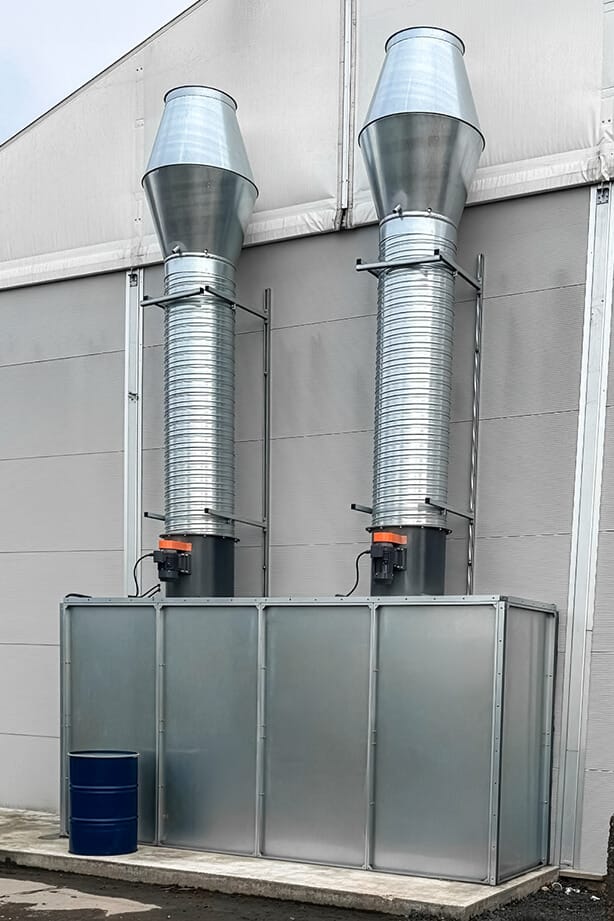

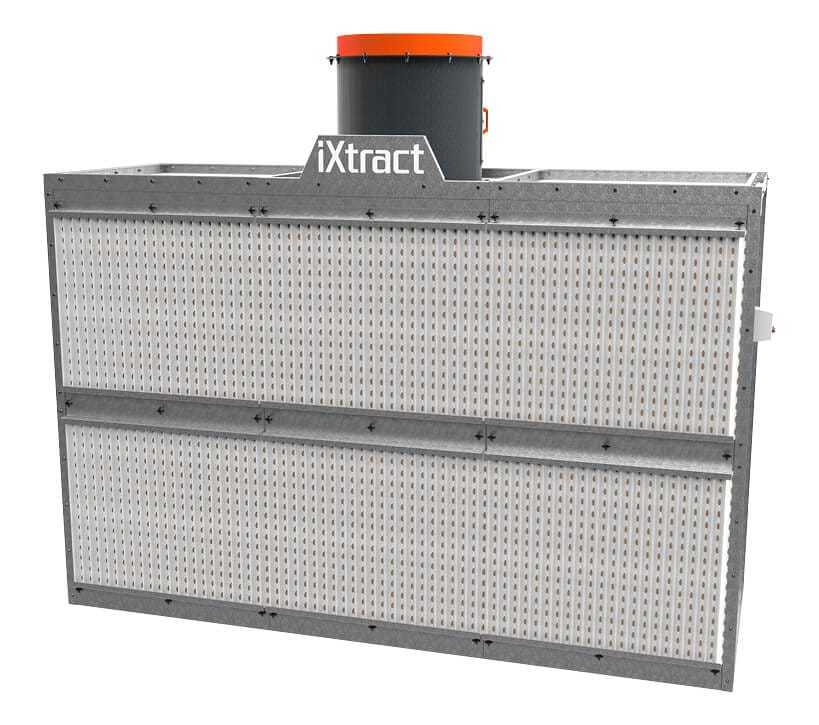

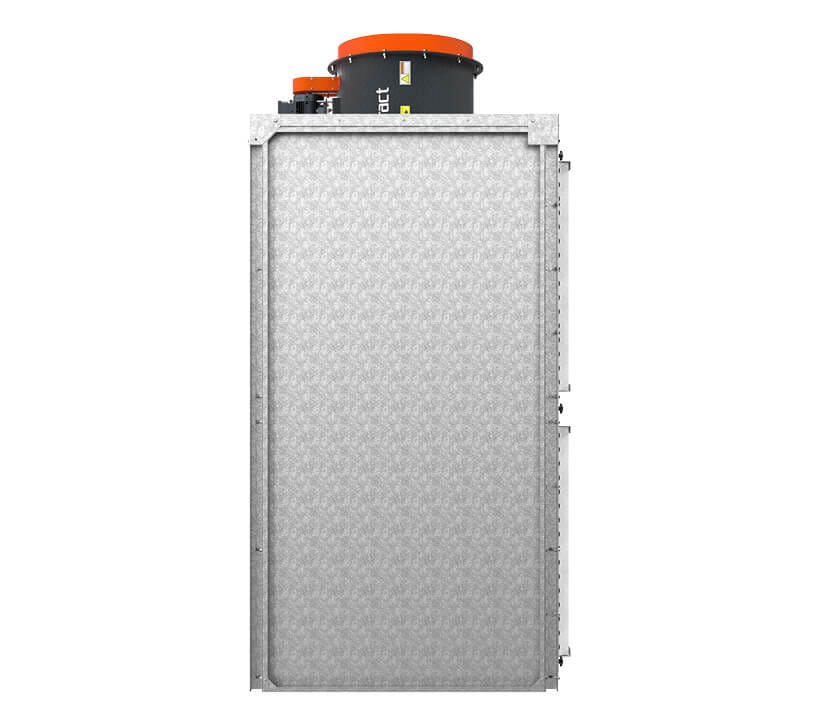

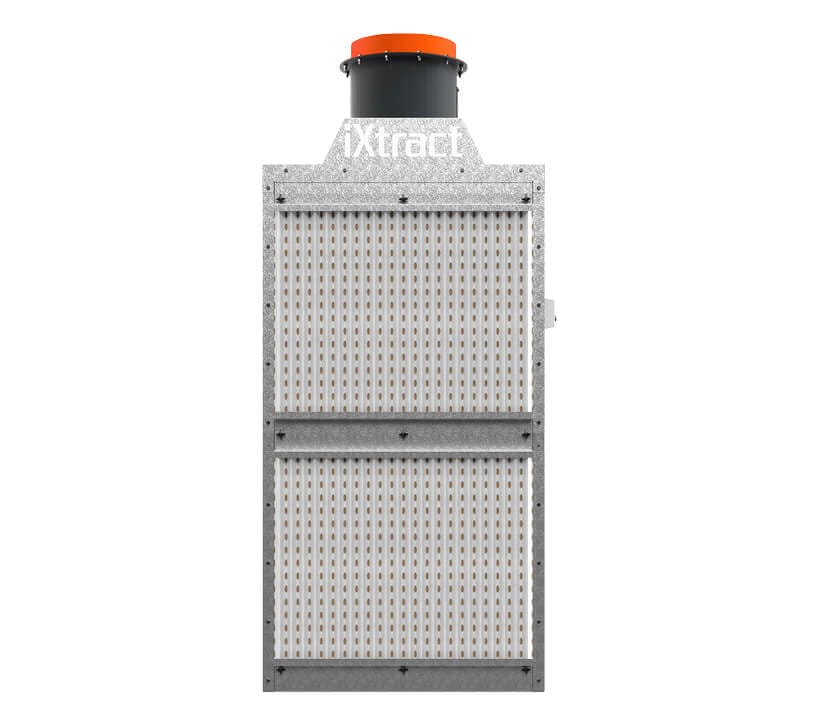

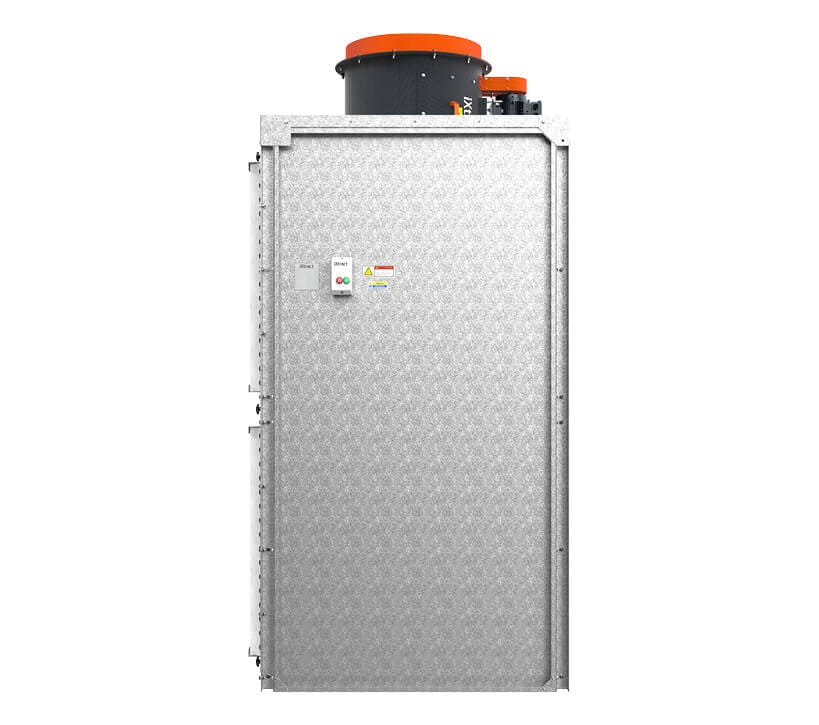

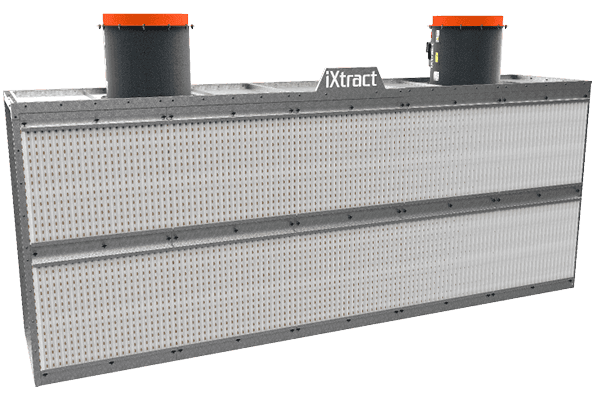

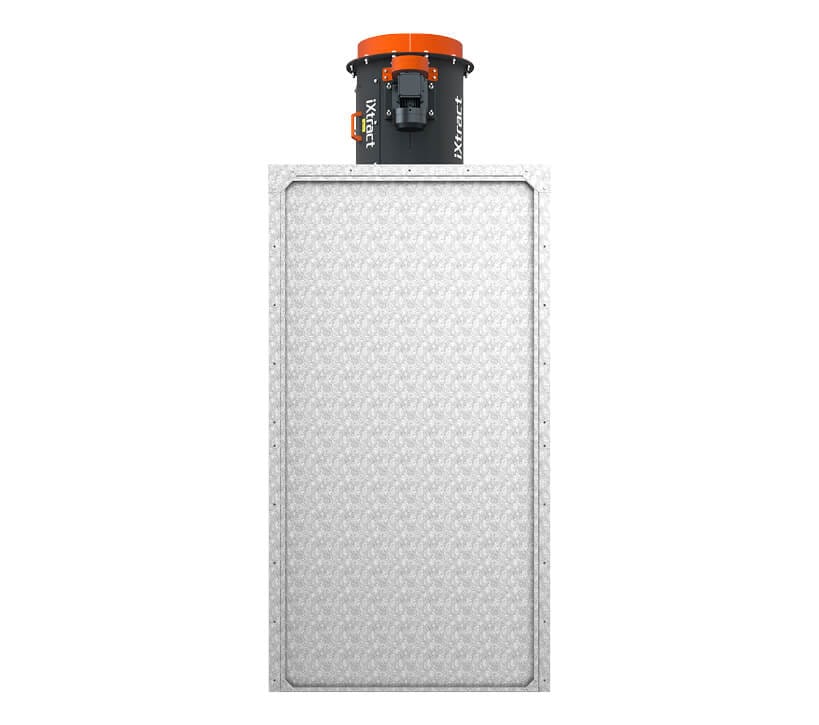

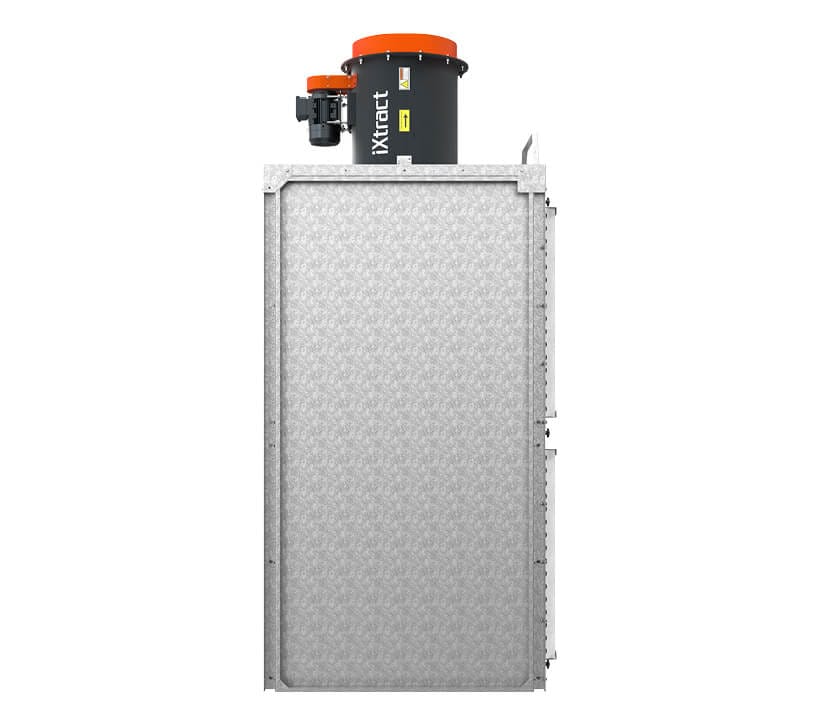

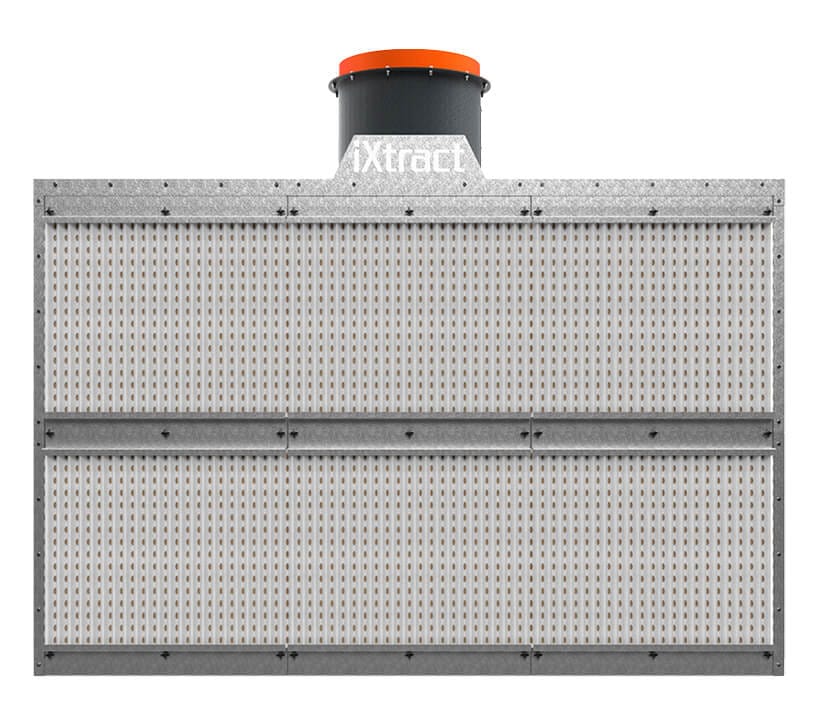

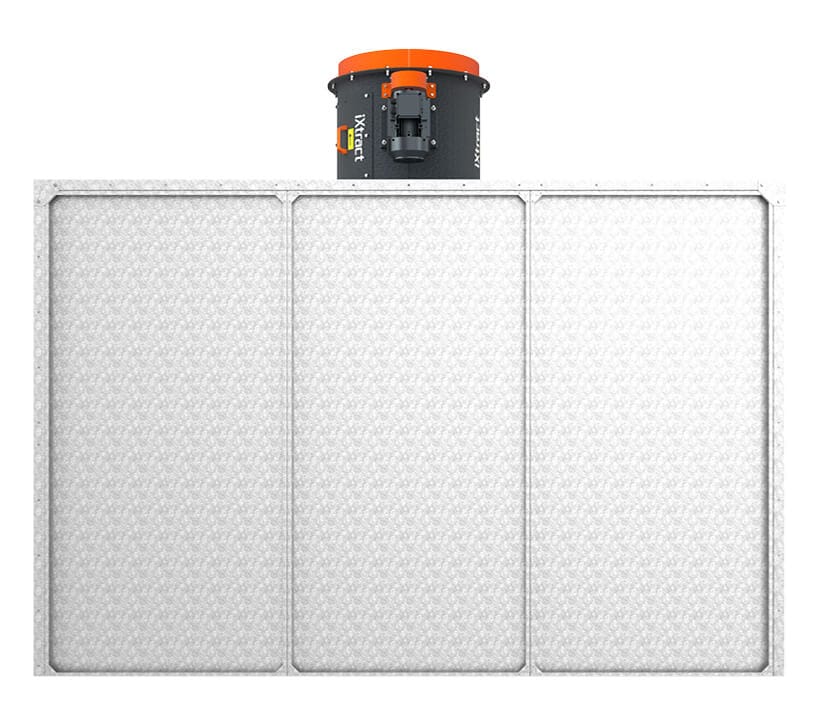

Standard Dry-back Spray Booth
Capture and contain paint particles, aerosols and pollutants.
High-quality Dry-back Spray Booths are the ideal solution for painting and coating operations by helping to prevent the dispersion of harmful particles and aerosols into the workspace.
This dry-back spray booth has a simple but effective design and is available in a number of widths.
Dry-Back Spray Booths are available with an optional durable powder coated finish, galvanised steel is the standard finish.
Size
Want to know more?
Request PricingJump to:
Jump to:
Built in Fan
A 1.5kW – 2.2kW axial fan is integrated with these Dry-back Spray Booths, this creates an all-in-one particle and aerosol capture solution.
Robust Quality
Our spray booths are built with industry in mind and have been rigorously tested to ensure high quality performance that is also built to last.
Flat Pack
Our spray booths are supplied in an easy to assemble flat pack kit or can be prebuilt prior to delivery.

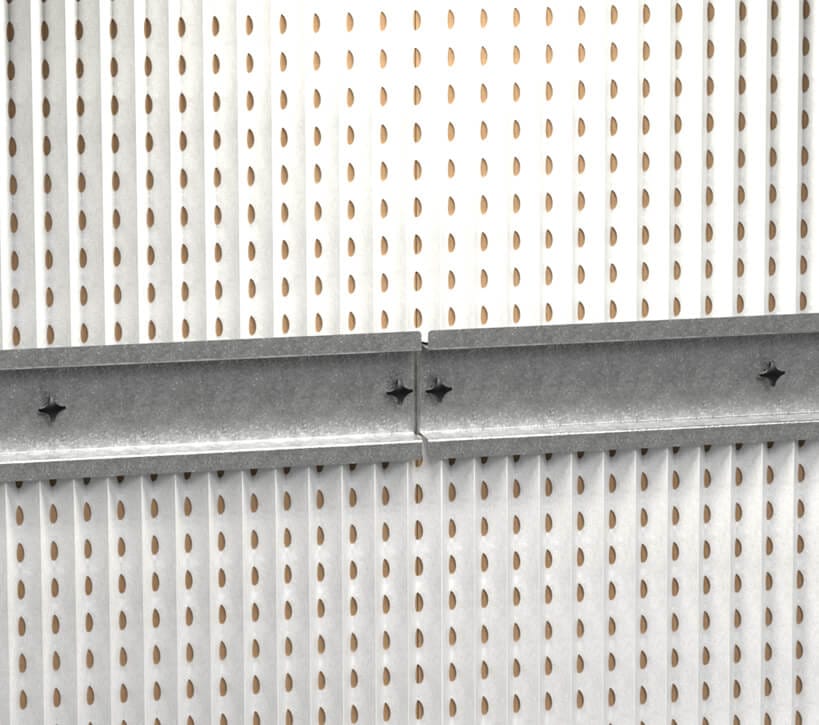

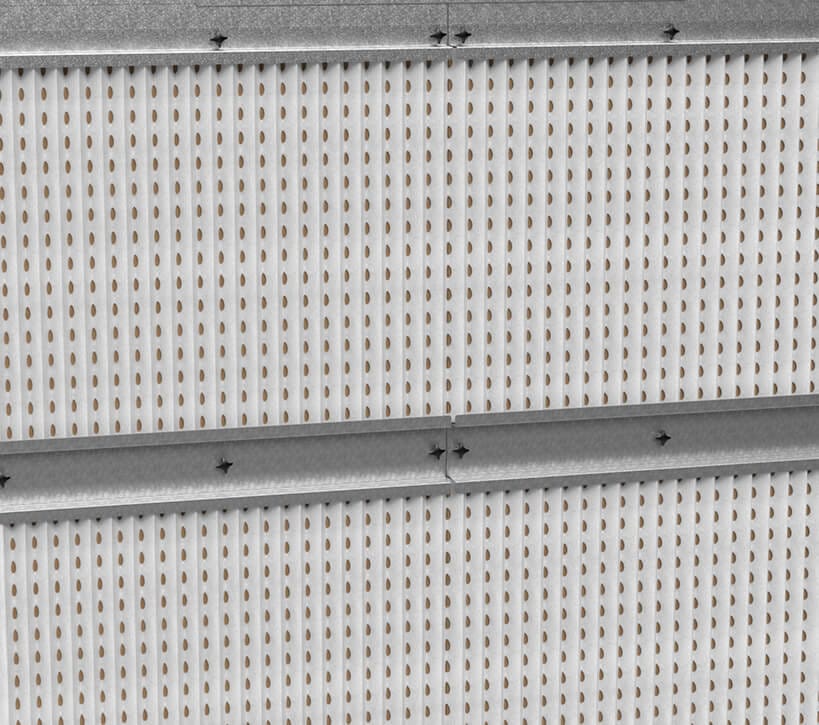

Easy Maintenance
Our spray booths are easy to maintain and designed so that replacing the dry paper filters is an effortless process.
Andreae Paper Filter
Dry disposable Andreae paper filter, features a concertina design constructed from a layer of recycled cardboard.

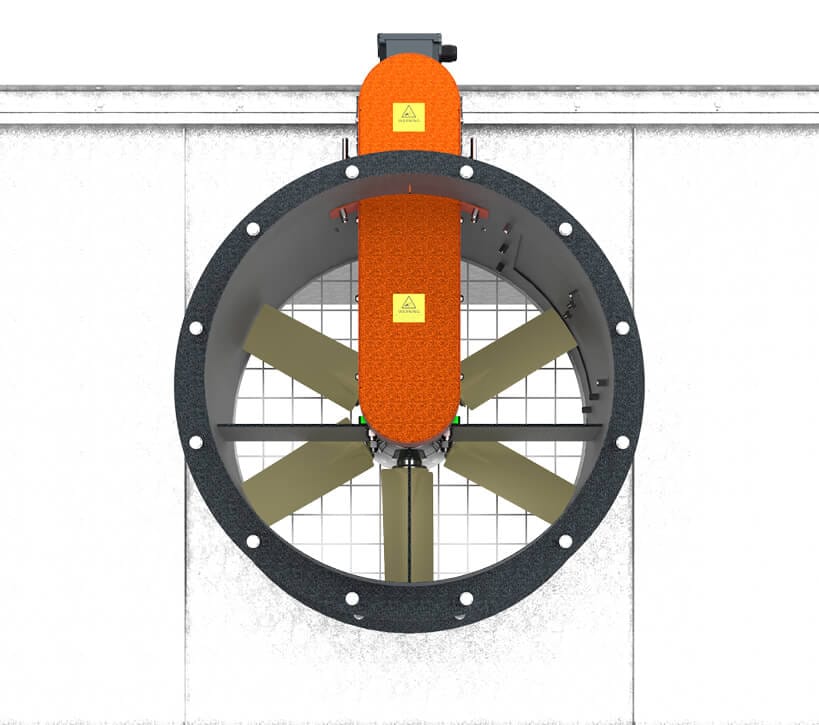

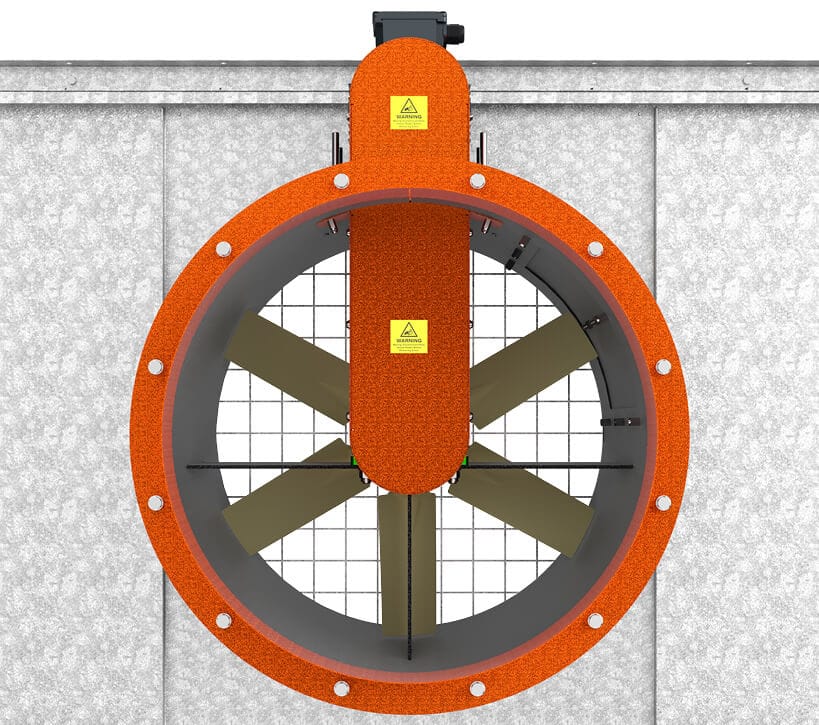

Fan Type
Belt-driven axial fan ranging from 1.5kW to 2.2kW.

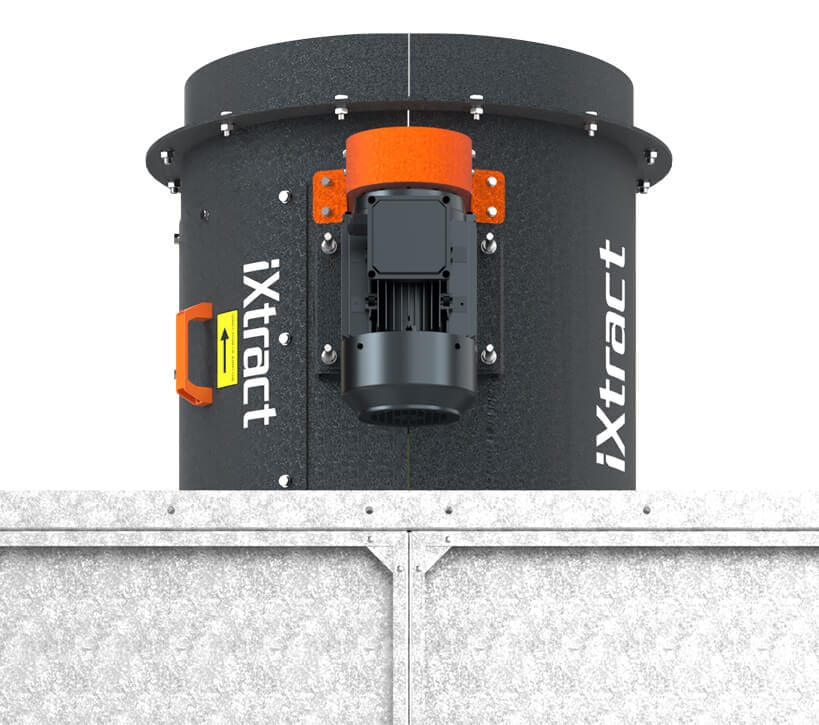

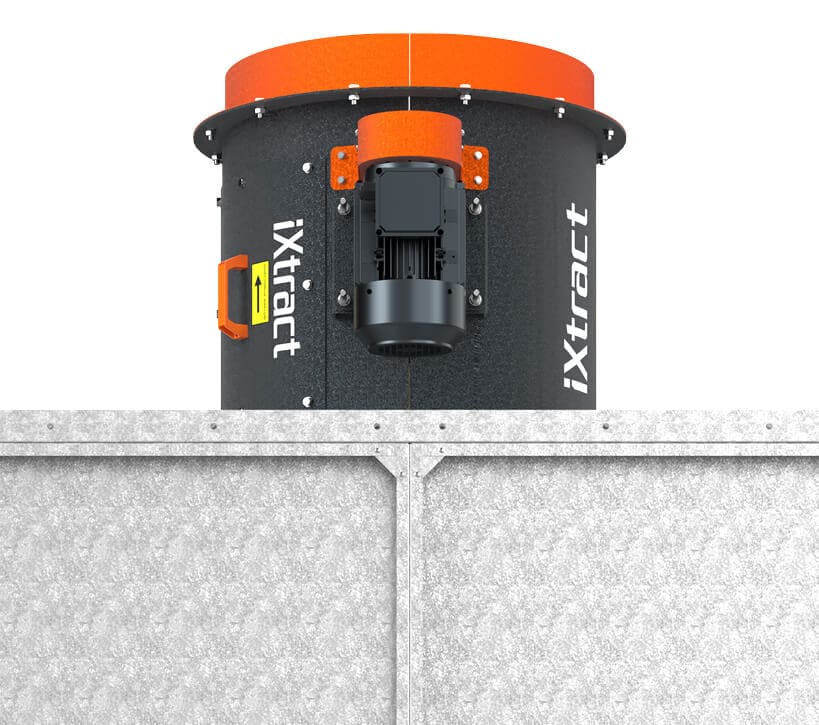

Extraction Rate Volume
7500m³/hr to 38000m³/hr.
Easy Maintenance
Our spray booths are easy to maintain and designed so that replacing the dry paper filters is an effortless process.

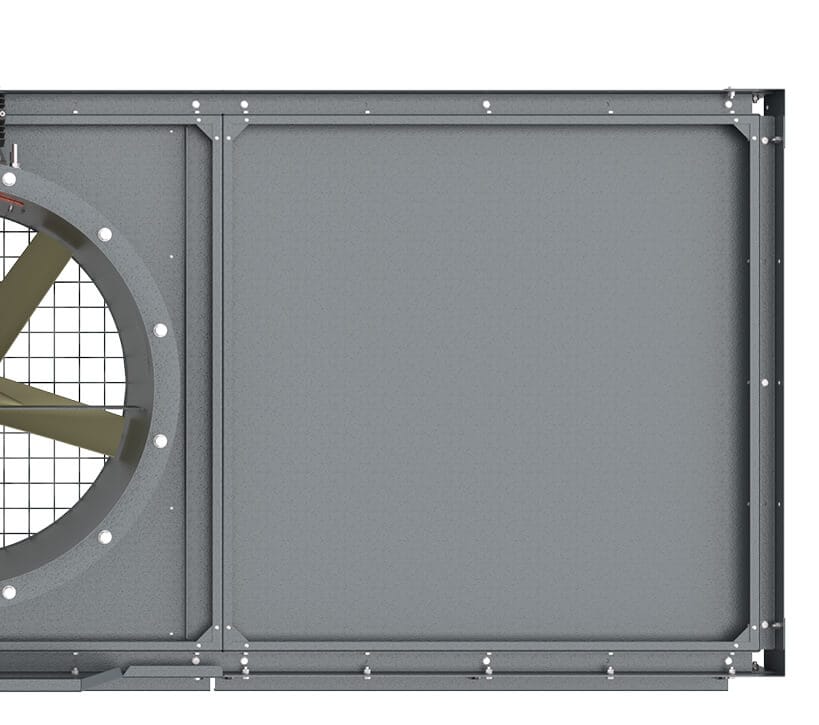

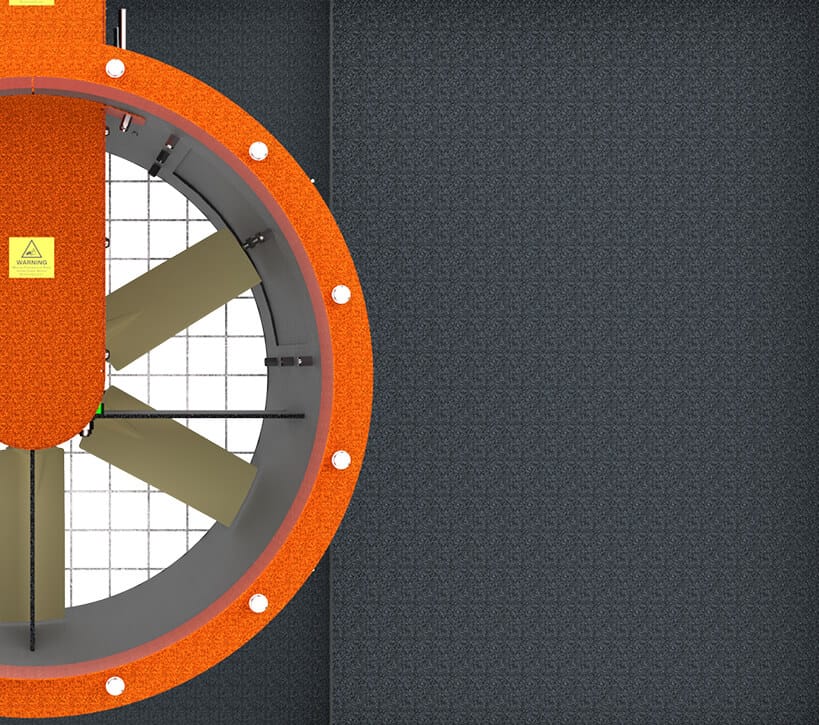

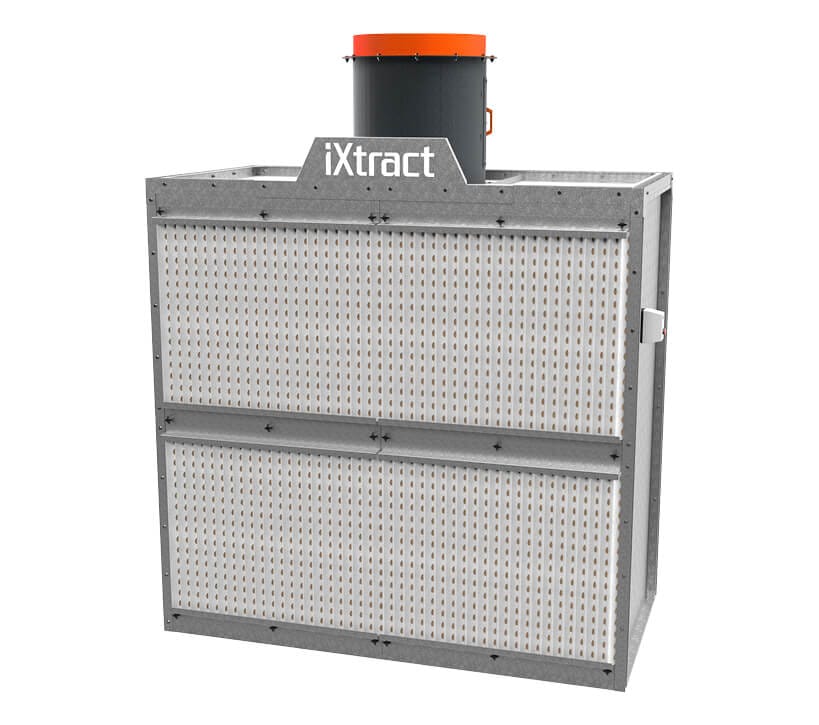

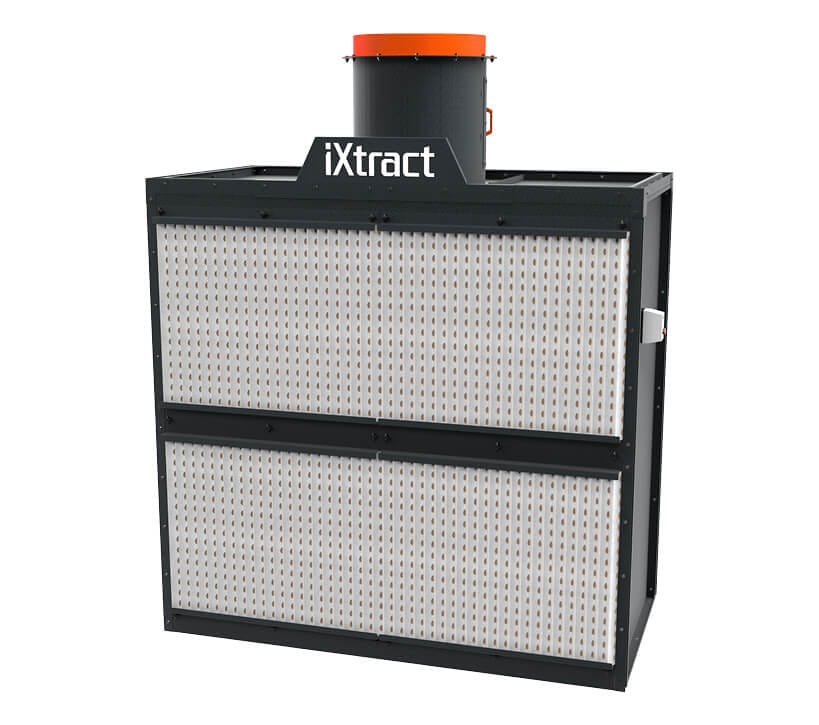

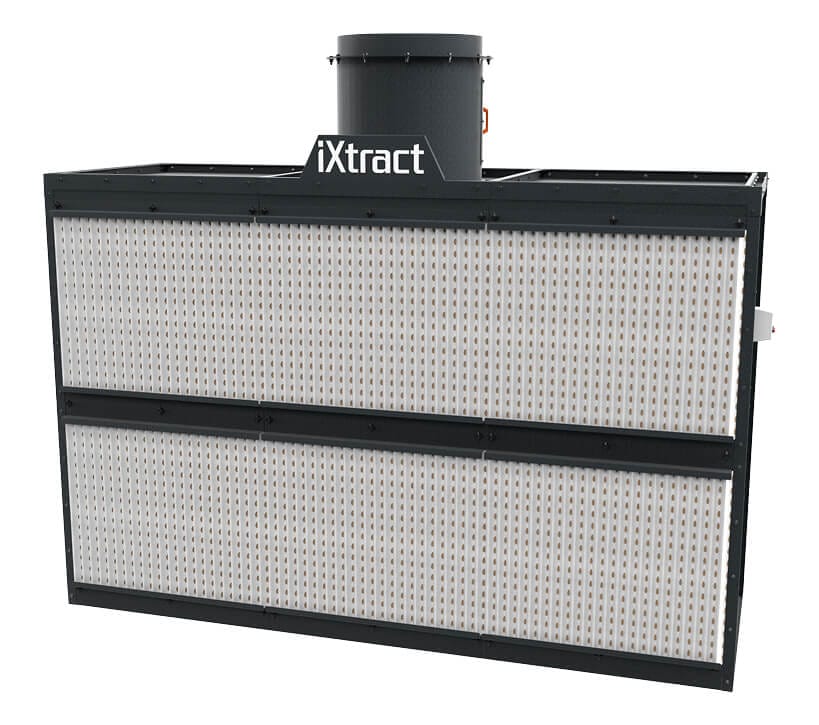

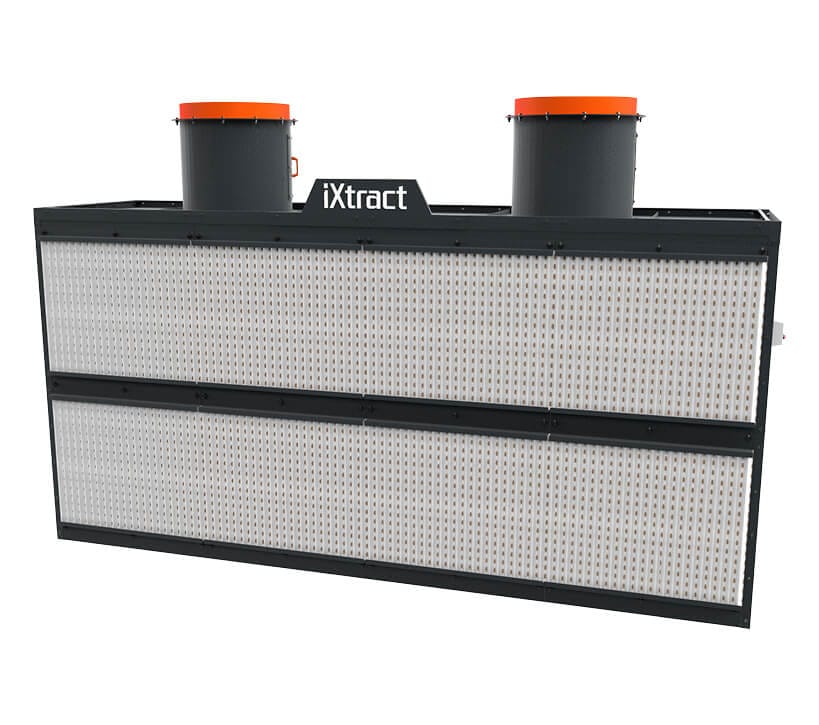

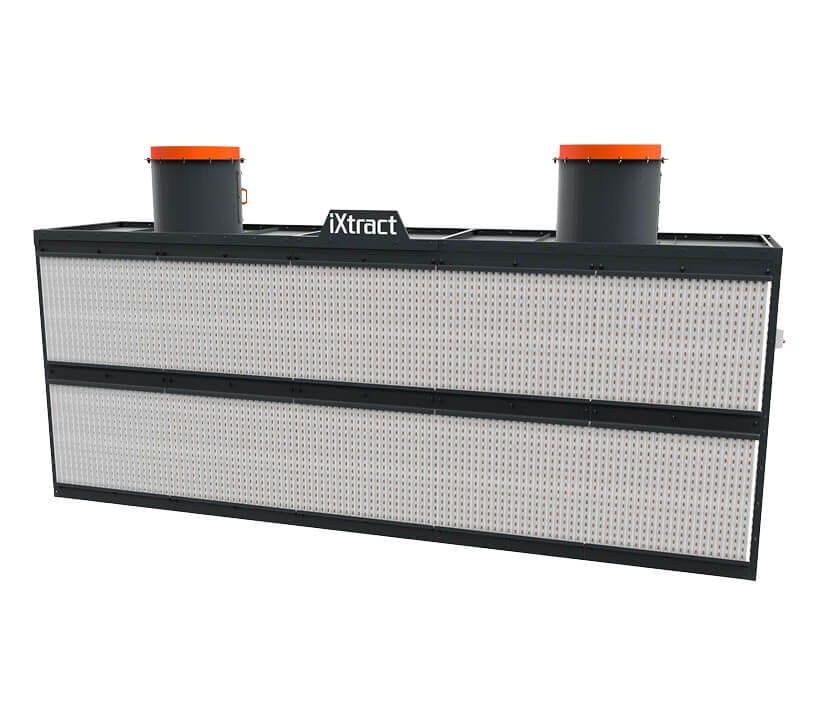

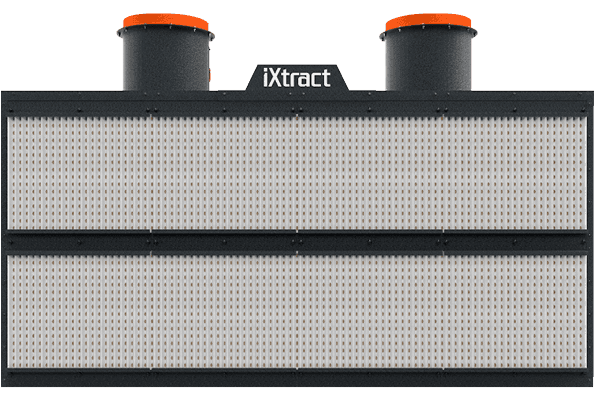

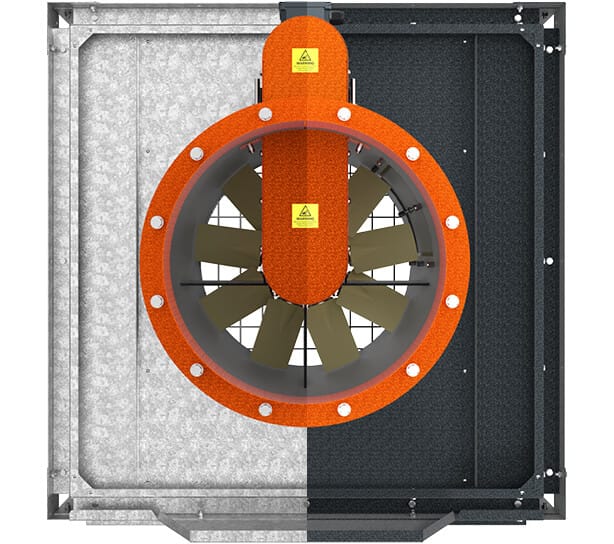

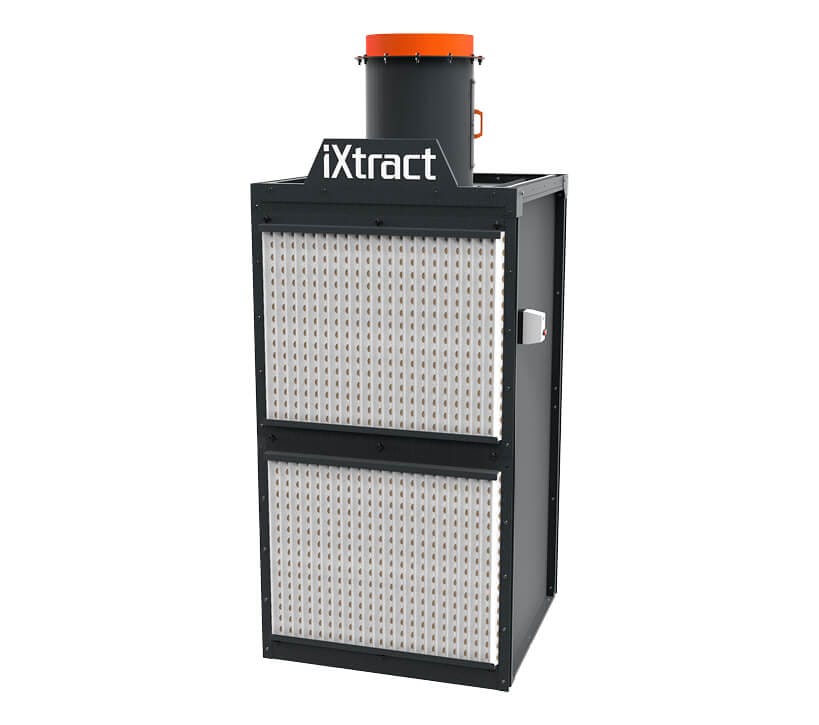

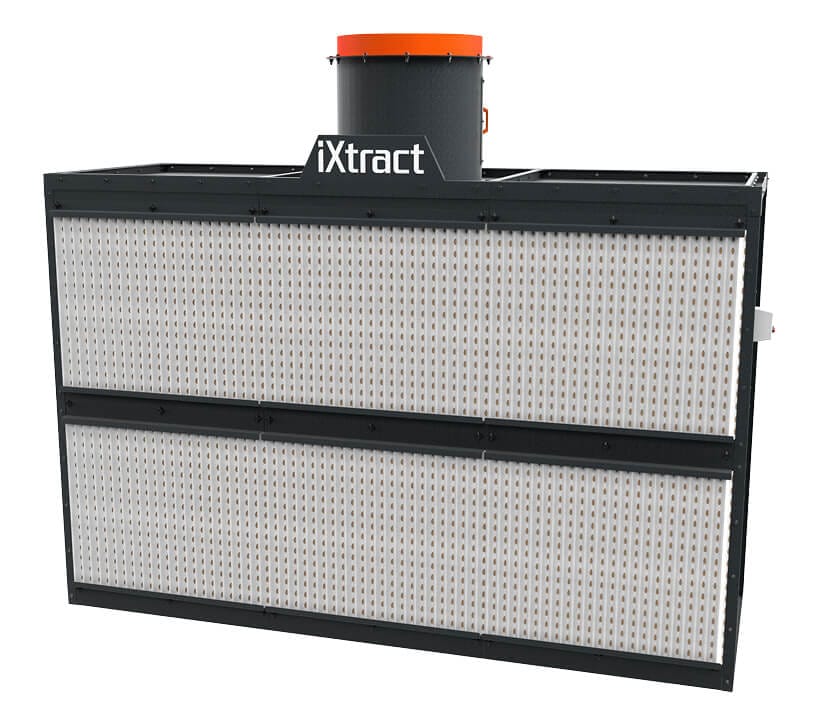

Optional Powder Coating Finish
Units are available with an optional durable powder coated finish.
Technical Specifications
Size
O&M Manual
Access the O&M Manual for this product in our customer area – iXtract hub.
Data Sheet
Need to know more about this product? Download the full technical data sheet
Accessories
Explore our range of accessories available for Standard Dry-back Spray Booths.
Showing 2 of 2 products
Overview
Dry-back Spray Booths are a specific type of spray booth utilised to capture over-spray during painting processes.
They use dry paper filters, which are designed to separate paint particles from the continuous airflow within the booth.
Our precision-designed spray booths enhance the overall quality of finished products by minimising imperfections and ensuring uniform coating applications.
Our spray booths are fully modular constructions, allowing for a wide range of sizes and types to suit various needs. We have four variants available with Standard, Canopy, Bench and Low Level models to choose from.
Operation
By effectively capturing and containing paint particulate matter, dry-back spray booths help maintain clean and healthy working environments.
This enables companies to mitigate potential health risks associated with air pollution and protect the well-being of workers.
As the air contaminated with over spray enters the booth, it passes through a series of filters that effectively trap and collect the paint particles.

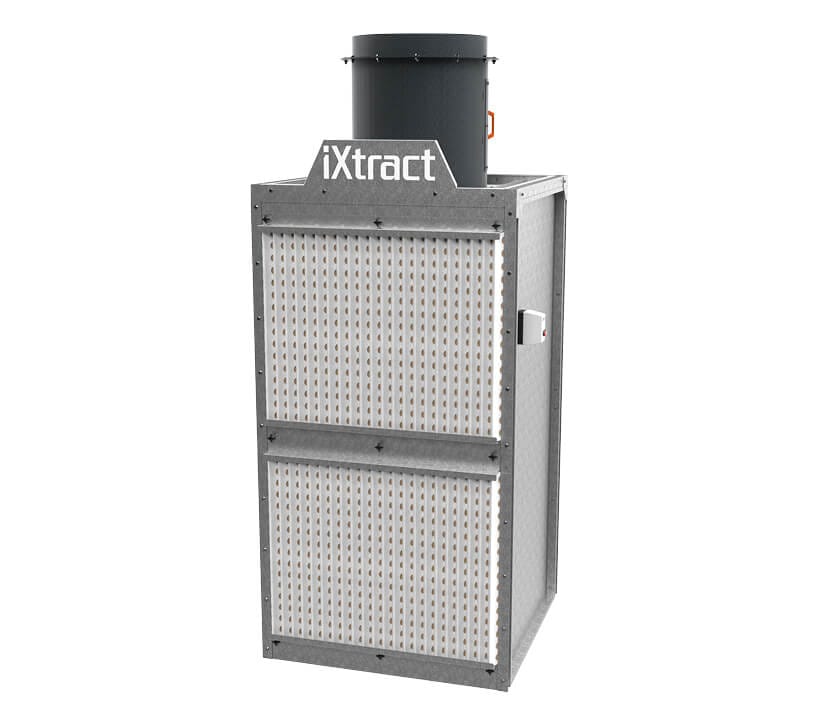

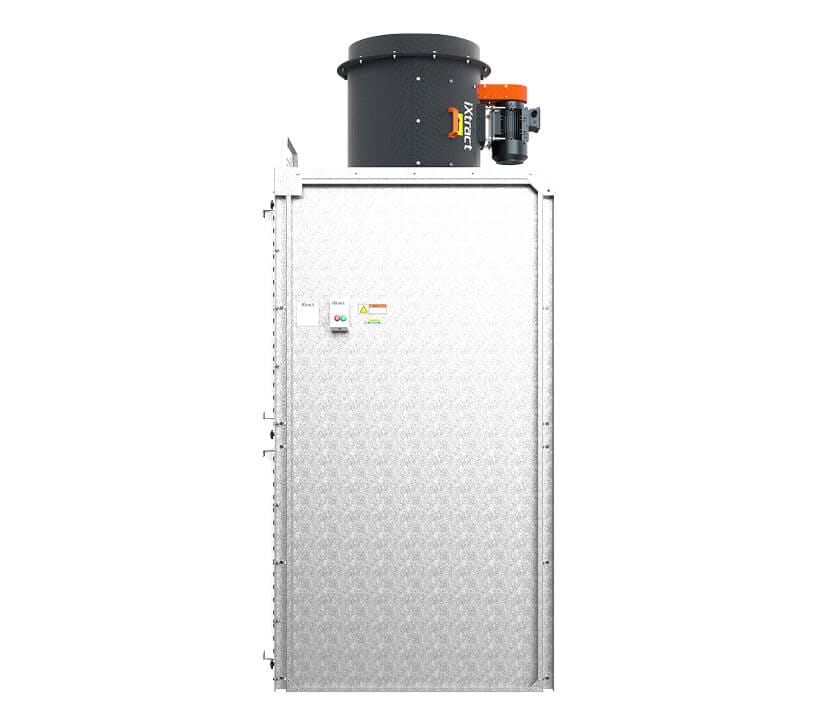

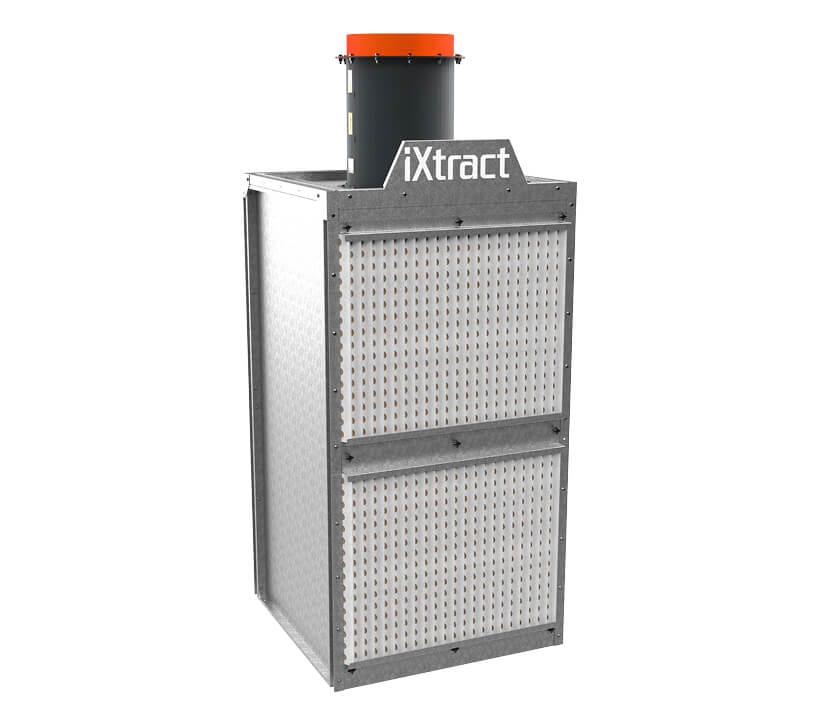

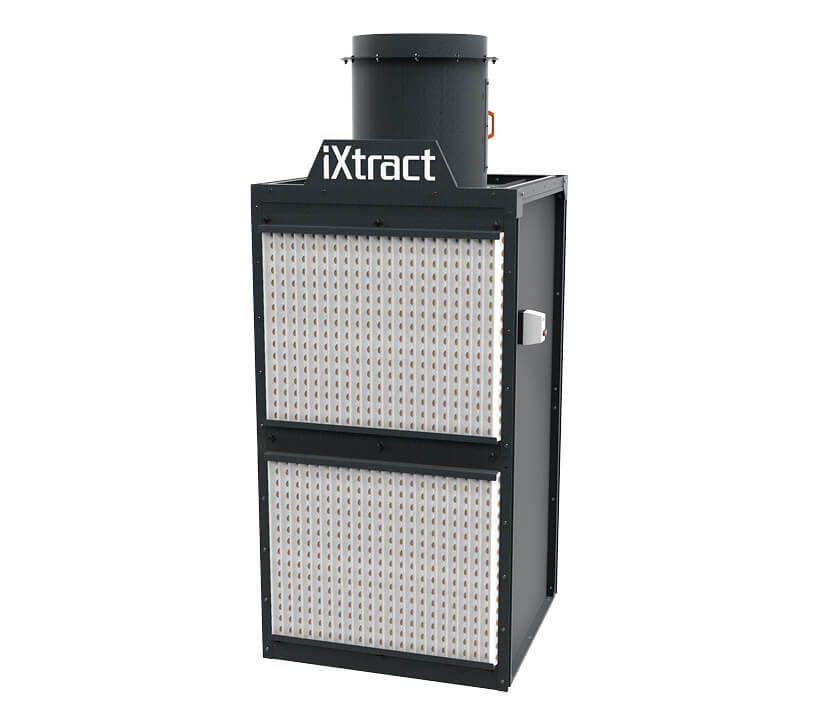

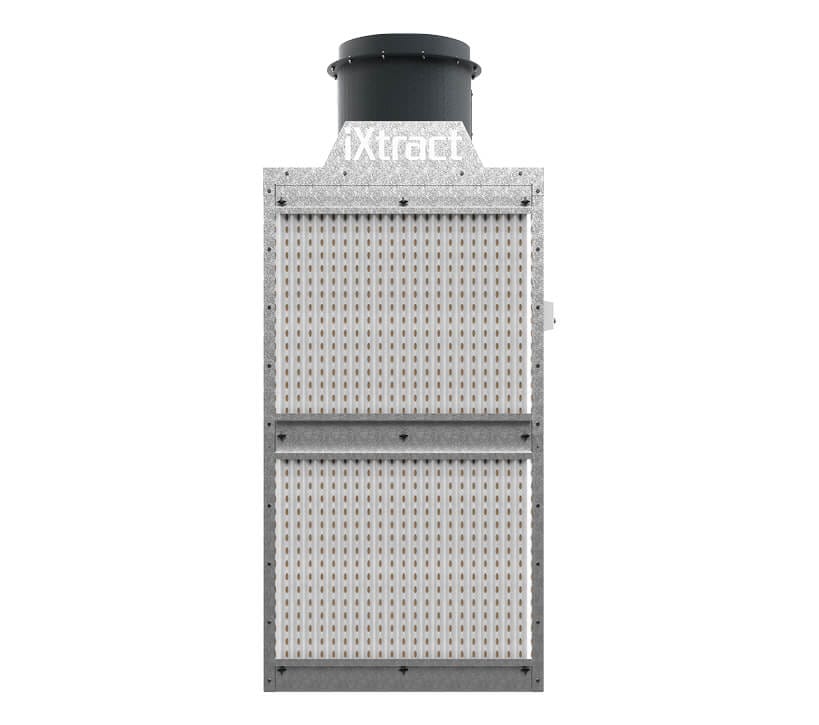

Discover More About the DBS-NC-1.1
