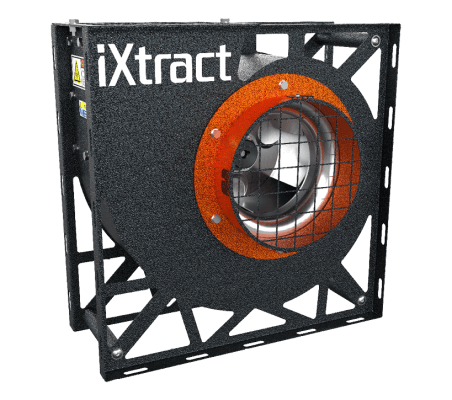

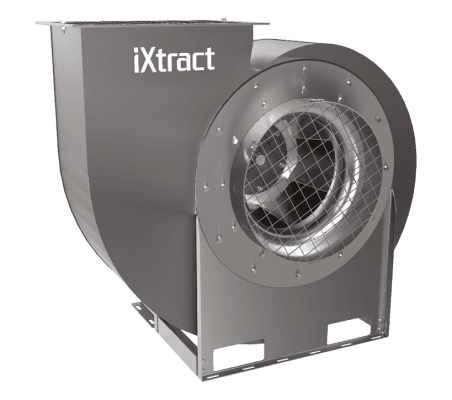

F-Series Centrifugal Fans

Energy saving and high performance fans

The F-Series range of centrifugal fans have been designed to be used in conjunction with other iXtract extraction equipment to effectively eliminate fumes, dust and other small but hazardous particles. 0.37kW to 5.5kW models come with a square exterior frame which include forklift handles for easy lifting and can also be wall mounted for a more discreet installation.

Model

Want to know more?

Request Pricing
Improved Productivity and Quality

Super Build Quality

Our fans are built with industry in mind and have been rigorously tested to ensure high quality performance that is also built to last.

Eco-Friendly

Eco-Friendly

Utilising the latest motor technology and using a backward inclined fan technology means it is 20% more energy efficient than standard fans.

Phase

Single & Three Phase

We offer the choice of single or three phase power options for all out 0.37kW to 1.1kW models giving you more flexibility.

Made in Britain

Made In Britain

All of our fans are designed, built and tested by our teams right here in Britain - ensuring quality and the best level of customer support.

Easy Fitting

Our fans are designed for easy installation and we offer flexible ducting & square to round fittings to quickly fit to a ducting system.

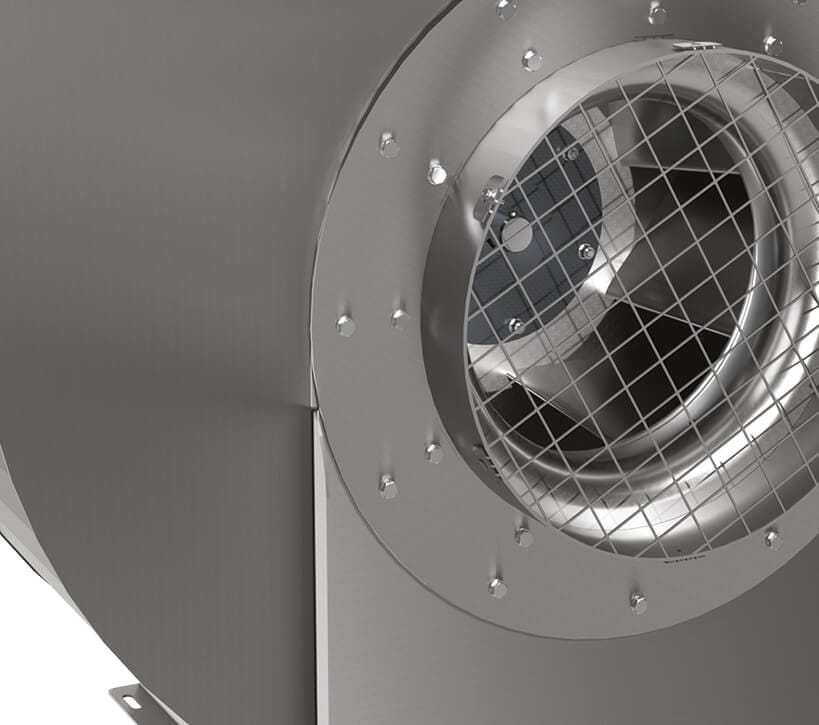

Backward Inclined Fan

Backward Inclined Fan

The backward inclined fan (backward inclined blower) is highly efficient because it has simple, flat, backward inclined blades that minimize interference with the airflow as the air moves through the fan.

  • Maximum static efficiency of 75%(total efficiency 83%)
  • Airfoil Blade Geometry





F-Series Centrifugal Fans - Inspection Hatch

Inspection Hatch

A cutting-edge solution designed to simplify maintenance of the centrifugal fan. This meticulously engineered hatch provides convenient access to critical components, ensuring hassle-free inspections, repairs, and cleaning processes.

Forklift Pockets

Forklift Pockets

Built in forklift pockets simplify transportation, enhance stability during movement, enable precise positioning during installation, and facilitate efficient maintenance procedures.

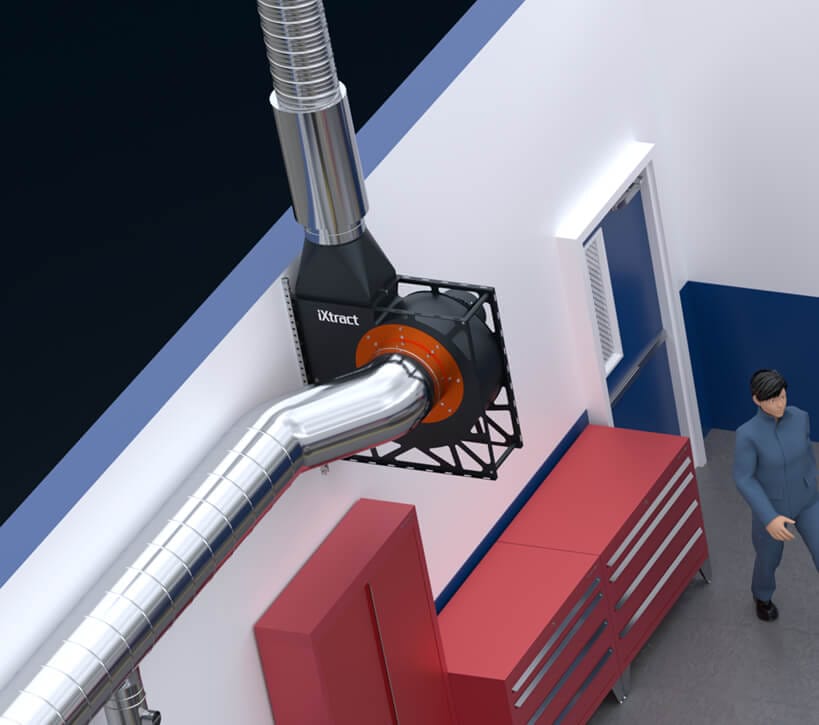

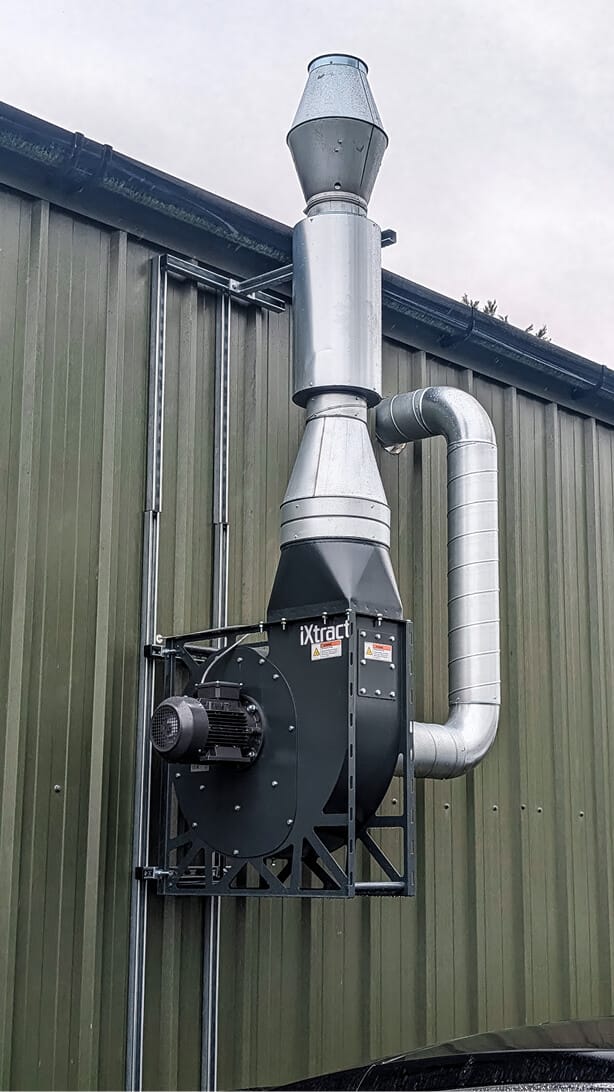

Wall Mountable

Wall Mountable

Our range of square fans have built in installation holes which means the fans can be easily and safely wall mounted for environments where floor space is limited.



Mounting Points

Mounting Points

Mounting points built into the frame for easy installation

Lifting Brackets

Lifting Brackets

Built in lifting brackets to help easily lift the fan into the correct installation position.

Carry Handles

Lifting Points

XXXXXXX

Frame

Frame

XXXXXXX

Motor

Motor

XXXXXXXX

Carbon Steel S275

Carbon Steel S275

XXXXXXX

Technical Specifications

Model

O&M Manual

Access the O&M Manual for this product in our customer area – iXtract hub.

Data Sheet

Need to know more about this product? Download the full technical data sheet

Accessories

Make the most from your F-Series Fans with our range of compatible accessories.

Acoustic Box

Acoustic Box
Acoustic Boxes for F-Series Fans

Fan Inverter

Inverter to fit F-Series Fans

DOL Starter

Direct online starter with overload protection

Anti Vibration Mounts

AV Mount
Easy to fit anti vibration mounts

Square to Round

Square to Round
Square to Round transition fitting

Flexible Connection

Flexible Connection
Flexible connection to fit circular ducting systems

Showing 6 of 6 products

F-Series Centrifugal Fan - Air Flow Diagram

Operation

How Do The F-Series Fans Work

iXtract centrifugal fans work by pulling air into the fan’s intake by spinning and deflecting the air at a right angle to the output. As the impeller rotates, industrial centrifugal forces draw air into the shaft and then make it move perpendicularly to the opening of the casing. In turn, this allows the fan to produce more static pressure for the air volume, meaning it can move extracted air much further along a duct run. The industrial dust extractionfan features the motor externally to impeller allowing for a compact design as well as optimum cooling of the motor.

Discover More About the FAN-0.37

For pricing, more information or help with any of our fan range then complete the form and one of our experts will be in touch to help.

Model

Request Pricing

Your Details
Product Configuration
Do you have any questions?
Please enter no more than 254 characters

F-Series Centrifugal Fans

Energy saving and high performance fans that are designed and built right here in the UK.

  • Available in 0.37kW to 37kW models
  • Optimal Airflow from 1432m³/h to 20301 m³/h
  • Easy to lift and put into position
