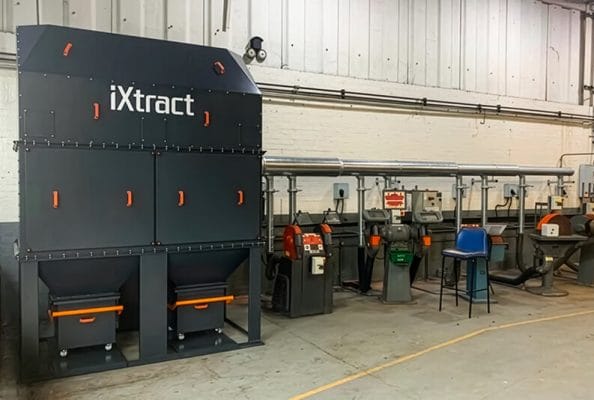

Shaker Filter
Effective solution for filtering wood dust particulates.
With its simplicity and reliability, the iXtract Shaker Filter is a cost-effective choice for woodworking workshops, ensuring a cleaner, safer and more productive workspace.
Non-Return Valves Also Available On Request.
Size:
Want to know more?
Request PricingJump to:
Jump to:
Built in Fan
A 3kW – 11kW F-series Fan is integrated with these Shaker Filter units, this creates an all-in-one wood dust filtration solution that is ready to go.
Efficient Dust Removal
Our range of wood dust shaker filters are designed to be highly efficient in capturing and removing wood dust and fine particulate matter. They help maintain a clean and safe working environment.
Low Maintenance
iXtract shaker filters have been specially designed to be low maintenance, thanks to their shaker mechanism that periodically dislodges dust from the filter media. This reduces downtime for maintenance and ensures continuous and reliable operation.
Optional Explosion Relief Panels
For added safety in environments where dust explosions are a concern, our wood dust shaker filters offer optional explosion relief panels. These panels are designed to release pressure in the event of an explosion, minimizing the risk of damage and injury. It's a vital safety feature for industries where combustible wood dust is present.

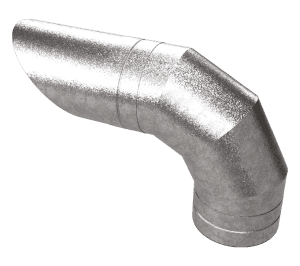

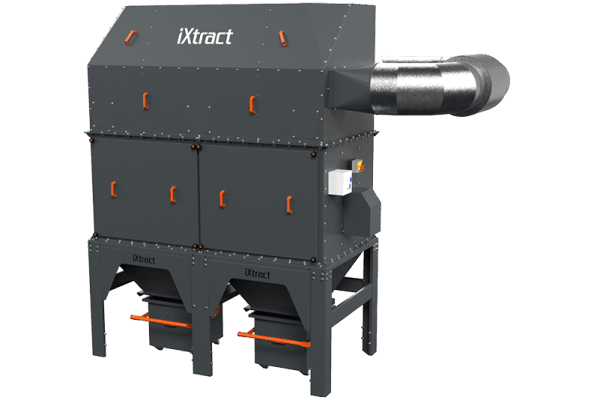

Outlet Attenuator Kit
Optional outlet with attenuator to reduce noise levels.

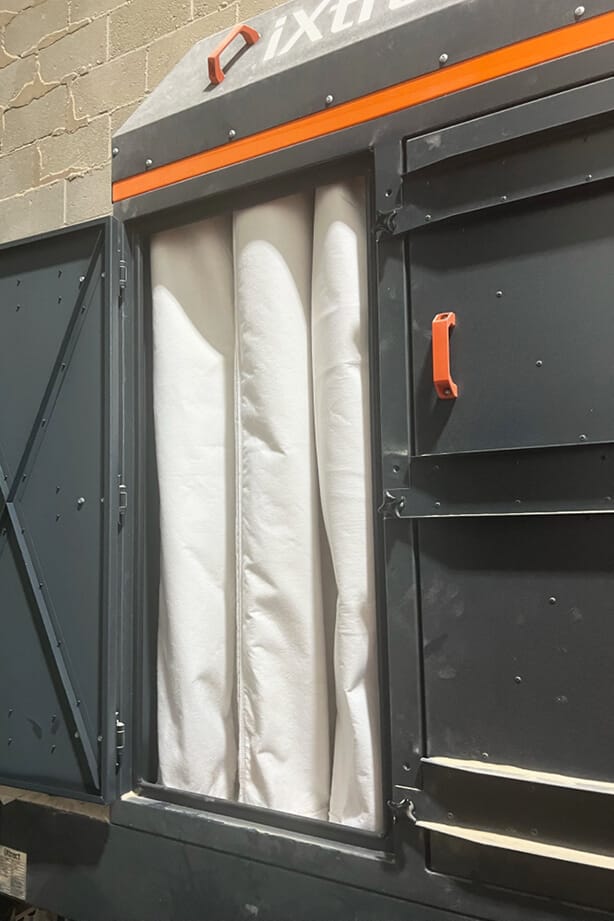

Filter Access Door
For easy filter change and other maintenance.
Rear Inlet
XXXXXX
Bin
Dust collection bin with heavy duty castors.
Junction Box
Pre-wired controls for ease of installation.

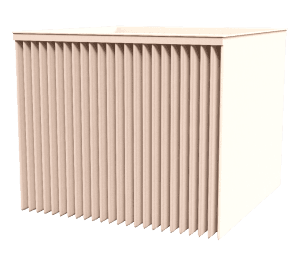

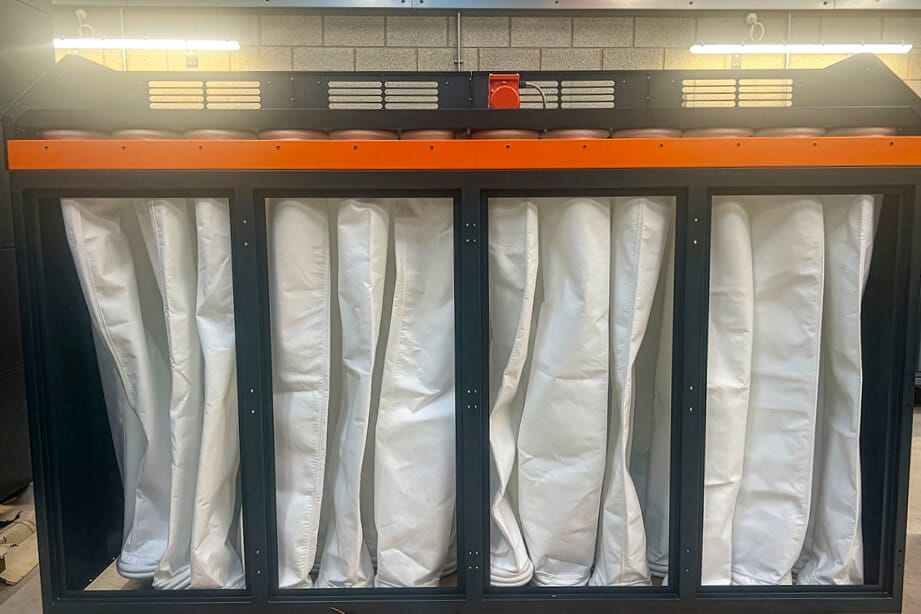

Filter Bag
High quality polyester needle felt filter bag.
Outlet Silencer Sub Assembly
XXXXXX
Integrated Fan
Built in centrifugal fan for added performance and convenience.
Built-in Silencer
The Vertical Outlet interior features sound insulation to provide a quieter operation.

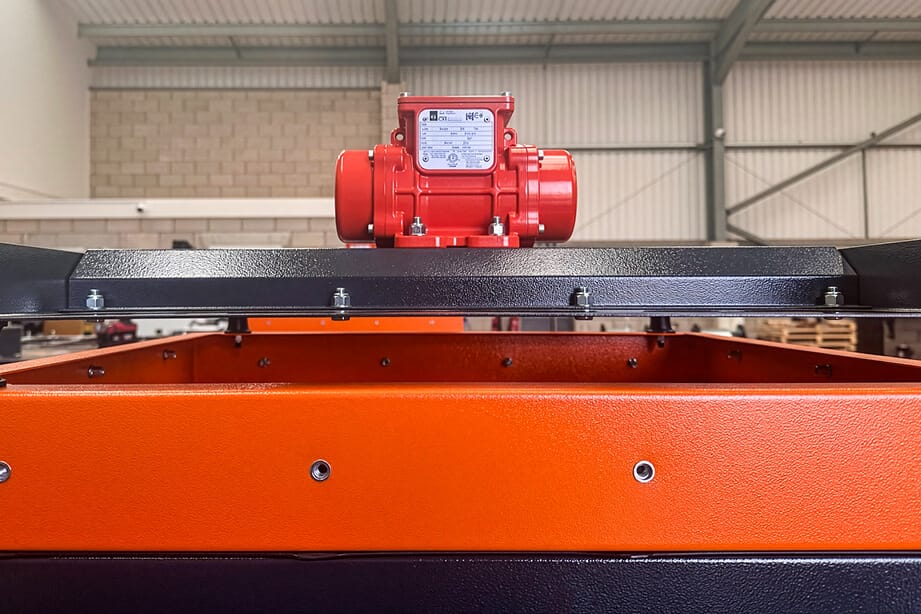

Shaker Motor
0.55kW 6 pole shaker motor.

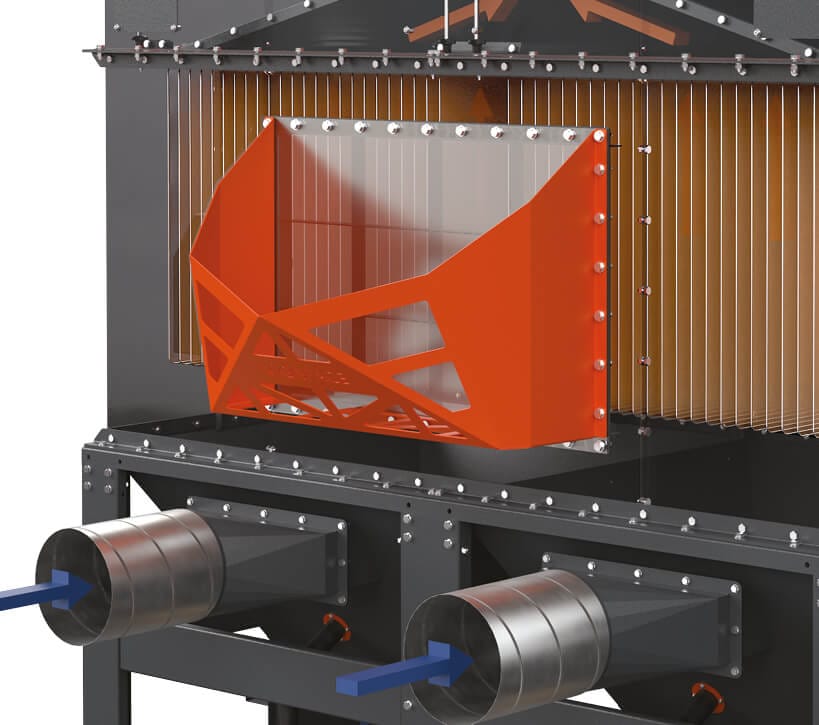

Vent Deflector
Provide optimum protection against explosions with these optional deflectors.
Technical Specifications
Size:
O&M Manual
Access the O&M Manual for this product in our customer area – iXtract hub.
Data Sheet
Need to know more about this product? Download the full technical data sheet
Shaker Filter Accessories
Explore our range of accessories available for Shaker Filters.
Showing 6 of 8 products
Overview
Our Shaker Filter is a highly effective and low-maintenance solution for filtering and separating dust and particulates from woodworking environments.
Operating on a high powered shaker mechanism, this filter efficiently removes particulates by shaking or vibrating the filter media to dislodge larger accumulated particles, preventing clogging and maintaining optimal filtration performance.
For added safety in environments where dust explosions are a concern, our wood dust Shaker Filters offer optional explosion relief panels. These panels are designed to release pressure in the event of an explosion.
An optional Outlet Attenuator Kit is available to reduce noise levels.
Operation

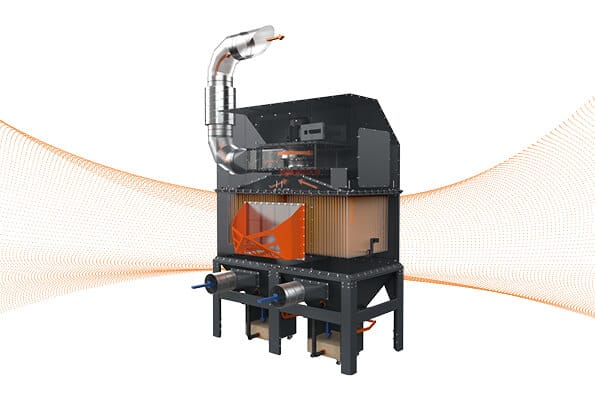

How Shaker Filters Work
Dust-laden air enters the Shaker Filter through the inlet located in the hopper. The larger dust particles deposit into the collection bin below, due to gravity, while the finer dust particles are carried with the flow of air up through the filter bags.
The fine dust particles collect on the surface of the filter bag and the “cleaned” air passes to the top chamber and discharged through the outlet. When the “stop” button is depressed, the fan operation will cease and the cleaning cycle begin.
Once the fan has completed its run-down cycle, the shaker motor will start and filter cleaning operation will commence for a pre-set time of 30 seconds.
Discover More About the SF-1-S
