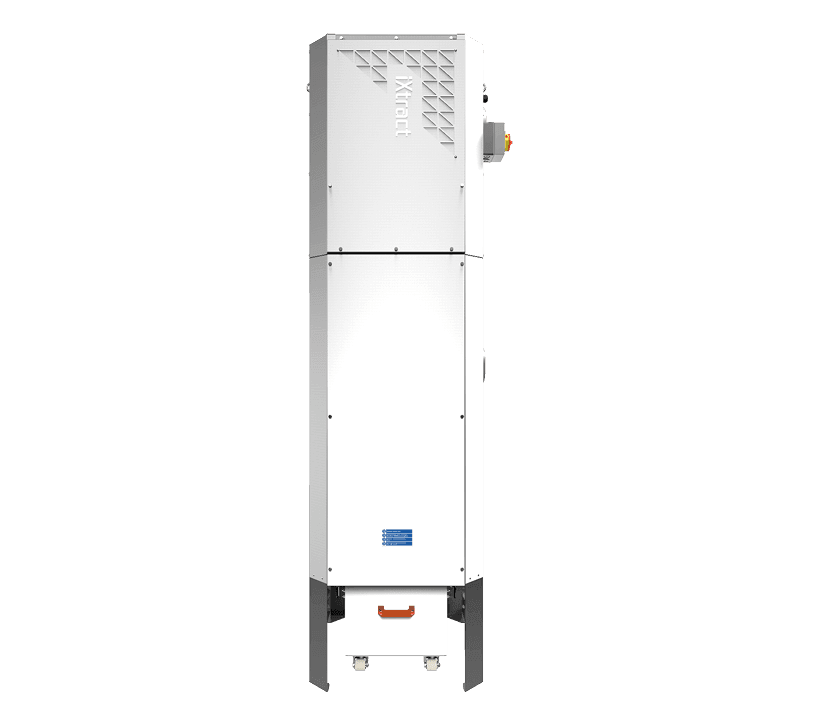

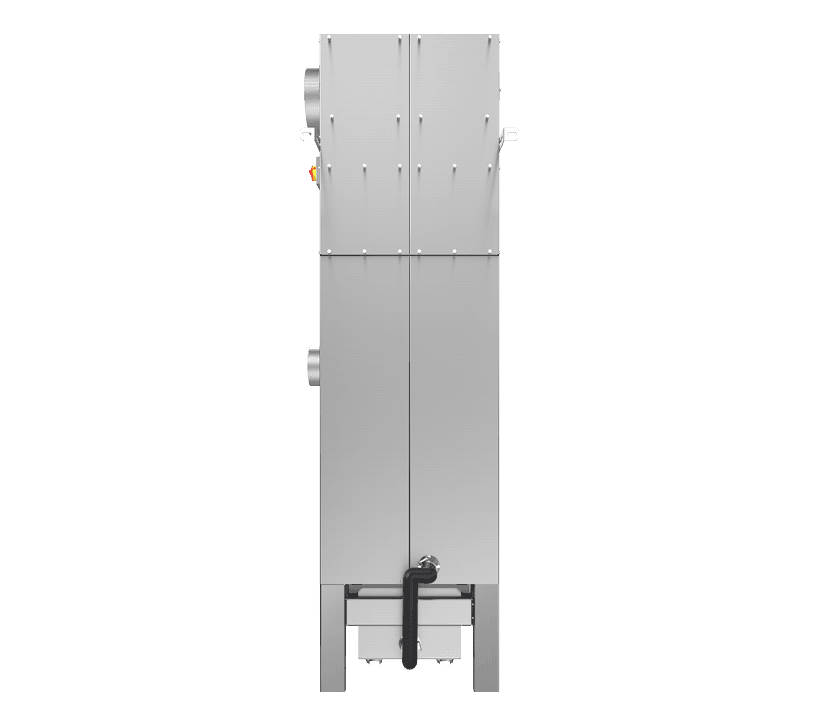

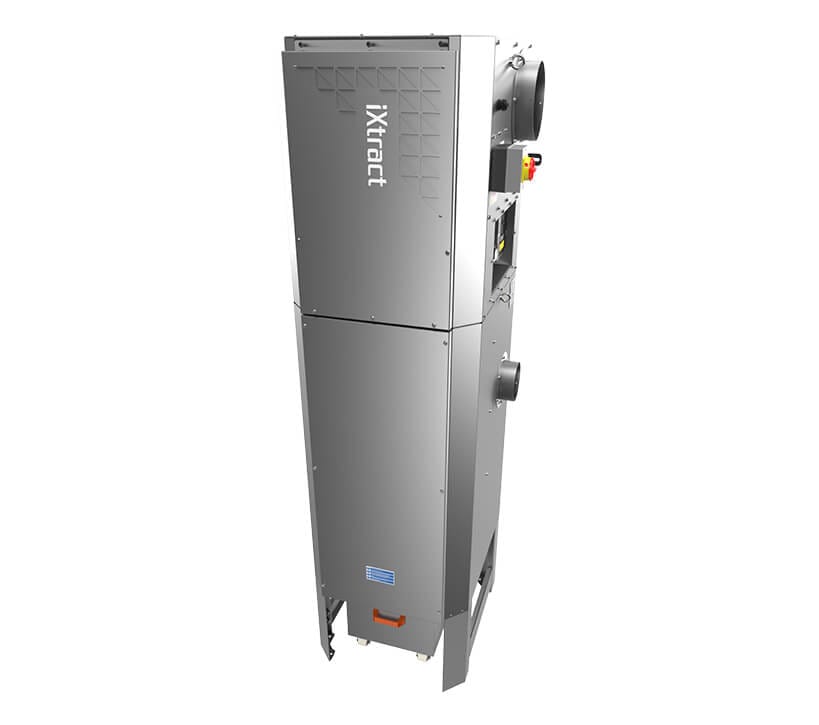

Compact Vertical Stainless Steel Reverse Pulse Filter Unit With Integrated Fan
Suitable for smaller work areas where space is limited.
Compact filtration unit with an integrated fan to combat hazardous dust and fume particulates.
Model
Want to know more?
Request PricingJump to:
Jump to:
Stainless Steel
Built from a choice of high-grade 304 or 316 stainless steel, this Compact Reverse Pulse Filter unit delivers exceptional corrosion resistance even in the most demanding environments.
Built in Fan
Integrated iXtract centrifugal fan set complete with a 1.5kW motor.
Continuous Operation
The reverse pulse cleaning system helps maintain filter performance by periodically dislodging and removing accumulated dust, extending the filter's lifespan and reducing downtime.
High Filtration Efficiency
Our range of filters offer excellent filtration efficiency, and are particularly effective at removing submicron particles, ensuring a clean and safe working environment. Filters sold separately.
Collection Bin
Heavy duty 65L collection bin with liner for easy waste disposal.
Control Panel
Recessed panel which provides easy, safe and convenient access to the pneumatic cleaning controls.
Filter
Fit nano-fibre cellulose filter cartridges to give up to a 34m2 filtration area, other filter options available. Filters sold separately.
Lifting Eyes
Built-in lifting eyes to assist with installation positioning.
Powder Coated Durable Paint
Units are stainless steel which delivers exceptional corrosion resistance even in the most demanding environments.
Filter Access Door
Easy access doors for regular filter replacement and maintenance.
Integrated Fan Option
Integrated iXtract centrifugal fan set complete with a 1.5kW motor.
Technical Specifications
Model
O&M Manual
Access the O&M Manual for this product in our customer area – iXtract hub.
Accessories
Explore our range of accessories available for the Compact Filter
Nano Fibre Celulose Filter – Vertical
Showing 6 of 7 products
Overview
Our Compact Reverse Pulse Filter units are designed to be as space saving as possible and can be used in a variety of environments and across multiple industries.
Their slim dimensions allows for installation in confined spaces, making them suitable for industries where space is limited.
This standalone integrated unit is an all-in-one dust and fume filtration solution that is ready to go.
Operation
The Compact Filter units utilise a clean on demand function. Once the filters have reached a desired pressure differential set point the controller will activate a solenoid valve that will in turn release a blast of compressed air down the centre of the filter cartridge.
This blast of compressed air will dislodge the contaminant that has settled on the outer surface of the filter. When the pressure deferential falls beneath the set secondary point the controller will cease cleaning.
Placing the filters in a vertical orientation along with gravitational pull ensures a higher efficiency when filtering larger, heavier particulates and volumes of dust.
Discover More About the RPF-V-1-SS-FAN-1.5
For pricing, more information or help with any of our vertical reverse pulse filter range then complete the form and one of our experts will be in touch to help.
