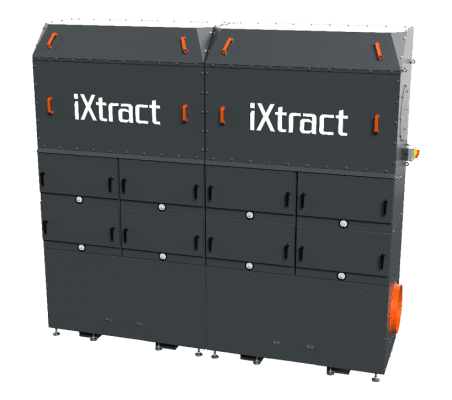

Oil Mist Filter Unit With Integrated Fan
Designed to contain metalworking fluids and mist.
iXtract’s range of Oil Mist Filters are the perfect LEV solution for those looking to filter hazardous mists and fumes that can often be found in metal working processes.
99.97% efficiency in filtering 0.3 microns particles.
Type
Want to know more?
Request PricingJump to:
Jump to:
Efficient Oil Removal
Our Oil Mist Filters utilise high-efficiency filtration technology to separate oil-based contaminants, preventing them from escaping into the atmosphere.
Built in Fan
A 3kW – 11kW F-series Fan is integrated with these Oil Mist Filter units, this creates an all-in-one mist and fumes capture solution that is ready to go.
Easy to Fit Filter
We have designed our oil mist filter systems so that our optional long lasting and effective HEPA filters can be easily and safely replaced.
Workplace Safety
As well as helping to remove oil mist from the air our oil mist filters help to reduce fluids accumulating on surfaces within the workspace which could cause slips and accidents.
Optional Hepa Filter
99.97% efficiency in filtering particles as small as 0.3 microns.
Primary Baffle
Disperses air and prevents larger oil particles from advancing.
Primary & Secondary Filters
Two stage filter process with a primary M6 coalescing cassette filter and a secondary F9 coalescing cassette filter.
Mesh Pre Filter
Washable mesh filter to separate larger particles from the air stream.
Filter Access Door
Easy access doors for easy filter replacement and general maintenance.
Pressure Indicators
Pressure differential gauge to monitor filter condition.
Outlet
Clean air ducting outlet.
Oil Collection Canister
Optional 8L waste oil container.
Fork Lift Pockets
Built in forklift pockets for ease of installation and positioning.
Technical Specifications
Type
O&M Manual
Access the O&M Manual for this product in our customer area – iXtract hub.
Data Sheet
Need to know more about this product? Download the full technical data sheet
Accessories
Explore our range of accessories available for Oil Mist Filters.
Showing 6 of 6 products
Overview
Our range of Oil Mist Filters have been designed to effectively capture and remove oil mists and other metalworking fluids from industrial environments, helping to keep work places and employees safe from the dangers of airborne oil mist.
Our integrated fan versions eliminate the need for an external fan, making it a truly all in one solution for removing oil mist.
Our static oil mist filters are available in a range from 2000m3/hr to 16000m3/hr and are available with optional integrated fan and HEPA filters.
Operation
Contaminated air enters the base via the dirty air inlet.
The base consists of an integrated primary baffle, removable washable mesh filter, all of which disperse the air and prevent larger oil particles from advancing.
The coalesced, condensed oil droplets collect in the base and are either discharged through a connected drain or collected in the optional oil canister.
The air then passes through a series of filters, each removing and decreasing particle sizes of contaminant, in an upward direction with the clean air being expelled from the top of the unit.
Oil Mist HEPA Module
A key benefit of the HEPA filter module is its ability to remove 99.97% of airborne particles as small as 0.3 microns, ensuring cleaner and healthier air. Available across our entire range, they are designed as a module to enable ease of installation across the range.
Please note that HEPA modules increase the Oil Mist Filter units’ overall height by 428mm and weight by 46kg (per module).
Discover More About the OMSF-2000-F
