Large Bin Capacity – Horizontal Reverse Pulse Filter

The clean on demand, particulate matter filtration unit.

Our comprehensive range of Reverse Pulse Filters are specifically designed to filter dust and fume particulates from a multitude of different industrial environments and processes.

These units features a larger 200L capacity bin and extended supporting legs to accommodate this larger waste collection bin.

Models

Want to know more?

Request Pricing

Jump to:

Extended Bin

We have modified our standard reverse pulse filter model to be supplied with a 200L bin and extended legs – meaning more waste can be collected, saving time on multiple trips.

Continuous Operation

iXtract Horizontal Reverse Pulse Filters are designed for continuous operation, ensuring that production processes can run without interruption. The reverse pulse cleaning system helps maintain filter performance by periodically dislodging and removing accumulated dust, extending the filter's lifespan and reducing downtime.

High Filtration Efficiency

Our range of filters offer excellent filtration efficiency, and are particularly effective at removing submicron particles, ensuring a clean and safe working environment. This high efficiency results in improved indoor air quality and reduced environmental impact. Filters sold separately.

Compact Footprint

Horizontal Reverse Pulse Filters are designed with a compact and space-efficient configuration. Their horizontal orientation allows for installation in limited space, making them suitable for industries where space is at a premium. This space-saving design can also reduce installation times.

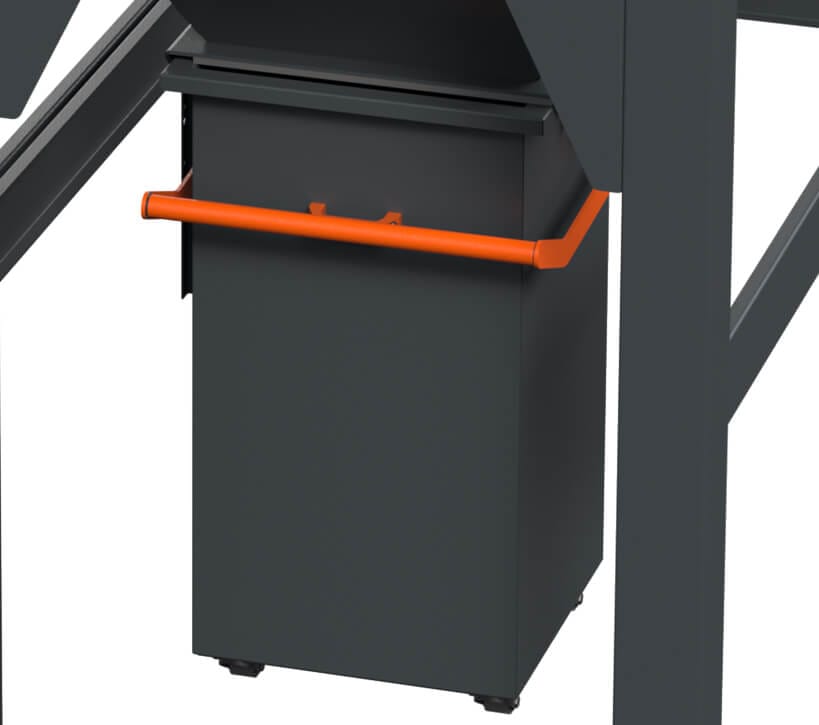

Large Collection Bin

Heavy duty 200L collection bin with castors for easy waste disposal.

Control Panel

Recessed panel which provides easy, safe and convenient access to the pneumatic cleaning controls.

Filters

Easily replaceable filter cartridges – multiple filters available for an array of processes.

Lifting Eyes

Built-in lifting eyes to assist with installation positioning.

Filter Access Door

Easy access doors for regular filter replacement and maintenance.

Powder Coated Durable Paint

All of our units are powder coated making it incredibly durable and long lasting.

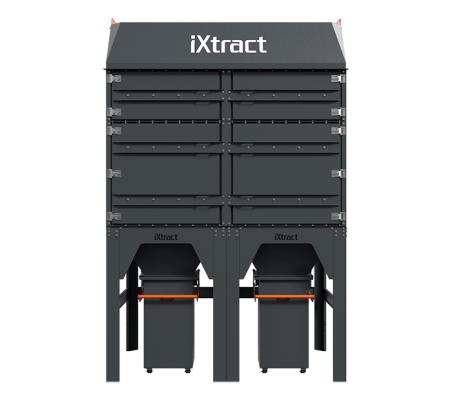

iXtract Reverse Pulse 12 Horizontal - Large Capacity - RPF-H-12-EXT - Front

Technical Specifications

Models

Number of Filters	2
Filtration Area	40m²* / 68m²**
Weight	602kg
Height	2720mm
Width	1200mm
Depth	1800mm
Bin Capacity	200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	4
Filtration Area	80m²* / 136m²**
Weight	770kg
Height	3230mm
Width	1200mm
Depth	1800mm
Bin Capacity	200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	6
Filtration Area	120m²* / 204m²**
Weight	834kg
Height	3740mm
Width	1200mm
Depth	1800mm
Bin Capacity	200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	8
Filtration Area	160m²* / 272m²**
Weight	1128kg
Height	4260mm
Width	1200mm
Depth	1800mm
Bin Capacity	200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	10
Filtration Area	200m²* / 340m²**
Weight	1304kg
Height	4780mm
Width	1200mm
Depth	1800mm
Bin Capacity	200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	12
Filtration Area	240m²* / 408m²**
Weight	1657kg
Height	3750mm
Width	2400mm
Depth	1800mm
Bin Capacity	2 x 200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	16
Filtration Area	320m²* / 544m²**
Weight	1959kg
Height	4260mm
Width	2400mm
Depth	1800mm
Bin Capacity	2 x 200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Accessories

Explore our range of accessories available for the horizontal reverse pulse filters

Bin Packers

Packers for bin - 3 mm

Explosion Panel – 2–4 Bank

Explosion relief panels for 2–4 filter Reverse Pulse Filter units.

Explosion Panel – 6–10 Bank

Explosion relief panels for 6–10 filter Reverse Pulse Filter units.

Inlet/Outlet Connection

Easy connect to a circular ducting system

Main Unit Packers

Main Unit Packers

200L Extended Bin

Reverse Pulse Filter - Horizontal - Accessory - RPF-BIN

Large capacity bin - must be used with extended leg version of the reverse pulse filters

90° Square to Square

Reverse Pulse Filter - Horizontal - Accessory - RPF-H-90DEG-STR

90 degree bend to square flange for changing direction of airflow for a reverse pulse filter system

Flameless Vent

Explosion flame catcher interior - RPF-H-EXS

Internal Explosion flame catcher for reverse pulse filters.

Nano Fibre Celulose Filter – Horizontal

Reverse Pulse Filter Accessory - RPF-H-FILTER-NF

Nano fibre cellulose filter for horizontal Reverse Pulse Filters

Polyester Filter – Horizontal

Reverse Pulse Filter Accessory - RPF-H-FILTER-PL

High Quality Dust Filter

Polyester Antistatic Filter – Horizontal

Polyester antistatic filter for reverse pulse filters

PTFE Filter – Horizontal

Reverse Pulse Filter Accessory - RPF-H-FILTER-PTFE

Teflon (PTFE) antistatic filter for reverse pulse filters

Square to Round

Square to Round transition fitting

Square Bags

Reverse Pulse Filter - Horizontal - Accessory - RPF-SB

Heavy Duty bags that sit inside collection bins for easy waste disposal for the reverse pulse filters

Non Return Valves

Designed to prevent overpressure or flame caused by a downstream explosion to propagate in the ducting system.

Heavy Wall Ducting

Reinforced flange ducting for Reverse Pulse Filter units.

Bespoke Frame

Bespoke frame for Reverse Pulse Filter Units

Explosion Vent Deflector

Showing 6 of 18 products

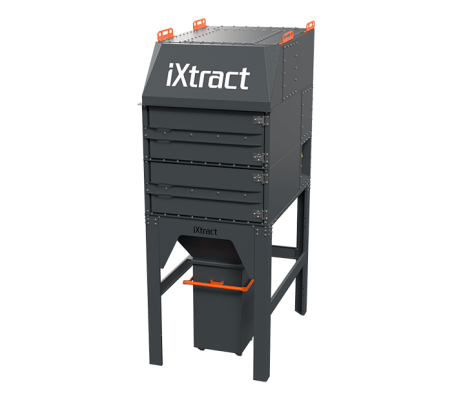

iXtract Reverse Pulse Horizontal - Large Capacity

Horizontal Reverse Pulse Filter

How Does a Reverse Pulse Filter Unit Work

Our Horizontal Reverse Pulse Filter units consist of a series of filter cartridges arranged horizontally within the main housing. Contaminated air is drawn through the filters where particles are captured on the outer surface.

As dust accumulates, the filter unit measures the pressure differential between the clean side of the filter and the dirty side. Once a programmed set point is reached, the filter unit then initiates a controlled blast of pneumatic airflow down the centre of each filter individually and sequentially.

This sudden burst of air dislodges the accumulated dust, causing it to fall downwards into the collection bin below. All this is carried out automatically without operator interaction.

The Options

All units are designed to be modular and have the ability to fix together easily.

iXtract Reverse Pulse Filters come with one top module as standard. This top module can be made available with an integrated top fan dependent on explosion relief requirements.

The middle module of iXtract Reverse Pulse Filter units houses cartridge filters and can accommodate 2 to 16 filters per unit.

The unit always comes with a hopper assembly. This assembly can feature an integrated fan, a rotary valve and includes a standard collection or extended bin for large volumes.
