Standard With Integrated Top Mounted Fan – Vertical Reverse Pulse Filter

The clean on demand, particulate matter filtration unit.

Vertically mounted filter cartridges ideal for heavier dust particulates.

Our wide range of vertical reverse pulse filters are specifically designed for heavier dust loading processes such as powder coating and shot-blasting.

Complete unit with integrated top mounted fan. The built in integrated fan makes this a convenient all-in-one filtration solution.

Model

Want to know more?

Request Pricing

Built in Fan

A 3kW – 11kW F-series Fan is integrated with these Reverse Pulse Filters units, this creates an all-in-one dust and fume filtration solution that is ready to go.

Continuous Operation

iXtract Verticle Reverse Pulse Filters are designed for continuous operation, ensuring that production processes can run without interruption. The reverse pulse cleaning system helps maintain filter performance by periodically dislodging and removing accumulated dust, extending the filter's lifespan and reducing downtime.

High Filtration Efficiency

Our range of filters offer excellent filtration efficiency, and are particularly effective at removing submicron particles, ensuring a clean and safe working environment. This high efficiency results in improved indoor air quality and reduced environmental impact. Filters sold separately.

Compact Footprint

Verticle Reverse Pulse Filters are designed with a compact and space-efficient configuration. Their verticle orientation allows for installation in limited space, making them suitable for industries where space is at a premium. This space-saving design can also reduce installation times.

Technical Specifications

Model

Number of Filters	2
Filtration Area	40m²* / 68m²**
Weight	593kg
Height	3571cm
Width	1042cm
Depth	1186cm
Bin Capacity	100L
Motor	3kW

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	4
Filtration Area	80m²* / 136m²**
Weight	869kg
Height	3518cm
Width	1685cm
Depth	1186cm
Bin Capacity	100L
Motor	5.5kW

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	6
Filtration Area	120m²* / 204m²**
Weight	1129kg
Height	3780cm
Width	2619cm
Depth	1186cm
Bin Capacity	100L
Motor	11kW

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Accessories

Explore our range of accessories available for the verticle reverse pulse filters

Polyester Filter

Durable filters made from 100% high-strength synthetic fibres.

Polyester Antistatic Filter

Polyester filters with an antistatic treatment to dissipate static electricity.

Teflon (PTFE) Filter

The PTFE coating enhances the filter’s resistance to moisture.

Nano-Fibre Cellulose Filter

Nano-fibre layer over cellulose, capturing sub-micron particles.

Explosion Panels

Choose from flat or domed explosion relief panels and flameless vents.

Explosion Vent Deflector

Provide optimum protection against explosions with these deflectors.

Non-Return Valves

Prevent overpressure and flame.

Main Unit & Bin Packers

3mm deep packers.

Inlet/Outlet Connection

Easily connects to a circular ducting system.

90° Square to Square

90° bend to square flange for changing direction of airflow for a reverse pulse filter unit.

Heavy Wall Ducting

Reinforced flange ducting for Reverse Pulse Filter units.

Bespoke Frame

Bespoke support frames for Reverse Pulse Filter Units.

10x Square Bags

Heavy duty bags to suit 100ltr and 200ltr bins.

Showing 6 of 13 products

Overview

iXtract’s Vertical Reverse Pulse Filter units consist of a series of filter cartridges arranged vertically within the main housing as opposed to our horizontal models making them ideal for heavier dust particulates.

As dust accumulates, the filter unit measures the pressure differential between the clean side of the filter and the dirty side. Once a programmed set point is reached the filter unit then initiates a controlled blast of pneumatic airflow down the centre of each filter individually and sequentially.

This sudden burst of air dislodges the accumulated dust, causing it to fall downwards into a collection hopper below. All this is carried out automatically without operator interaction.

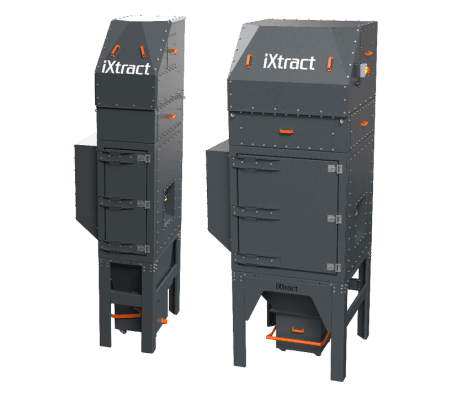

Standard With Integrated Top Mounted Fan – Vertical Reverse Pulse Filter Range

The Options

All units are modular and have the ability to fix together. Modules can be multiplied from 2–8 filters per unit in total.

iXtract Reverse Pulse Filters come with one top module as standard. This top module can be made available with an integrated top fan dependent on explosion relief requirements.

The unit always comes with a hopper assembly. This assembly can feature an integrated fan, a rotary valve and includes a standard collection or extended bin for large volumes.
