Large Bin Capacity – Vertical Reverse Pulse Filter

The clean on demand, particulate matter filtration unit.

Our comprehensive range of Reverse Pulse Filters are specifically designed to filter dust and fume particulates from a multitude of different industrial environments and processes.

Complete unit with larger bin capacity. These units features a larger 200L capacity bin and extended supporting legs to accommodate this larger waste collection bin.

Models

Want to know more?

Request Pricing

Jump to:

Extended Bin

We have modified our standard reverse pulse filter model to be supplied with a 200L bin and extended legs – meaning more waste can be collected, saving time on multiple trips.

Continuous Operation

iXtract Vertical Reverse Pulse Filters are designed for continuous operation, ensuring that production processes can run without interruption. The reverse pulse cleaning system helps maintain filter performance by periodically dislodging and removing accumulated dust, extending the filter's lifespan and reducing downtime.

High Filtration Efficiency

Our range of filters offer excellent filtration efficiency, and are particularly effective at removing submicron particles, ensuring a clean and safe working environment. This high efficiency results in improved indoor air quality and reduced environmental impact. Filters sold separately.

Compact Footprint

Vertical Reverse Pulse Filters are designed with a compact and space-efficient configuration. Their vertical orientation allows for installation in limited space, making them suitable for industries where space is at a premium. This space-saving design can also reduce installation times.

Lifting Eyes

Built-in lifting eyes to assist with installation and positioning.

Control Panel

Recessed panel which provides easy, safe and convenient access to the pneumatic cleaning controls.

Filters

Easily replaceable filter cartridges – multiple filters available for an array of processes.

Filter Access Door

Easy access doors for regular filter replacement and maintenance.

Large Collection Bin

Heavy duty 200L collection bin with castors for easy waste disposal.

Powder Coated Durable Paint

All of our units are powder coated in a two stage process making it incredibly durable and long lasting.

Clean Air Assembly

Periodically initiates a controlled blast of pneumatic airflow down the centre of each filter.

iXtract Reverse Pulse Filter - Vertical - Large Capacity - Back

Technical Specifications

Models

Number of Filters	2
Filtration Area	40m²* / 68m²**
Weight	578kg
Height	3800mm
Width	1042mm
Depth	1186mm
Bin Capacity	200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	4
Filtration Area	80m²* / 136m²**
Weight	784kg
Height	3800mm
Width	1638mm
Depth	1186mm
Bin Capacity	200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	6
Filtration Area	120m²* / 204m²**
Weight	975kg
Height	3800mm
Width	2169mm
Depth	1186mm
Bin Capacity	200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Number of Filters	8
Filtration Area	160m²* / 272m²**
Weight	1429kg
Height	3800mm
Width	2820mm
Depth	1186mm
Bin Capacity	2 x 200L
Motor	N/A

Filters sold separately
*Filtration area is based on standard polyester, antistatic and PTFE filters.
**Filtration area is based on nano-fibre cellulose filter.

Accessories

Explore our range of accessories available for the verticle reverse pulse filters

Polyester Filter

Durable filters made from 100% high-strength synthetic fibres.

Polyester Antistatic Filter

Polyester filters with an antistatic treatment to dissipate static electricity.

Teflon (PTFE) Filter

The PTFE coating enhances the filter’s resistance to moisture.

Nano-Fibre Cellulose Filter

Nano-fibre layer over cellulose, capturing sub-micron particles.

200L Extended Bin

200L large capacity bin.

10x Square Bags

Heavy duty bags to suit 100ltr and 200ltr bins.

Explosion Panels

Choose from flat or domed explosion relief panels and flameless vents.

Explosion Vent Deflector

Provide optimum protection against explosions with these deflectors.

Non-Return Valves

Prevent overpressure and flame.

Main Unit & Bin Packers

3mm deep packers.

Inlet/Outlet Connection

Easily connects to a circular ducting system.

90° Square to Square

90° bend to square flange for changing direction of airflow for a reverse pulse filter unit.

Heavy Wall Ducting

Reinforced flange ducting for Reverse Pulse Filter units.

Bespoke Frame

Bespoke support frames for Reverse Pulse Filter Units.

Showing 6 of 14 products

iXtract Reverse Pulse Filter - Vertical - Large Capacity

Overview

iXtract’s Vertical Reverse Pulse Filter units consist of a series of filter cartridges arranged vertically within the main housing as opposed to our horizontal models making them ideal for heavier dust particulates.

As dust accumulates, the filter unit measures the pressure differential between the clean side of the filter and the dirty side. Once a programmed set point is reached the filter unit then initiates a controlled blast of pneumatic airflow down the centre of each filter individually and sequentially.

This sudden burst of air dislodges the accumulated dust, causing it to fall downwards into a collection hopper below. All this is carried out automatically without operator interaction.

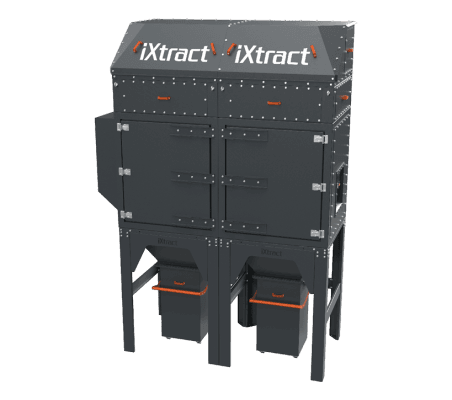

The Options

All units are modular and have the ability to fix together. Modules can be multiplied from 2–8 filters per unit in total.

iXtract Reverse Pulse Filters come with one top module as standard. This top module can be made available with an integrated top fan dependent on explosion relief requirements.

The unit always comes with a hopper assembly. This assembly can feature an integrated fan, a rotary valve and includes a standard collection or extended bin for large volumes.
