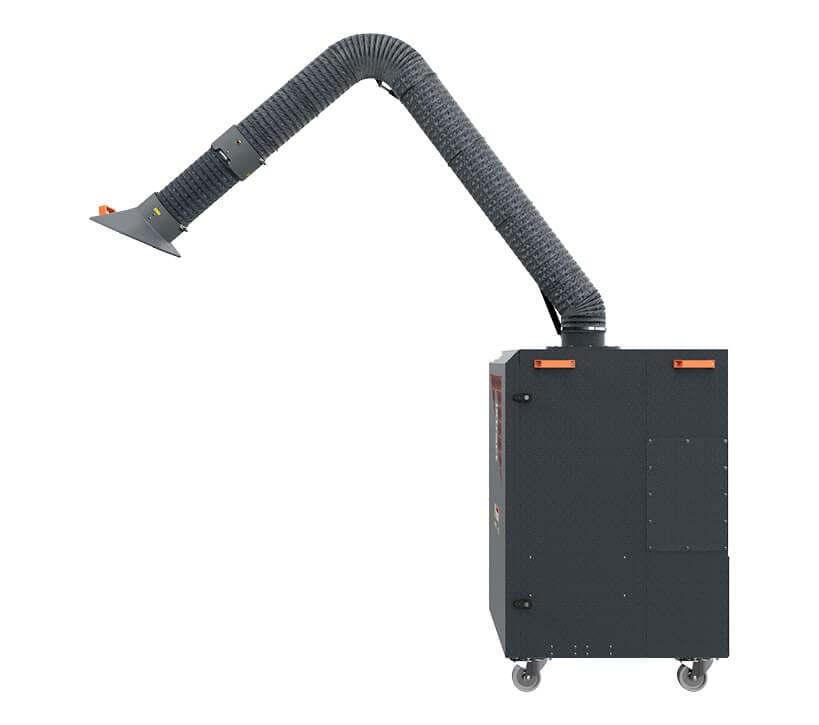

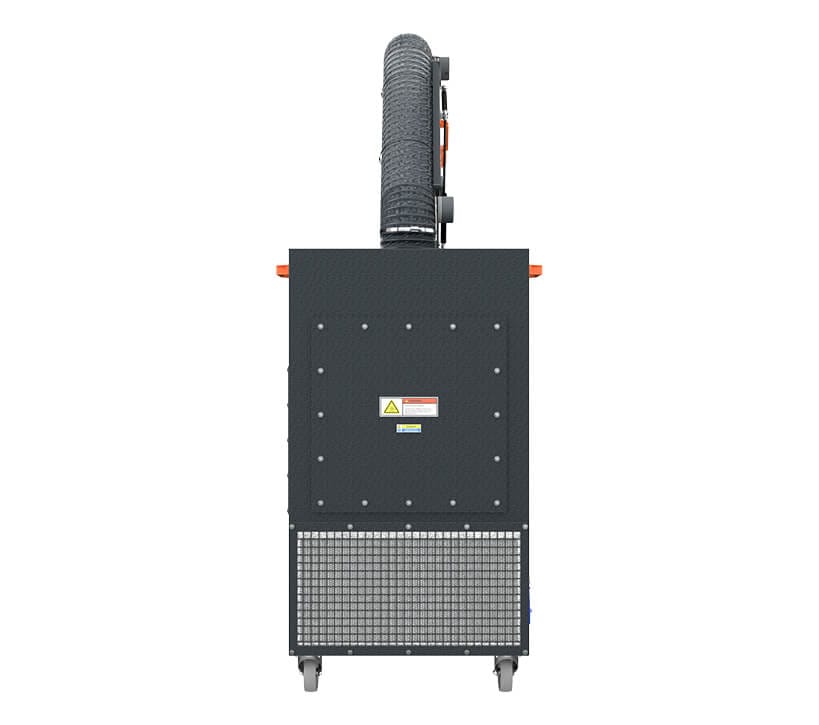

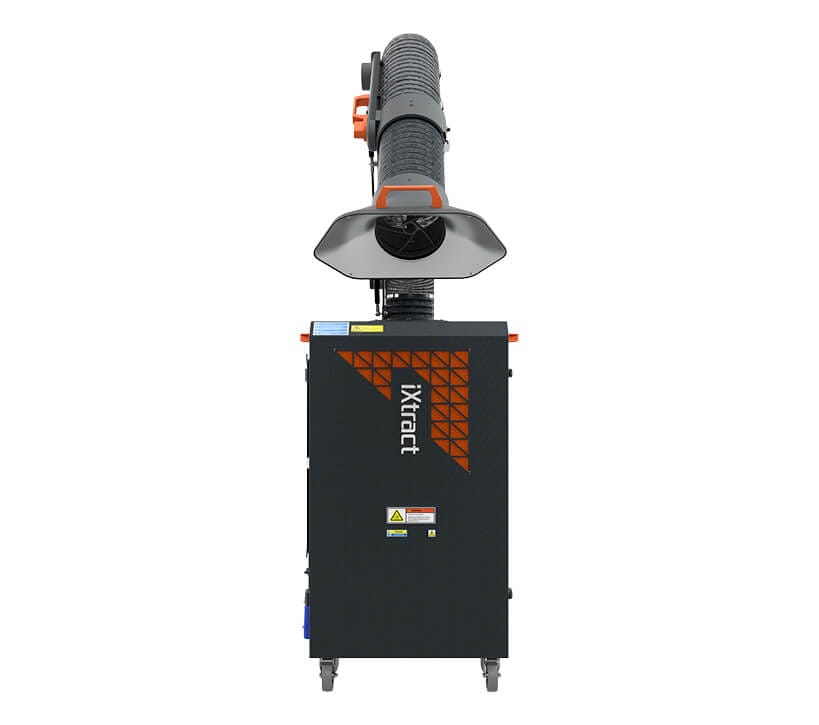

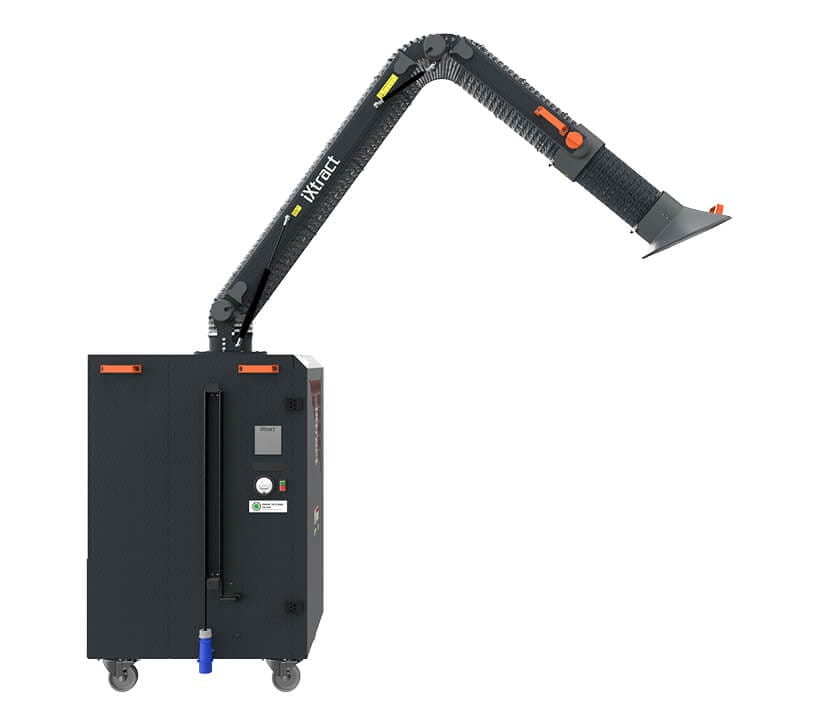

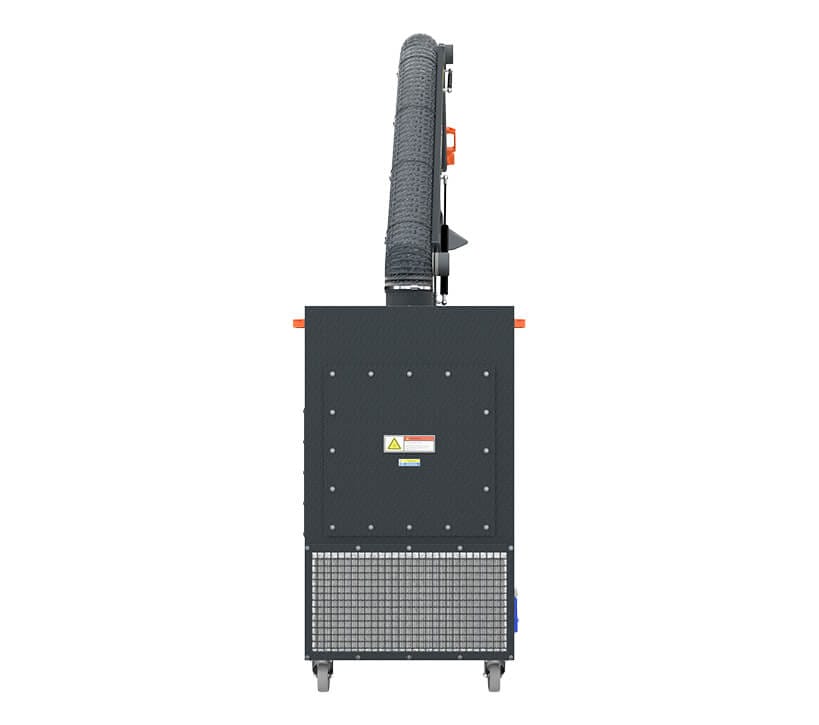

Single Arm Self-Cleaning Cartridge Mobile Filtration Unit
Maximise efficiency with our robust self-cleaning units, the ideal solution for high-frequency or flexible mobile set-ups.
Designed for demanding, high-frequency extraction applications, these mobile units combine a single 2m or 3m flexible extraction arm with automatic cartridge filter cleaning for reliable, efficient performance and reduced manual filter cleaning.
Models
Want to know more?
Request PricingJump to:
Jump to:
Self-Cleaning
Operating as a fully self-contained system, each unit features an integrated compressor that removes the need for external air lines.
Built in Fan
No need for any external fans making the units a truly portable all-in-one dust and fume extraction solution.
High Filtration Efficiency
The high quality nano-cellulose filter helps to eliminate harmful dust and fumes and along with the HEPA filter increases the air quality in industrial environments.
Compact Footprint
Our units have been designed to be as compact and mobile as possible but without compromising on its extraction ability.
Damper
Airflow shut off damper to isolate when not in use, with 10 degree increments for increased accuracy.

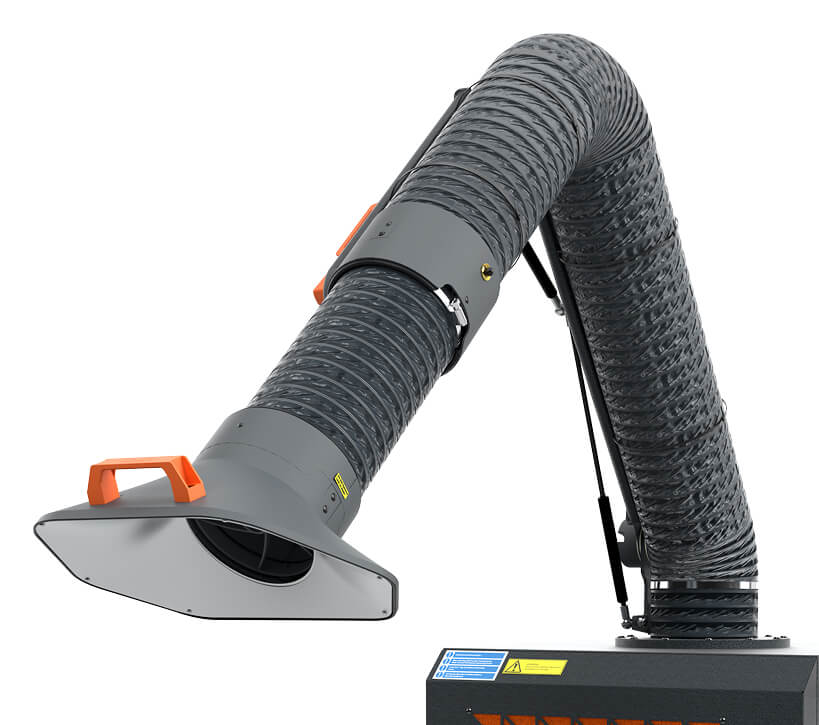

Lightweight & Flexible Arm
Lightweight extraction arm with a durable aluminium frame. The flexibility of the arm ensures the hood can be positioned at the source, enhancing workspace safety.
External Support Arm
External supporting joints provide better airflow efficiency, easier maintenance, enhanced durability, and improved flexibility.
Extraction Hood
Our aluminium and plastic hoods are designed for optimal extraction efficiency. These are interchangeable between hood types,
see accessories.
Filter
Equipped with a 14m2 disposable filter cartridge utilising advanced nano-cellulose fibre technology for effective particle capture.
The flush-mounted pressure gauge indicates filter condition.

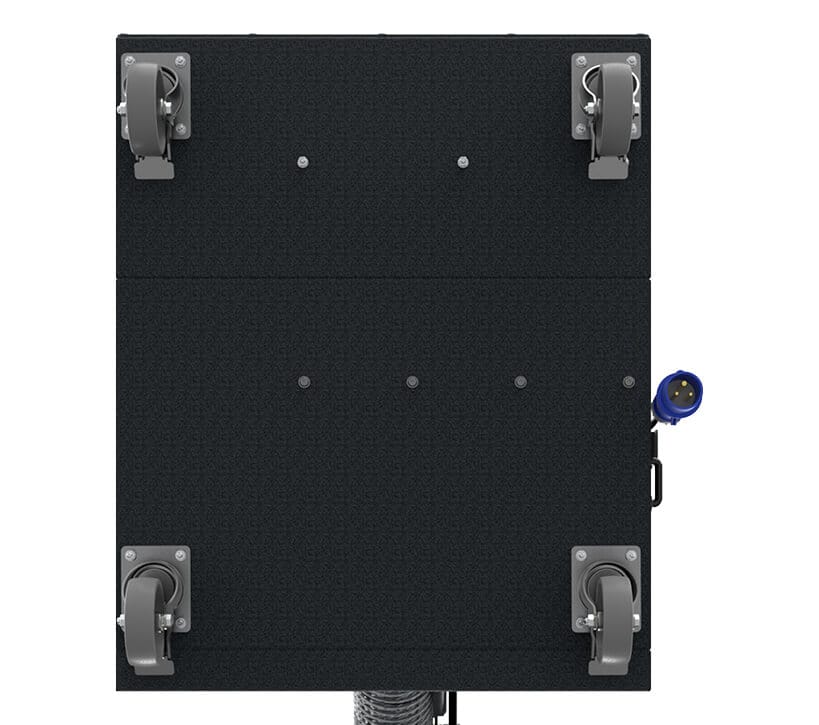

Easy Manoeuvrability
Equipped with swivel, lockable castors and robust handles for ease of manoeuvrability and to allow users to bring the extraction unit directly to the working area.
Powder Coated Durable Paint
All of our units are powder coated in a two stage process making it incredibly durable and long lasting.

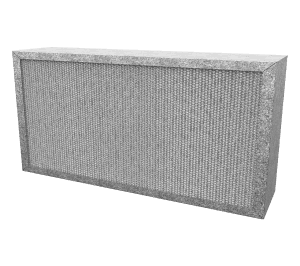

HEPA Filter
HEPA filter with a 99.97% efficiency in filtering particles as small as 0.3 microns.
Technical Specifications
Models
O&M Manual
Access the O&M Manual for this product in our customer area – iXtract hub.
Accessories
Explore the range of accessories available for our Single Arm Self-Cleaning Cartridge Mobile Filtration Units.
Showing 6 of 6 products
Overview
Our advanced automatic cleaning technology significantly extends cartridge filter life, this reduces costs and eliminates the need for frequent replacements.
Operating as a fully self-contained system, each unit features an integrated compressor that removes the need for external air lines.
For maximum flexibility, high-pressure cleaning pulses can be triggered manually by the operator ensuring zero downtime.
Operation
The integrated centrifugal extraction fan ensures the removal of contaminants at the source.
Contaminated air is conveyed via the extraction arm through the horizontal cartridge filter where particles are captured on the outer surface.
High-pressure cleaning pulses trigger automatically via a sensor driven cycle when dust accumulates on the filter, the unit initiates a controlled blast of pneumatic airflow down the centre of the filter.
This sudden burst of air dislodges the accumulated dust, causing it to fall downwards into the collection bin below. The clean air is then discharged via a grille at the back of the unit.
Featuring an integrated HEPA filter for further improved air quality.
Discover More About the MF-1000-2M
For pricing, more information or help with any of our Mobile Filtration range please complete the form and one of our experts will be in touch to help.
