Reverse Pulse Filter – Large Capacity with Integrated Top Mounted Fan – Vertical
The clean on demand, particulate matter filtration unit.
The iXtract vertical reverse pulse filter is an air filtration system designed to remove dust and particulate matter from industrial processes. It employs a reverse pulse cleaning mechanism, firing pulses of compressed air down the filter cartridges to dislodge and collect accumulated contaminants, ensuring continuous and efficient operation. The gravitational pull by placing the filters in a vertical position ensures higher efficiency when filtering larger particulates and volumes of dust.
Model
Want to know more?
Request Pricing
Built in Fan
Integrating our F-series Fans with our Reverse Pulse Filters creates an all in one dust and fume filtration solution that is ready to go.
Extended legs
We have modified our original reverse pulse filter model to be supplied with extended legs - meaning more waste can be collected - saving time on multiple trips.
High Filtration Efficiency
Our range of filters offer excellent filtration efficiency, and are particularly effective at removing submicron particles, ensuring a clean and safe working environment. This high efficiency results in improved indoor air quality and reduced environmental impact.
Continuous Operation
iXtract Verticle Reverse Pulse Filters are designed for continuous operation, ensuring that production processes can run without interruption. The reverse pulse cleaning system helps maintain filter performance by periodically dislodging and removing accumulated dust, extending the filter's lifespan and reducing downtime.
Technical Specifications
Model
O&M Manual
Access the O&M Manual for this product in our customer area – iXtract hub.
Accessories
Explore our range of accessories available for the verticle reverse pulse filters

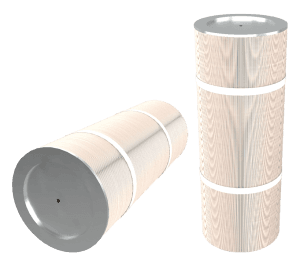

Nano Fibre Celulose Filter – Vertical
Showing 6 of 17 products
Reverse Pulse Filter
How Does a Reverse Pulse Filter Work
iXtract’s Vertical Reverse Pulse Filter units consist of a series of filter cartridges arranged vertically within the main housing as opposed to our horizontal models making them ideal for heavier dust particulates. As dust accumulates, the filter unit measures the pressure differential between the clean side of the filter and the dirty side. Once a programmed set point is reached the filter unit then initiates a controlled blast of pneumatic airflow down the centre of each filter individually and sequentially. This sudden burst of air dislodges the accumulated dust, causing it to fall downwards into a collection hopper below. All this is carried out automatically without operator interaction.
Discover More About the RPF-V-2-FAN-3-EXT
Model
Request Pricing

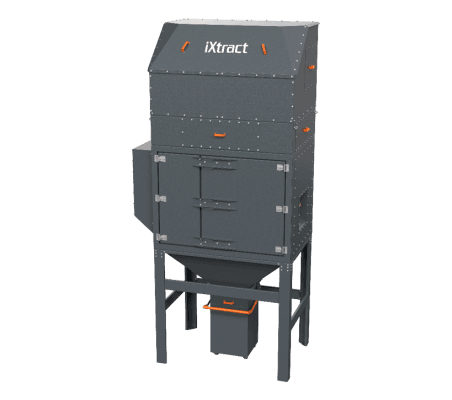

Large Capacity Reverse Pulse Filter with Integrated Top Mounted Fan
All units are modular and have the ability to fix together. Modules can be multiplied from 2–8 filters per unit in total. iXtract Reverse Pulse Filters come with one top module as standard. This top module can be made available with an integrated top fan dependent on explosion relief requirements. The unit always comes with a hopper assembly. This assembly features an integrated fan and an extended collection bin for large volumes.
